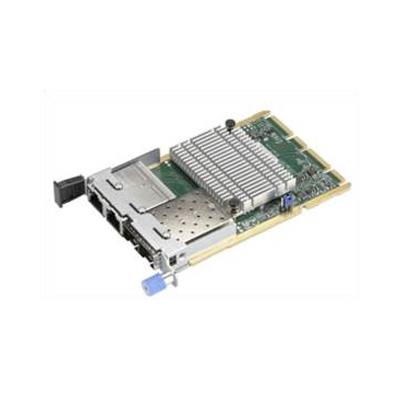

  2. Supermicro AOC-ATG-I2T2S X710-TM4 10Gps Ethernet Adapter Card 2x RJ45 and 2x SFP+ Connectors Advanced I/O Module (AIOM) OCP 3.0
Supermicro AOC-ATG-I2T2S X710-TM4 10Gps Ethernet Adapter Card 2x RJ45 and 2x SFP+ Connectors Advanced I/O Module (AIOM) OCP 3.0

Supermicro AOC-ATG-I2T2S X710-TM4 10Gps Ethernet Adapter Card 2x RJ45 and 2x SFP+ Connectors Advanced I/O Module (AIOM) OCP 3.0

  • Intel X710-TM4 Ethernet Controller

  • Advanced I/O Module (AIOM) Form Factor

  • Network Virtualization: VXLAN and NVGRE

  • 4x 10Gbps ports: 2x RJ45 and 2x SFP+ connectors

10Gps Ethernet Adapter Card, Based on the Intel X710-TM4 Controller, Designed To Support A Mixed Network Interface 2x RJ45 and 2x SFP+ Connectors, Data Transmission Rate: 10Gbps per port, Supports RJ-45 Category 6 and 6A cables, RoHS Compliant 6/6 - (AOC-ATG-I2T2S-O)

$ 281.50$ 281.50281.5USD

$ 281.50

Option not available

Contact us for volume discounts

    This combination does not exist.

    Add to Cart

    Supermicro Advanced I/O Modules (AIOM) is the latest form factor designed to provide a wide range of networking options as well as other I/O technologies.

    The AOC-ATG-i2T2S is one of the most flexible and scalable 4-port 10Gb network solutions in the market. Based on the Intel X710-TM4 controller, it is designed to support a mixed network interface 2x RJ45 and 2x SFP+ connectors, with performance-enhancing features and power management technologies.


    Key Features


    • Advanced I/O Module (AIOM) Form Factor

    • Intel X710-TM4 Ethernet Controller

    • 4x 10Gbps ports: 2x RJ45 and 2x SFP+ connectors

    • Network Virtualization: VXLAN and NVGRE

    • Energy Efficient Ethernet (EEE)

    • Intel Ethernet Flow Director

    • Data Plane Developer Kit for efficient packet processing (DPDK)

    • Asset Management Features

    • NC-SI for Remote Management

    • Supports RJ-45 Category 6 and 6A cables

    • Supports both Direct Attach Copper and Fiber Cables

    Extra Specifications for Supermicro AOC-ATG-I2T2S X710-TM4 10Gps Ethernet Adapter Card 2x RJ45 and 2x SFP+ Connectors Advanced I/O Module (AIOM) OCP 3.0

    Main Specifications
    Device TypeAdd-on Card
    Form FactorAdvanced I/O Module (AIOM)
    Dimensions (WxDxH)Card PCB dimensions: 76mm x 115mm (W x D)
    Networking
    Ports Qty4x 10Gbps ports: 2x RJ45 and 2x SFP+ connectors
    Controller TypeIntel X710-TM4 controller
    Virtualization FeaturesVirtual Machine Devices queues (VMDq), Single-Root I/O Virtualization (SR-IOV), VLAN, VXN and NVGRE, GENEVE
    Management FeaturesAsset Management support with thermal sensor, NC-SI for remote management, Preboot eXecution Environment (PXE), iSCSI remote boot
    Power
    PowerACPI compliant power management, PCI Express Active State Power Management (ASPM), Energy Efficient Ethernet (IEEE 802.3az)
    Power ConsumptionMaximum: 10W
    Miscellaneous
    Cables RequiredSFP+ direct attach twin-axial copper cables up to 5m, Fiber-optic cables (with required optional SFP+ transceivers), RJ-45 Category-6 up to 55m; Category-6A up to 100m
    RoHSRoHS Compliant 6/6
    Environmental Parameters
    Operating TemperatureStorage temperature: -40°C to 70°C (-40°F to 158°F)
    Storage humidity: 90% non-condensing relative humidity at 35°C

    Warranty:3 years, 120 days advance replacement (doa)
    Coverage:Replacement or repair
    Average Service Time:Overnight replacement for 120 days, 2 weeks afterward
    E-mail:returnservices@wiredzone.com

    If you need Technical Support for this item please contact:

    Provider:Supermicro
    Type of Support:FULL
    Phone No.:408-503-8000
    URL:Click here for Manufacturer Website
