| Add-on Card |

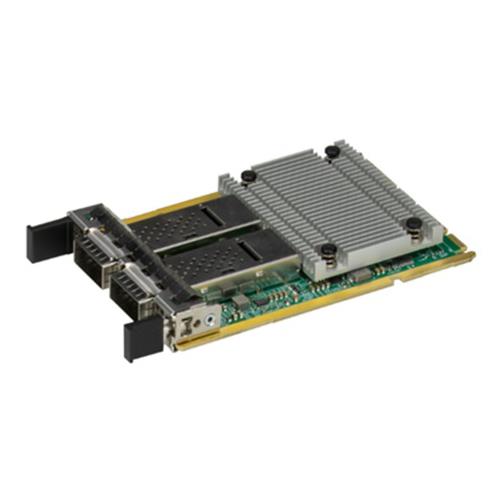

| Add-on Card | Supermicro® Advanced I/O Modules (AIOM) are the latest form factor designed to provide a wide range of networking options as well as other I/O technologies. The is one of the most feature rich and low power consumption 100GbE controllers in the market. Based on the Mellanox ConnectX-6 Dx controller with features such as VXLAN, NVGRE, RDMA, and others, it provides unparalleled density, performance, and functionality. The Supermicro® is the industry’s most secure and advanced cloud network interface card to accelerate mission-critical datacenter applications, such as security, virtualization, SDN/NFV, big data, machine learning, and storage. To order, contact your distributor. This product is only available through Supermicro. |
| Downloads |
| User's Guide | [ https://www.supermicro.com/about/policies/disclaimer_manuals.cfm?url=/manuals/other/AOC-A100G-m2CM.pdf ] |
| Datasheet | [ https://www.supermicro.com/manuals/other/datasheet-AOC-A100G-m2CM.pdf ] |
| Driver | Choose the latest CDR-NIC folder, and then click on Mellanox folder for driver [ https://www.supermicro.com/wdl/Networking_Drivers/ ] |
| Driver CD | Click on the latest CDR-NIC ISO file to download [ https://www.supermicro.com/wdl/Networking_Drivers/ ] |
| Specifications |
| Storage Accelerations: | NVMe over Fabric offloads for target |
| Storage protocols: iSER, NFSoRDMA, |
| SMB Direct, NVMe-oF, and more |
| T-10 Dif/Signature Handover |
| RDMA over Converged Ethernet: | RoCE v1/v2 |
| Zero-Touch RoCE: no ECN, no PFC |
| RoCE over overlay networks |
| IPsec over RoCE |
| Selective repeat |
| Programmable congestion control interface |
| GPUDirect® |
| Dynamically Connected Transport (DCT) |
| Burst buffer offload |
| Management and Control: | NC-SI, MCTP over SMBus and MCTP over PCI-E - Baseboard Management Controller interface |
| PLDM for Monitor and Control DSP0248 |
| PLDM for Firmware Update DSP026 |
| I2C interface for device control and configuration |
| Remote Boot: | Remote boot over iSCSI |
| Remote boot over Ethernet |
| UEFI support for x86 and Arm servers |
| PXE boot |
| Standards: | IEEE 802.3bs, 200 Gigabit Ethernet |
| IEEE 802.3cd, 50, 100 and 200 Gigabit Ethernet |
| IEEE 802.3bj, 802.3bm 100 Gigabit Ethernet |
| IEEE 802.3by, 25, 50 Gigabit Ethernet supporting all FEC modes |
| IEEE 802.3ba 40 Gigabit Ethernet |
| IEEE 802.3ae 10 Gigabit Ethernet |
| IEEE 802.3az Energy Efficient Ethernet (supports only “FastWake” mode) |
| IEEE 802.3ap based autonegotiation and KR startup |
| IEEE 802.3ad, 802.1AX Link Aggregation |
| IEEE 802.1Q, 802.1P VLAN tagsand priority |
| IEEE 802.1Qaz (ETS) |
| IEEE 802.1Qbb (PFC) |
| IEEE 802.1Qbg |
| 25/50 Ethernet Consortium “Low Latency FEC” for50GE/100GE/200GE PAM4 links |
| PCI Express Gen 3.0 and 4.0 |
| Power Consumption: | Maximum: 23.7W |
| Operating Conditions: | Storage temperature: -40°C to 70°C (-40°F to 158°F) |
| Storage humidity: 90% non-condensing relative humidity at 35°C |
| Physical Dimensions: | Advanced I/O Module (AIOM) Form Factor |
| Card PCB dimensions: 76mm x 115mm (W x D) |
