- Supermicro AOC-A100G-M2CG ConnectX-6 Dx 100GbE Network Adapter Dual QSFP28 Ports PCIe 4.0 AIOM OCP 3.0 Form Factor For GrandTwin FIO Systems

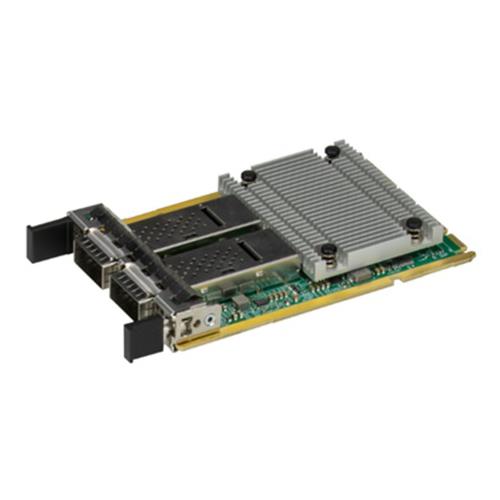

Supermicro AOC-A100G-M2CG ConnectX-6 Dx 100GbE Network Adapter Dual QSFP28 Ports PCIe 4.0 AIOM OCP 3.0 Form Factor For GrandTwin FIO Systems
PCIe Gen 4.0: Faster data speeds for improved performance
AIOM Form Factor: Space-saving design for easy server integration
Dual QSFP28 Connectors: Two 100Gbps ports for quick data transfer
Mellanox ConnectX-6 Dx 100GbE: Provides fast 100Gb Ethernet speeds
100Gb Ethernet Adapter Card, Advanced I/O Module (AIOM) Form Factor, Based on the Mellanox ConnectX-6 Dx Controller, Dual QSFP28 with Speed up to 100Gb per port, Bracket Included : 0.5U Height Bracket (For GrandTwin Front IO Only) - (AOC-A100G-M2CG-O)
Advanced I/O Module (AIOM) Form Factor
Mellanox ConnectX-6 Dx 100GbE controller
Host Interface: PCIe Gen 4.0 x16
Dual QSFP28 connectors
PCIe Gen 4.0
RDMA over Converged Ethernet
VXLAN, NVGRE and Geneve
Asset Management Features with thermal sensor
Network Controller Sideband Interface (NC-SI) for Remote Management
No Crypto
Extra Specifications for Supermicro AOC-A100G-M2CG ConnectX-6 Dx 100GbE Network Adapter Dual QSFP28 Ports PCIe 4.0 AIOM OCP 3.0 Form Factor For GrandTwin FIO Systems
| Specifications | ||
| RDMA over Converged Ethernet: | RoCE v1/v2 | |
| Zero-Touch RoCE: no ECN, no PFC | ||
| RoCE over overlay networks | ||
| IPsec over RoCE | ||
| Selective repeat | ||
| Programmable congestion control interface | ||
| GPUDirect® | ||
| Dynamically Connected Transport (DCT) | ||
| Burst buffer offload | ||
| Storage Accelerations: | NVMe over Fabric offloads for target | |
| Storage protocols: iSER, NFSoRDMA, | ||
| SMB Direct, NVMe-oF, and more | ||
| T-10 Dif/Signature Handover | ||
| Management and Control: | NC-SI, MCTP over SMBus and MCTP over PCI-E - Baseboard Management Controller interface | |
| PLDM for Monitor and Control DSP0248 | ||
| PLDM for Firmware Update DSP026 | ||
| I2C interface for device control and configuration | ||
| Remote Boot: | Remote boot over iSCSI | |
| Remote boot over Ethernet | ||
| UEFI support for x86 and Arm servers | ||
| PXE boot | ||
| Standards: | IEEE 802.3bs, 200 Gigabit Ethernet | |
| IEEE 802.3cd, 50, 100 and 200 Gigabit Ethernet | ||
| IEEE 802.3bj, 802.3bm 100 Gigabit Ethernet | ||
| IEEE 802.3by, 25, 50 Gigabit Ethernet supporting all FEC modes | ||
| IEEE 802.3ba 40 Gigabit Ethernet | ||
| IEEE 802.3ae 10 Gigabit Ethernet | ||
| IEEE 802.3az Energy Efficient Ethernet (supports only “FastWake” mode) | ||
| IEEE 802.3ap based autonegotiation and KR startup | ||
| IEEE 802.3ad, 802.1AX Link Aggregation | ||
| IEEE 802.1Q, 802.1P VLAN tagsand priority | ||
| IEEE 802.1Qaz (ETS) | ||
| IEEE 802.1Qbb (PFC) | ||
| IEEE 802.1Qbg | ||
| 25/50 Ethernet Consortium “Low Latency FEC” for50GE/100GE/200GE PAM4 links | ||
| PCI Express Gen 3.0 and 4.0 | ||
| Power Consumption: | Maximum: 23.7W | |
| Operating Conditions: | Storage temperature: -40°C to 70°C (-40°F to 158°F) | |
| Storage humidity: 90% non-condensing relative humidity at 35°C | ||
| Physical Dimensions: | Advanced I/O Module (AIOM) Form Factor | |
| Card PCB dimensions: 76mm x 115mm (W x D) | ||
| Add-on Card | ||
| Add-on Card | Supermicro® Advanced I/O Modules (AIOM) are the latest form factor designed to provide a wide range of networking options as well as other I/O technologies. The is one of the most feature rich and low power consumption 100GbE controllers in the market. Based on the Mellanox ConnectX-6 Dx controller with features such as VXLAN, NVGRE, RDMA, and others, it provides unparalleled density, performance, and functionality. The Supermicro® is the industry’s most secure and advanced cloud network interface card to accelerate mission-critical datacenter applications, such as security, virtualization, SDN/NFV, big data, machine learning, and storage. To order, contact your distributor. This product is only available through Supermicro. | |
| Downloads | ||
| User's Guide | [ https://www.supermicro.com/about/policies/disclaimer_manuals.cfm?url=/manuals/other/AOC-A100G-m2CM.pdf ] | |
| Datasheet | [ https://www.supermicro.com/manuals/other/datasheet-AOC-A100G-m2CM.pdf ] | |
| Driver | Choose the latest CDR-NIC folder, and then click on Mellanox folder for driver [ https://www.supermicro.com/wdl/Networking_Drivers/ ] | |
| Driver CD | Click on the latest CDR-NIC ISO file to download [ https://www.supermicro.com/wdl/Networking_Drivers/ ] | |
| Warranty: | 3 years, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
