Supermicro AS-2115GT-HNTF GrandTwin A+ 2U Barebone 4-Node Single AMD EPYC 9004 4th Generation Processors
• HPC
• Cloud Gaming
• MEC (Multi-Access Edge Computing)
• Multi-Purpose CDN
• High-availability Cache Cluster
• Telco Edge Cloud
• EDA (Electric Design Automation)
• Mission Critical Web Applications
Barebone 2U Rackmount SuperServer Four Nodes, Each Node Supports: Single Socket SP5, Supporting AMD EPYC 9004 4th Generation Processors, Chipset, Up to 3TB in 12 DIMM slots, RDIMM, 4x 2.5in Hot-swap NVMe/SATA Drive Bays (4x 2.5in NVMe Hybrid), 2 M.2 NVMe OR 2 M.2 SATA3, Network Connectivity : Via IO Module, 1 RJ45 Dedicated BMC LAN port, 2200W Power Supply - (CSE-GT214BF-R2K21BP + H13SST-G) - AS -2115GT-HNTF
1. Single AMD EPYC™ 9004/9005* Series Processors (*AMD EPYC™ 9005 series drop-in support requires board revision 2.x)
2. Supports up to DDR5 12 DIMM slots (1DPC), speed up to 6400 MT/s (Please check System Memory Section for detail)
3. Flexible bays for either Storage or AIOM / OCP 3.0 slots

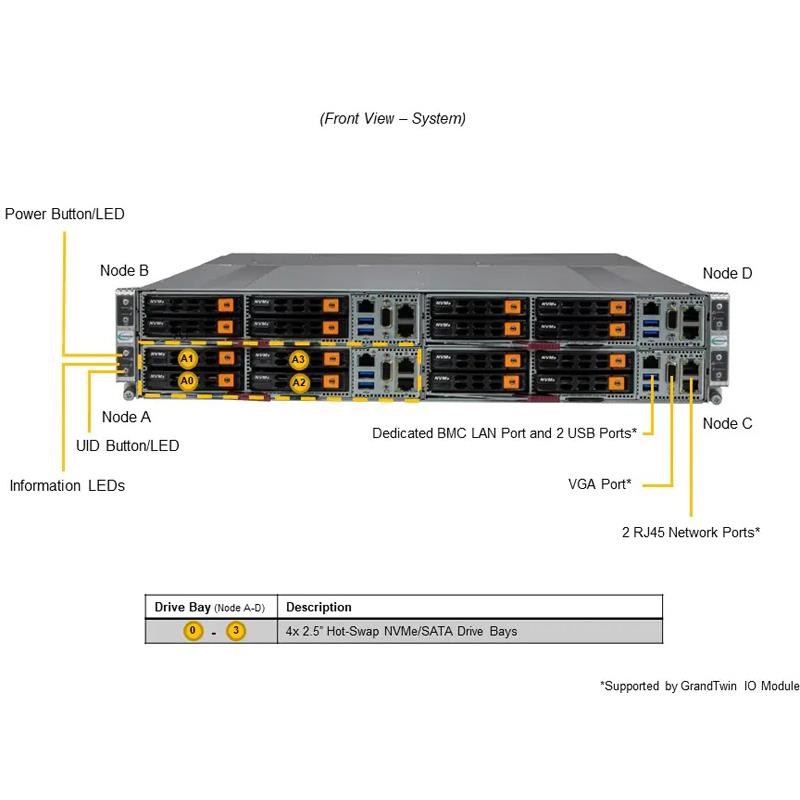

4. Integrated GrandTwin I/O module with BMC, 2 USB, VGA and dual 10GbE or 25GbE
5. Up to 4 Hot-swap 2.5" NVMe/SATA drives
6. Dual 2200W (1+1) Redundant Titanium Level power supplies (Power supply full redundancy based on configuration and application load)
Extra Specifications for Supermicro AS-2115GT-HNTF GrandTwin A+ 2U Barebone 4-Node Single AMD EPYC 9004 4th Generation Processors
| System BIOS | ||
| BIOS Type | AMI 32MB Flash ROM | |
| Management | ||
| Software | SuperCloud Composer | |
| Supermicro Intelligent Mgmt (BMC Resources) | ||
| Supermicro IPMI Utilities | ||
| Supermicro Diagnostics Offline (SDO) | ||
| Supermicro Thin-Agent Service (TAS) | ||
| Supermicro Power Manager (SPM) | ||
| Supermicro Update Manager (SUM) | ||
| Supermicro Server Manager (SSM) | ||
| Supermicro Server Mgmt (Redfish® API) | ||
| SuperDoctor® 5 (SD5) | ||
| PC Health Monitoring | ||
| Voltage | Voltage, VBAT, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, VRM temperature, CPU thermal trip support, 1.8V standby | |
| Temperature | Monitoring for CPU and chassis environment | |
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Front Panel | ||
| Buttons | Power On/Off button | |
| UID button | ||
| LEDs | Network activity LEDs | |
| Power status LED | ||
| HDD activity LED | ||
| Universal Information (UID) LED | ||
| Power Supply | ||
| Certification | Titanium Level | |
| Dimension (W x H x L) | 106 x 84 x 245 mm | |
| AC Input | 100-127Vdc (1200W for the Rest of the World) | |
| 200-220Vdc (1800W for the Rest of the World) | ||
| 200-220Vdc (2090W for North America - UL & cUL) | ||
| 220-230Vdc (1980W for the Rest of the World) | ||
| 220-240Vdc (2200W for North America - UL & cUL) | ||
| 230-240Vdc (2090W for the Rest of the World) | ||
| Product SKUs | ||
| Product SKUs | AS -2115GT-HNTF | |
| Motherboard | ||
| Motherboard | Super H13SST-G | |
| Processor (per Node) | ||
| CPU | Single Socket SP5 | |
| AMD EPYC™ 9004 Series Processor | ||
| Support CPU TDP up to 360W * | ||
| Note | *Certain CPUs with high TDP may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization | |
| System Memory (per Node) | ||
| Memory | Memory Type: 4800MHz ECC DDR5 RDIMM | |
| Memory Capacity: 12 DIMM slots | ||
| Up to 3TB: 12x 256 GB DRAM | ||
| On-Board Devices (per Node) | ||
| Chipset | AMD SP5 | |
| Network Connectivity | Via IO Module | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Input / Output (per Node) | ||
| LAN | 1 RJ45 Dedicated BMC LAN port | |
| USB | 2 USB 3.0 port(s) (2 USB) | |
| Video | 1 VGA port(s) | |
| Chassis | ||
| Form Factor | 2U Rackmount | |
| Model | CSE-GT214BF-R2K21BP | |
| Dimensions and Weight | ||
| Height | 3.46" (88mm) | |
| Width | 17.67" (449mm) | |
| Depth | 28" (711.2mm) | |
| Package | 9.76" (H) x 24.65" (W) x 45.28" (D) | |
| Weight | Net Weight: 68 lbs (30.8 kg) | |
| Gross Weight: 88 lbs (39.9 kg) | ||
| Available Color | Black front & sliver body | |
| Expansion Slots (per Node) | ||
| PCI-Express (PCIe) | 1 PCIe 5.0 x16 LP slot(s) | |
| Drive Bays / Storage (per Node) | ||
| Hot-swap | 4x 2.5" hot-swap NVMe/SATA drive bays (4x 2.5" NVMe hybrid) | |
| M.2 | 2 M.2 NVMe OR 2 M.2 SATA3 | |
| System Cooling | ||
| Air Shroud | 1 per node Air Shroud(s) | |
| Operating Environment | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) | ||
| Operating Relative Humidity: 8% to 80% (non-condensing) | ||
| Non-operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Front AIOM Kit | MCP-220-21404-0N | $ 24.00 | 1 | GT214 FIO AIOM cage(includes 1 dummmy bracket) | ||
| Front AIOM Kit | CBL-OTHR-1115 | $ 25.00 | 1 | 2x15 to 2x15,18cm,28AWG,1A/pin | ||
| Front AIOM Kit | CBL-MCIO-1218M5-1 • | 2 | MCIO x8 (STR to STR),18CM,85OHM | |||
| Front AIOM Kit | AOM-AIOM-2X8-G5-P | 1 | AIOM adaptor board (cable solution), PCIe Gen-5 | |||
| GrandTwin I/O Module | AOC-GTG-I2T | $ 200.50 | 1 | Grand Twin I/O card 2-Port 10GbE RJ45, Intel Carlsville | ||
| GrandTwin I/O Module | AOC-GTG-B2T | $ 203.50 | 1 | Grand Twin I/O card 2-Port 10GbE RJ45, Broadcom BCM57416 | ||
| GrandTwin I/O Module | AOC-G25G-M2S | $ 196.00 | 1 | Grand Twin I/O card 2-Port 25GbE SFP28, Mellanox CX-4 | ||
| NVMe Kit (2 drives) | MCP-220-00167-0B • | 2 | Gen 3 2.5-inch Tool-less NVMe drive tray | |||
| NVMe Kit (2 drives) | CBL-MCIO-1218M5-1 • | 1 | MCIO x8 (STR to STR),18CM,85OHM | |||
| NVMe Kit (2 drives) | CBL-PWEX-1131-20 | 1 | MicroHi (2x2 to 2x2), PH3.0, 20cm, 9.5A/p, 18AWG | |||
| NVMe Kit (2 drives) | BPN-NVME5-826N-B2B | $ 0.00 | 1 | 2-Port PCIe Gen 5 U.2 NVMe SSD Storage Backplane | ||
| NVMe Kit (4 drives) | MCP-220-00167-0B • | 4 | Gen 3 2.5-inch Tool-less NVMe drive tray | |||
| NVMe Kit (4 drives) | CBL-PWEX-1131-20 | 2 | MicroHi (2x2 to 2x2), PH3.0, 20cm, 9.5A/p, 18AWG | |||
| NVMe Kit (4 drives) | CBL-MCIO-1218M5-1 • | 2 | MCIO x8 (STR to STR),18CM,85OHM | |||
| NVMe Kit (4 drives) | BPN-NVME5-826N-B2B | $ 0.00 | 2 | 2-Port PCIe Gen 5 U.2 NVMe SSD Storage Backplane | ||
| SATA Kit (2 Drives) | BPN-SAS3-826TQ-B2B | $ 73.50 | 1 | 2-Port 12Gbps Backplane for 2x2.5" SAS/SATA HDD/SSD | ||
| SATA Kit (2 Drives) | CBL-PWEX-0990Y-20 | $ 23.00 | 1 | MicroFit 2x4,PH3.0 to 2 1X4,PH5.08, 20cm, 4A/pin,20AWG | ||
| SATA Kit (2 Drives) | CBL-MCIO-1217REQT4S2-85 | $ 36.00 | 1 | MCIO X8/RE to 4 SATA+2 SB, 17/10cm, 85Ohm | ||
| SATA Kit (2 Drives) | MCP-220-00147-0B • | 2 | Black gen-3 hot-swap 2.5" Tool-less HDD tray | |||
| SATA Kit (4 Drives) | MCP-220-00147-0B • | 4 | Black gen-3 hot-swap 2.5" Tool-less HDD tray | |||
| SATA Kit (4 Drives) | CBL-MCIO-1217REQT4S2-85 | $ 36.00 | 1 | MCIO X8/RE to 4 SATA+2 SB, 17/10cm, 85Ohm | ||
| SATA Kit (4 Drives) | CBL-PWEX-0990Y-20 | $ 23.00 | 1 | MicroFit 2x4,PH3.0 to 2 1X4,PH5.08, 20cm, 4A/pin,20AWG | ||
| SATA Kit (4 Drives) | BPN-SAS3-826TQ-B2B | $ 73.50 | 2 | 2-Port 12Gbps Backplane for 2x2.5" SAS/SATA HDD/SSD |
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | 1 year of overnight replacement |
