- Supermicro SYS-740GP-TNRBT GPU 4U Full-Tower Barebone Dual Intel Xeon Scalable Processors 3rd Generation

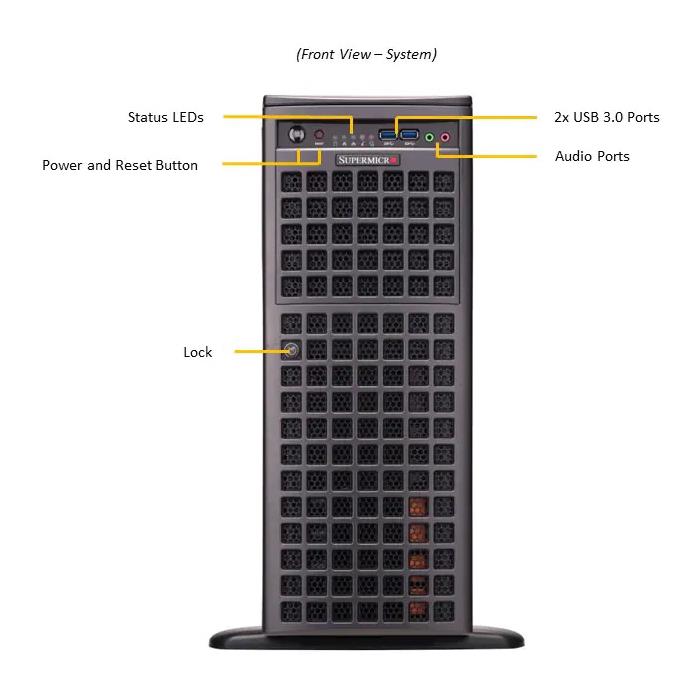

Supermicro SYS-740GP-TNRBT GPU 4U Full-Tower Barebone Dual Intel Xeon Scalable Processors 3rd Generation
• High Performance Computing
• AI/Deep Learning Training
Barebone 4U Rackmountable Tower Workstation, Supports Dual Socket P+ (LGA-4189), Supporting Intel Xeon Scalable Processors 3rd Generation. Up to 6TB in 16 DIMM slots, L/RDIMM (Up to 6TB: 8x 512 GB PMem), Chipset: Intel C621A, On-Board: SATA3 (6Gbps), RAID 0/1/5/10 support, Supported GPU: NVIDIA A100,A40, A30 and RTX A6000, 8x 3.5in Hot-swap NVMe/SATA/SAS Support drive bays (4x 2.5in NVMe hybrid), 2 M.2 NVMe OR 2 M.2 SATA3, Network Connectivity: Dual LAN with Broadcom BCM57416 10GBase-T, Integrated IPMI 2.0 and KVM with Dedicated LAN, 2200W Power Supply - (SYS-740GP-TNRBT + X12DPG-QBT6)
1. 16 DIMM Slots; Up to 4TB DRAM; Up to 6TB Intel® Optane™ Persistent Memory ; 3200/2933/2666 ECC DDR4 LRDIMM;RDIMM; Intel® Optane™ Persistent Memory 200 series
2. 4 PCIe 4.0 x16 (double-width) slots, 2 PCIe 4.0 x16 (single-width) slots, 1 PCIe 4.0 x8 LP
3. Total 8x 3.5" Hot-swap drive bays Up to 8 NVMe drives (4 NVMe drives supported by default) 2 M.2 NVMe or SATA for boot drive only
4. 4 Removable heavy duty fans w/ Optimal Fan Speed Control
5. 2x 2200W redundant Titanium level power supplies
Extra Specifications for Supermicro SYS-740GP-TNRBT GPU 4U Full-Tower Barebone Dual Intel Xeon Scalable Processors 3rd Generation
| Motherboard | ||
| Motherboard | Super X12DPG-QBT6 | |
| Processor | ||
| CPU | 3rd Gen Intel® Xeon® Scalable processors | |
| Support CPU TDP 270W | ||
| Dual Socket P+ (LGA-4189) | ||
| Cores | Up to 40C/80T; Up to 60MB Cache | |
| System Memory | ||
| Memory | Memory Capacity: 16 DIMM slots | |
| Memory Type: 3200/2933/2666MHz ECC DDR4 RDIMM/LRDIMM | ||
| Intel® Optane™ persistent memory 200 series | ||
| Up to 4TB: 16x 256 GB DRAM | ||
| Up to 6TB: 8x 512 GB PMem | ||
| Memory Voltage | 1.2 V | |
| Error Detection | ECC | |
| On-Board Devices | ||
| SATA | SATA3 (6Gbps); RAID 0/1/5/10 support | |
| Chipset | Intel® C621A | |
| Network Connectivity | 2x 10GbE BaseT with Broadcom BCM57416 | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Input / Output | ||
| Video | 1 VGA port(s) | |
| System BIOS | ||
| BIOS Type | AMI 32MB SPI Flash EEPROM | |
| Management | ||
| Software | Watch Dog | |
| NMI | ||
| KVM with dedicated LAN | ||
| Redfish API | ||
| SuperDoctor® 5 | ||
| Intel® Node Manager | ||
| IPMI 2.0 | ||
| SUM | ||
| SSM | ||
| SPM | ||
| OOB Management Package (SFT-OOB-LIC ) | ||
| Power Configurations | Power-on mode for AC power recovery | |
| ACPI Power Management | ||
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory | |
| 7 +1 Phase-switching voltage regulator | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | Full-Tower | |
| Model | CSE-747BTS-R2K20BP | |
| Dimensions and Weight | ||
| Height | 18.1" (460mm) | |
| Width | 7" (178mm) | |
| Depth | 26.5" (673mm) | |
| Package | 12.7" (H) x 27" (W) x 37.5" (D) | |
| Weight | Gross Weight: 57 lbs (25.85 kg) | |
| Net Weight: 52.9 lbs (24 kg) | ||
| Available Color | black | |
| Front Panel | ||
| Buttons | System Reset | |
| Power On/Off | ||
| LEDs | System Overheat / Fan Fail LED | |
| HDD activity | ||
| Power On | ||
| Network activity | ||
| Drive Bays / Storage | ||
| Hot-swap | 8x 3.5" hot-swap NVMe/SATA/SAS Support drive bays (4x 2.5" NVMe hybrid) | |
| M.2 | 2 M.2 NVMe OR 2 M.2 SATA3 | |
| System Cooling | ||
| Fans | 4 heavy duty fans with optimal fan speed control | |
| Power Supply | ||
| Dimension (W x H x L) | 76 x 40 x 336 mm | |
| AC Input | 50-60Hz | |
| +12V | Max: 150A / Min: 0A (200Vac-220Vac) | |
| Max: 165A / Min: 0A (220Vac-230Vac) | ||
| Max: 100A / Min: 0A (100Vac-127Vac) | ||
| Max: 183.3A / Min: 0A (220Vac-240Vac) | ||
| Max: 174.17A / Min: 0A (230Vac-240Vac) | ||
| 5V SB | Max: 1A / Min: 0A | |
| Output Type | Gold Finger Connector | |
| Certification | Titanium Level | |
| Total Output Power | 1200W : 100 - 127 Vac | |
| 1800W : 200 - 220 Vac | ||
| 1980W : 220 - 230 Vac | ||
| 2200W : 220 - 240 Vac (for UL/cUL use only) | ||
| 2090W : 230 - 240 Vdc (for CCC only) | ||
| 2090W : 230 - 240 Vac | ||
| Operating Environment | ||
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Product SKUs | ||
| Product SKUs | SYS-740GP-TNRBT | |
| GPU | ||
| Supported GPU | NVIDIA A100,A40, A30 and RTX A6000 | |
| CPU-GPU Interconnect | PCIe 4.0 x16 CPU-to-GPU Interconnect | |
| GPU-GPU Interconnect | PCIe | |
| Expansion Slots | ||
| PCI-Express (PCIe) | 1 PCIe 4.0 x8 LP slot(s) | |
| 4 PCIe 4.0 x16 FHFL slot(s) | ||
| 2 PCIe 4.0 x16 LP slot(s) | ||
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X12DPG-QBT6 | 1 | Super X12DPG-QBT6 Motherboard | |
| Motherboard / Chassis | CSE-747BTS-R2K20BP | 1 | Full-Tower Chassis | |
| Backplane | BPN-NVME4-747N-S8 | 1 | 8port 3.5"HDD/NVMe BPN 4U TowerCSE,8ports NVMe4/SAS/SATA,RoH | |
| Cable | CBL-PWCD-0900 | 2 | PWCD,US/EU/Canada/China/Australia,IEC60320 C14 TO C13,4FT,17 | |
| Cable | CBL-PWEX-1040 | 4 | PWYCB,GPU,2x4M/CPU to two (2x3F+2x1F)/PCIe,P4.2, 5CM,16/20AW | |
| Cable | CBL-SAST-1230-100 | 2 | Slimline x4 (LE) to Slimline x4 (STR),INT,30CM,100 OHM, | |
| Cable | CBL-SAST-1230-85 | 2 | Slimline x8 (LE) to Slimline x8 (RE),INT,30CM,85 OHm,R | |
| Cable | CBL-0071L | 1 | ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF | |
| Cable | CBL-0160L | 2 | US POWER CORD 16AWG, PB FREE | |
| Cable | CBL-0216L | 4 | 4 TO 4 PIN FAN POWER CABLE, 210MM | |
| Cable | CBL-0286L | 2 | 4 TO 4 PIN REAR FAN PWR EXT W/ SQUARE HEADER, 30CM (PWM) | |
| Drive Tray(s) | MCP-220-00150-0B | 4 | NVMe Panetone 159C on Latch | |
| Drive Tray(s) | MCP-220-00073-0B | 3 | Black 5.25 drive tray w/o rail (SC747) | |
| Parts | MCP-260-00150-0N | 1 | STD I/O Shield for X12DPG-QT with EMI Gasket | |
| Parts | MCP-290-74701-0B | 1 | Black plastic top cover for SC747 | |
| Parts | MCP-290-74702-0N | 1 | GPU Card Holder (11 slots) for SC747TQ, SC842 | |
| Parts | MCP-290-74703-0B | 1 | fixed 3.5" dummy cover for SC747 | |
| Parts | MCP-290-74709-0B | 1 | Plastic feet (2 pcs/set) for 4U tower chassis, black color | |
| Software | SFT-OOB-LIC | 1 | License key for enabling OOB BIOS management | |
| Heatsink / Retention | SNK-P0080AP4 | 2 | 4U Active CPU Heat Sink for X12 Generation DP Workstations and 4U Servers | |
| *Power Supply | PWS-2K20A-1R | 2 | 1U 2200W Redundant, Titanium, 76(W) X 40(H) X 336(L) mm | |
| *Power Distributor | PDB-PT747-6824 | 1 | Power Distributor Board is for 4U GPU solution using regular | |
| *Fan | FAN-0082L4-1 | 2 | 80x80x38 mm, 6.1K RPM, Rear Exhaust Fan for SC743, SC745, Ro | |
| *Fan | FAN-0114L4-1 | 2 | 92x92x38 mm, 5K RPM, Middle Cooling Fan for SC747, RoHS | |
| *Fan | FAN-0138L4 | 2 | 92x92x38 mm, 7.5K RPM, SC747 Middle Fan for Passive Cooling GPU | |
| *Front Bezel | MCP-210-74701-0B | 1 | SC747 plastic front bezel | |
| *Front Panel | MCP-280-74702-0N | 1 | SC747BTQ-R2K04B Front Control Panel PCB (2x USB3.0, Audio) |
Note:
• Parts with * are inside the chassis
• Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
