| GPU |
| CPU-GPU Interconnect | Direct Attached |
| GPU-GPU Interconnect | NVIDIA® NVLink™ Bridge (optional) |
| Supported GPU | Supports both active and passive cooled GPUs |
| NVIDIA H100 and AMD MI200 series |
| Up to 8 Double-Width/Single-Width Cards (Full Height Full Length) |
| System Memory |
| Memory Voltage | 1.1 V |
| Error Detection | ECC |
| Memory | Memory Type: 4800MHz ECC DDR5 RDIMM/LRDIMM |
| Memory Capacity: 24 DIMM slots |
| Up to 6TB: 24x 256 GB DRAM |
| Note | Full memory population recommended for optimal performance. |
| On-Board Devices |
| Chipset | AMD SP5 |
| Network Connectivity | 2x 10GbE BaseT |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| SATA | SATA3 (6Gbps) |
| System BIOS |
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| Management |
| Software | Watch Dog |
| NMI |
| KVM with dedicated LAN |
| Redfish API |
| SuperDoctor® 5 |
| Intel® Node Manager |
| IPMI 2.0 |
| SUM |
| SSM |
| SPM |
| OOB Management Package (SFT-OOB-LIC ) |
| Power Configurations | Power-on mode for AC power recovery |
| ACPI Power Management |
| PC Health Monitoring |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| 7 +1 Phase-switching voltage regulator |
| FAN | Status monitor for speed control |
| Pulse Width Modulated (PWM) fan connectors |
| Fans with tachometer monitoring |
| Temperature | Monitoring for CPU and chassis environment |
| Thermal Control for fan connectors |
| Power Supply |
| Certification | Titanium Level |
| Dimension (W x H x L) | 73.5 x 40 x 203 mm |
| AC Input | 1000W: 100-127Vac / 50-60Hz |
| 1800W: 200-220Vac / 50-60Hz |
| 1980W: 220-230Vac / 50-60Hz |
| 2000W: 230-240Vac / 50-60Hz |
| 2000W: 220-240Vac / 50-60Hz |
| 2000W: 230-240Vdc |
| +12V | Max: 83A / Min: 0A (100Vac-127Vac) |
| Max: 150A / Min: 0A (200Vac-220Vac) |
| Max: 165A / Min: 0A (220Vac-230Vac) |
| Max: 166A / Min: 0A (230Vac-240Vac) |
| 12V SB | Max: 3.5A / Min: 0A |
| Output Type | Backplanes (gold finger) |
| Product SKUs |

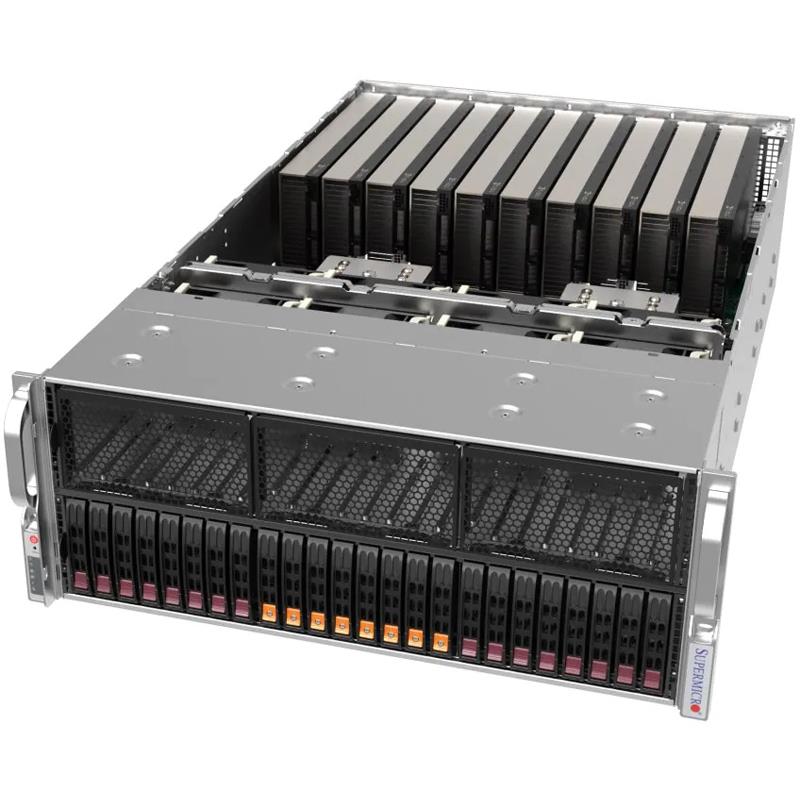

| Product SKUs | AS -4125GS-TNRT |
| Motherboard |
| Motherboard | Super H13DSG-O-CPU |
| Processor |
| CPU | Dual Socket SP5 |
| AMD EPYC™ 9004 Series Processors |
| Support CPU TDP 400W |
| Cores | Up to 96C/192T |
| Input / Output |
| Video | 1 VGA port(s) |
| Chassis |
| Form Factor | 4U Rackmount |
| Model | CSE-418G2TS |
| Dimensions and Weight |
| Height | 7" (178mm) |
| Width | 17.2" (437mm) |
| Depth | 29" (737mm) |
| Package | 26.57" (H) x 27" (W) x 41" (D) |
| Weight | Net Weight: 65.5 lbs (29.7 kg) |
| Gross Weight: 100 lbs (45.3 kg) |
| Available Color | Black Front & Silver Body |
| Expansion Slots |
| PCI-Express (PCIe) | 9 PCIe 5.0 x16 FHFL slot(s) |
| Drive Bays / Storage |
| Hot-swap | 24x 2.5" hot-swap NVMe/SATA/SAS drive bays (4x 2.5" NVMe dedicated) |
| M.2 | 1 M.2 NVMe |
| System Cooling |
| Fans | 8 heavy duty fans with optimal fan speed control |
| Operating Environment |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) |
