| Product SKUs |

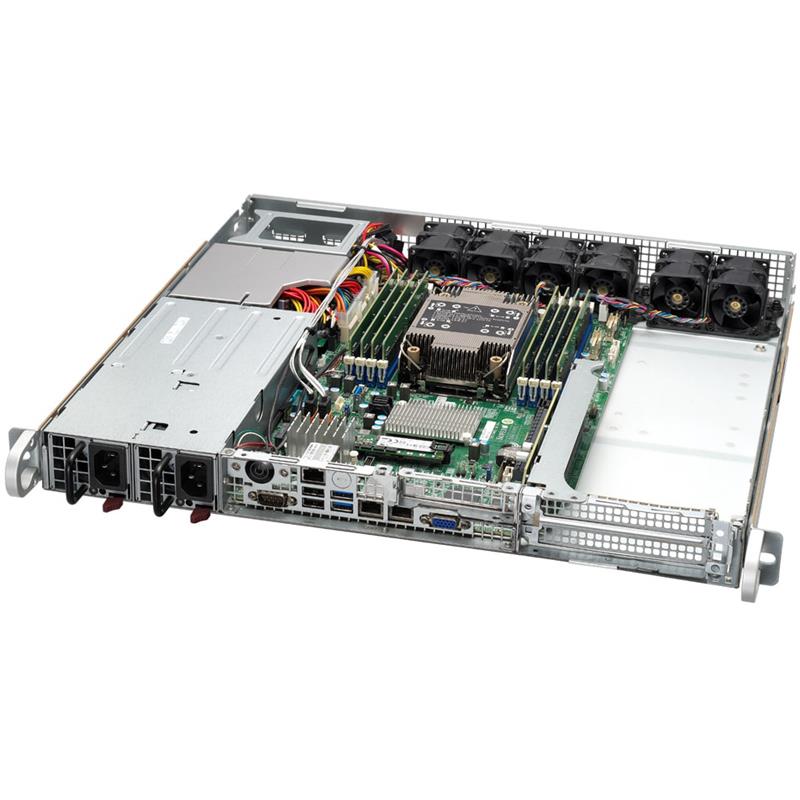

| Product SKUs | SYS-110P-FWTR |
| Motherboard |
| Motherboard | Super X12SPW-TF |
| Processor |
| CPU | 3rd Gen Intel® Xeon® Scalable processors |
| Single Socket P+ (LGA-4189) |
| Support CPU TDP 85-205W |
| Cores | Up to 32C/64T; Up to 48MB Cache |
| System Memory |
| Memory | Memory Capacity: 8 DIMM slots |
| Memory Type: 3200MHz ECC DDR4 RDIMM/LRDIMM |
| Memory Voltage | 1.2 V |
| Error Detection | ECC |
| On-Board Devices |
| SATA | SATA3 (6Gbps); RAID 0/1 support |
| Chipset | Intel® C621A |
| Network Connectivity | 2x 10GbE BaseT port(s) |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Input / Output |
| USB | 2 USB 2.0 port(s) (2 front) |
| 2 USB 3.2 port(s) (2 front) |
| Video | 1 VGA port(s) |
| Management |
| Software | IPMI 2.0 |
| Power Configurations | Power-on mode for AC power recovery |
| ACPI Power Management |
| PC Health Monitoring |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| FAN | Status monitor for speed control |
| Pulse Width Modulated (PWM) fan connectors |
| Fans with tachometer monitoring |
| Temperature | Monitoring for CPU and chassis environment |
| CPU thermal trip support, PEPI |
| Chassis |
| Form Factor | 1U Rackmount |
| Model | CSE-515B-R801W |
| Dimensions and Weight |
| Height | 1.7" (44.5mm) |
| Width | 17.2" (436.88mm) |
| Depth | 16.9" (429.3mm) |
| Package | 8" (H) x 27" (W) x 24" (D) |
| Weight | Net Weight: 10 lbs (4.54 kg) |
| Gross Weight: 15 lbs (6.8 kg) |
| Available Color | Silver |
| Expansion Slots |
| PCI-Express (PCIe) | 2 PCIe 4.0 x16 FHFL slot(s) |
| 1 PCIe 4.0 x16LP slot(s) |
| Drive Bays / Storage |
| Drive Bays | 2x 2.5" SATA drive bays |
| M.2 | 1 M.2 NVMe OR 1 M.2 SATA3 |
| M-Key, 2280/22110 |
| System Cooling |
| Fans | 6 heavy duty fans with optimal fan speed control |
| Air Shroud | 1 Air Shroud(s) |
| Power Supply |
| Dimension (W x H x L) | 54.5 x 40 x 220 mm |
| Certification |
| Operating Environment |
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F) |
