Self-Encrypting Drive (SED)
256MB data buffer, Drive Self Test
Perpendicular recording technology
Vertical, horizontal, or top down mounting

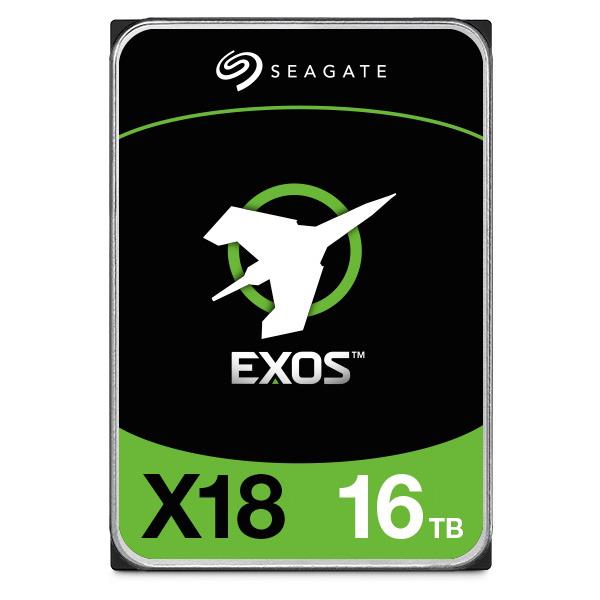

Hard Drive 16TB SAS 12Gb/s 7200 RPM 3.5in 256MB Cache Optimized For Hyperscale Cloud Scalability 512e/4Kn (EvansBP) Self-Encrypting Drives (SED) Exos X18 Series - OEM
Seagate manufactures hard drives that specifically address the demand for hyperscale cloud scalability. As the flagship of the Seagate X class, the Exos X18 enterprise hard drives are the highest-capacity hard drives in the fleet.
Features
32 Independent data bands
Authenticated firmware download
Automatic data encryption/decryption
Controlled access
Cryptographic erase of user data for a drive that will be repurposed or scrapped
Drive locking
Random number generator
| Main Specifications | ||
| Device Type | Hard drive - internal - Standard Model Fast Format (512e/4Kn) | |
| Capacity | 16TB | |
| Form Factor | 3.5-inch | |
| Interface | SAS 12Gb/s | |
| Dimensions (WxDxH) | Height 1.028 x Width 4.010 x Depth: 5.787 in | |
| Weight | 1.477 lb | |
| Hard Drive | ||
| Buffer Size | 256 MB | |
| Spindle Speed | 7200RPM | |
| Performance | ||
| Interface Access Speed (Gb/s) | 12.0, 6.0, 3.0 | |
| Reliability | ||
| Reliability Rating @ Full 247 Operation | 0.35% | |
| Non-Recoverable Errors | 1 sector per 10E15 | |
| Power-On Hours per Year | 8760 (24x7) | |
| Bytes per Sector | 4Kn Sector Size (Bytes per Sector): 4096, 4160, 4224 | |
| Expansion / Connectivity | ||
| Interface Ports | Dual | |
| Power | ||
| Idle (W) | 5.5W | |
| Miscellaneous | ||
| MTBF | 2.5 (M hours) | |
| Features | Helium Sealed-Drive Design, Conventional Magnetic Recording (CMR), Protection Information (T10 DIF), Super Parity, Low Halogen, PowerChoice Idle Power Technology, PowerBalance Power/Performance Technology, Hot-Plug Support, Cache, Multisegmented (MB) 256, Organic Solderability Preservative, RSA 3072 Firmware Verification (SD&D) | |
| Key Application | Scalable hyperscale, applications/cloud data centers, Massive scale-out data centers, Big data applications, High-capacity density RAID storage, Mainstream enterprise external, storage arrays, Distributed file systems, including, Hadoop and Ceph, Enterprise backup and restore—D2D, virtual tape, Centralized surveillance | |
| Warranty: | 5 years, 90 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 90 days, 2 weeks afterwards |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Seagate |
| Type of Support: | FULL |
| Phone No.: | 800.SEAGATE |
| URL: | Click here for Manufacturer Website |
