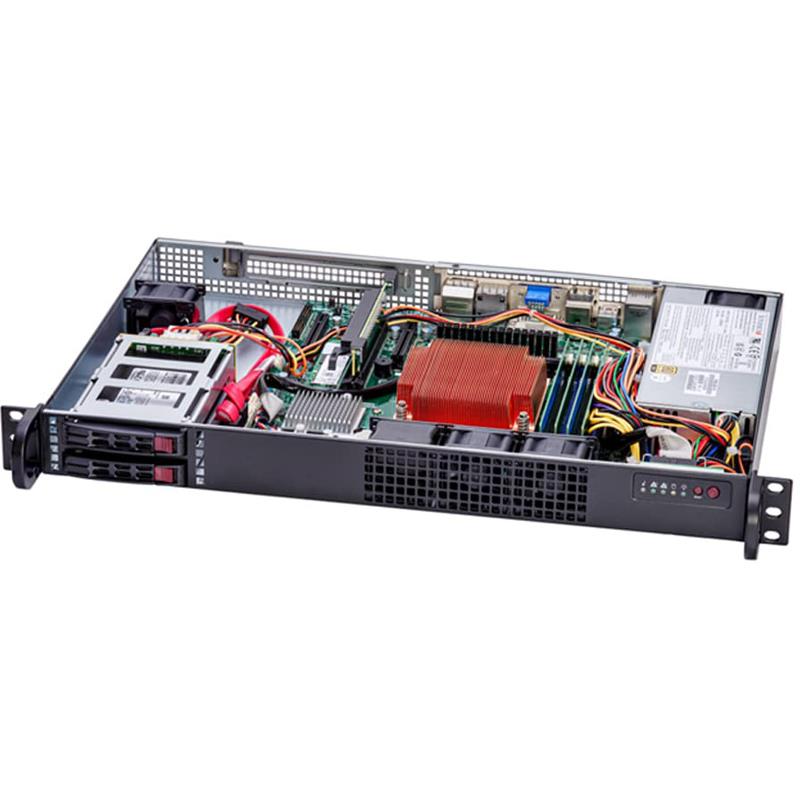

- Supermicro SYS-111AD-HN2 IoT 1U Barebone Single 12th Gen Core i9/i7/i5/i3 Processors
Supermicro SYS-111AD-HN2 IoT 1U Barebone Single 12th Gen Core i9/i7/i5/i3 Processors
• Video Surveillance
• Office Server, DVR/NVR
• Embedded System
• Digital Signage / PoS
Barebone 1U Rackmount SuperServer 12th Gen Core i9/i7/i5/i3 Processors, Up to 128GB in 4 DIMM slots, UDIMM, On-Board : SATA3 (6Gbps), RAID 0/1/5/10 support, 2x 2.5in hot-swap SATA/PCIe Drive Bays, 1 M.2 NVMe M-Key, 2280/22110, Network Connectivity : 2x 2.5GBased-T, 1x Dedicated IPMI, 200W Power Supply - (SYS-111AD-HN2 + X13SAZ-F)
1. Single Socket LGA-1700 support 14th/13th/12th Gen Core i9/i7/i5/i3/Pentium/Celeron Processor,up to 80W
2. 4x DIMMs; Up to 128GB Unbuffered ECC/non-ECC UDIMM
3. 1x PCIe Gen5 x16 HHHL slot
4. 2 Hot-swap 2.5" SATA3 drive bays
5. 4x 40x28mm 4-pin PWM fans
6. 200W Low Noise AC-DC power supply with PFC
7. Rear-access I/O: 2x 2.5GBased-T, 1x Dedicated IPMI, 4x USB3.2, 1x VGA, 1x DVI-D, 2x DP,1x HDMI 2.0b
Extra Specifications for Supermicro SYS-111AD-HN2 IoT 1U Barebone Single 12th Gen Core i9/i7/i5/i3 Processors
| System Memory | ||
| Memory Voltage | 1.1 V | |
| Error Detection | ECC/Non-ECC | |
| Memory | Memory Capacity: 4 DIMM slots | |
| Up to 128GB: UDIMM | ||
| Memory Type: 4000MHz DDR5 UDIMM | ||
| On-Board Devices | ||
| Chipset | System on Chip | |
| Network Connectivity | 2x 2.5GbE BaseT with Intel® I225-LM | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| SATA | SATA3.0 | |
| Input / Output | ||
| SATA | 2 SATA (6Gbps) port(s) | |
| LAN | 2x 2.5GbE | |
| USB | 4 USB 3.2 Gen2 port(s) (4 USB) | |
| Video | 1 VGA port(s) | |
| Others | 1x DVI-D | |
| 1x Line Out | ||
| 1x Mic In | ||
| 1x HDMI 2.0b | ||
| 2x DP 1.4 | ||
| Management | ||
| Software | IPMI 2.0 | |
| Power Configurations | Power-on mode for AC power recovery | |
| ACPI Power Management | ||
| PC Health Monitoring | ||
| Temperature | Platform Environment Control Interface (PECI) 3.0 support | |
| SuperDoctor® 5 | ||
| System resource alert via SuperDoctor®5 | ||
| Front Panel | ||
| Buttons | UID button | |
| Power On/Off | ||
| LEDs | HDD activity | |
| Power status | ||
| LAN1 activity | ||
| System information | ||
| LAN2 activity | ||
| Power Supply | ||
| Certification | Gold Level | |
| Dimension (W x H x L) | 76.5 x 40.3 x 192.8 mm | |
| AC Input | 200W: 100-240Vac / 2.6A Max / 50-60Hz | |
| +12V | Max: 16A / Min: 0A (100Vac-240Vac) | |
| Product SKUs | ||
| Product SKUs | SYS-111AD-HN2 | |
| Motherboard | ||
| Motherboard | Super X13SAZ-F | |
| Processor | ||
| CPU | Single LGA-1700 | |
| 12th/13th Gen Core i9/i7/i5/i3 Processor | ||
| Chassis | ||
| Form Factor | 1U Rackmount | |
| Model | CSE-510FT-203B | |
| Dimensions and Weight | ||
| Height | 1.7" (43mm) | |
| Width | 17.2" (437mm) | |
| Depth | 11.3" (287mm) | |
| Package | 6.1" (H) x 25.4" (W) x 19.8" (D) | |
| Weight | Net Weight: 10 lbs (4.54 kg) | |
| Gross Weight: 14.1 lbs (6.4 kg) | ||
| Available Color | Black | |
| Expansion Slots | ||
| PCI-Express (PCIe) | 1 PCIe 5.0 x16 HHHL slot(s) | |
| Drive Bays / Storage | ||
| Hot-swap | 2x 2.5" hot-swap SATA/PCIe drive bays | |
| M.2 | M-Key, 2280/22110 | |
| 1 M.2 NVMe | ||
| System Cooling | ||
| Fans | 4x 4-PIN PWM 40x28mm Fan(s) | |
| Operating Environment | ||
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F) | ||
| Note | Operating Temperature: Continuous 0°C ~ 40°C (32°F ~ 104°F), Short term -5°C ~ 55°C (23°F ~ 131°F) | |
| Acceptable AC Input Voltage: 100-240Vac / 5.5A-10A / 50-60Hz | ||
