- Supermicro SYS-E300-13AD IoT Mini-1U Single Intel Core i9/Core i7/Core i5/Core i3 Processor 13th/12th Generation

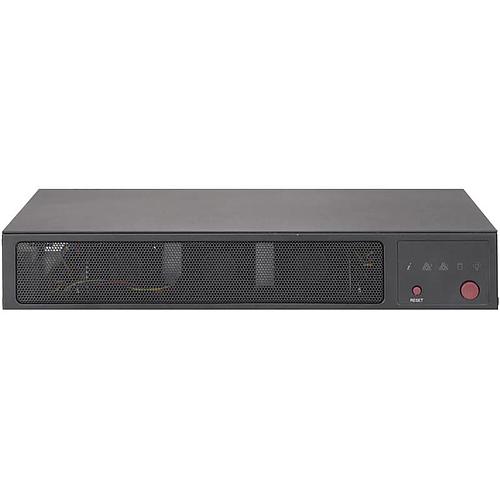

Supermicro SYS-E300-13AD IoT Mini-1U Single Intel Core i9/Core i7/Core i5/Core i3 Processor 13th/12th Generation
• Digital Signage
• Surveillance Security Server
• Medical Applications
• AI Inference
Barebone Mini-1U, Supports Single Socket LGA-1700, Supporting Intel Core i9/Core i7/Core i5/Core i3 13th/12th Generation/Pentium/Celeron Processor, Intel Q670E, Up to 64GB in 2 DIMM slots, SO-DIMM, On-Board : Intel Q670E Controller SATA3 with RAID, 1x 2.5in SATA Drive Bays, 1x E-Key 2230 (PCIe 3.0 x1 / USB2.0), 1x M-Key 2280 (PCIe 4.0 x4 NVMe), Network Connectivity : 1 RJ45 GbE (Intel i210-AT), 1 RJ45 2.5 GbE (Intel i225-LM), 180W 12V Lockable DC Power Adapter - (SYS-E300-13AD + X13SAV-LVDS)
1. 13th/12th Generation Intel® Core™ i9/i7/i5/i3/Pentium/Celeron Processor (LGA-1700)
2. Intel® Q670E
3. 2x DDR4-3200MHz SO-DIMM max 64GB
4. Support M.2 M/E-Key Support 1x PCIe 5.0 x16 Slot (Optional)
5. AMT vPro Supported
6. Support up to 2x 2.5" drive bays (Optional)
7. Quad Independent Display by 2x HDMI and 2x DP
Extra Specifications for Supermicro SYS-E300-13AD IoT Mini-1U Single Intel Core i9/Core i7/Core i5/Core i3 Processor 13th/12th Generation
Motherboard | ||
Motherboard | Super X13SAV-LVDS | |
Processor | ||
CPU | Single Socket LGA-1700 supported | |
13th/12th Generation Intel Core i9/Core i7/Core i5/Core i3/Pentium/Celeron Processor | ||
Cores | Up to 16C/24T; Up to 30MB Cache | |
System Memory | ||
Memory | Memory Capacity: 2 DIMM slots | |
Memory Type: 3200MHz DDR4 SO-DIMM | ||
Up to 64GB: DDR4 SO-DIMM | ||
Memory Voltage | 1.2 V | |
Error Detection | Non-ECC | |
On-Board Devices | ||
Chipset | Intel® Q670E | |
Network Connectivity | 1x 1GbE BaseT with Intel® i210-AT | |
1x 2.5GbE GbE with Intel® I225-LM | ||
Chassis | ||
Form Factor | Mini-1U | |
Model | CSE-E300 | |
Dimensions and Weight | ||
Height | 1.69" (43mm) | |
Width | 10.43" (264.8mm) | |
Depth | 8.89" (225.8mm) | |
Package | 10.87" (H) x 15" (W) x 5.59" (D) | |
Weight | Net Weight: 2.76 lbs (1.25 kg) | |
Gross Weight: 3.7 lbs (1.68 kg) | ||
Available Color | Black | |

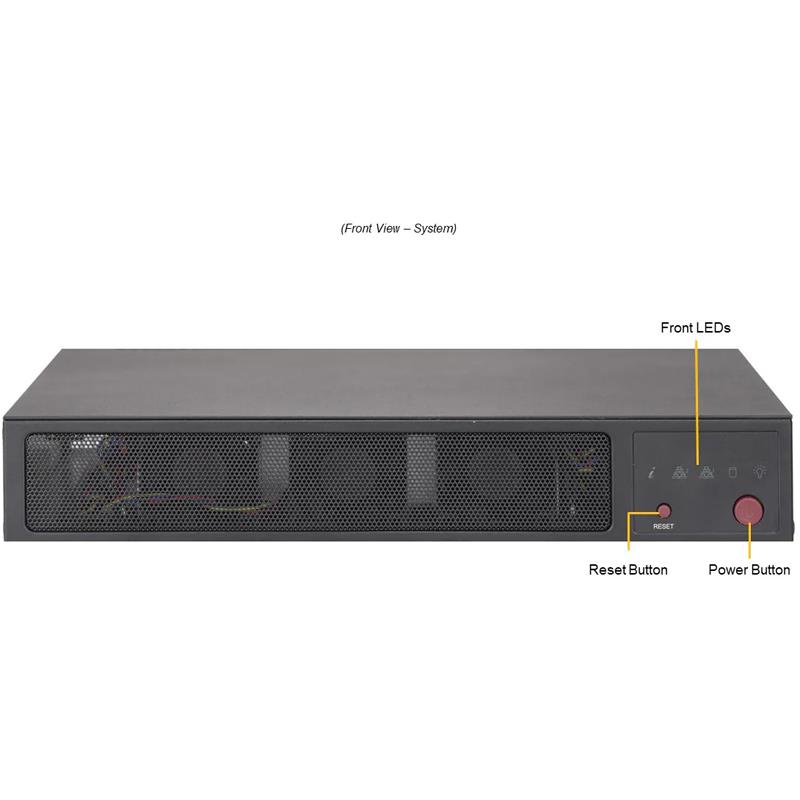

Front Panel | ||
Buttons | UID button | |
Power On/Off | ||
LEDs | HDD activity | |
Power status | ||
LAN1 activity | ||
System information | ||
LAN2 activity | ||
Drive Bays / Storage | ||
Drive Bays | 1x 2.5" SATA drive bays | |
M.2 | 1x E-Key 2230 (PCIe 3.0 x1 / USB2.0) | |
1x M-Key 2280 (PCIe 4.0 x4 (NVMe)) | ||
System Cooling | ||
Fans | 2x 4-PIN PWM 40x40x28mm Fan(s) | |
Operating Environment | ||
Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | |
Operating Relative Humidity: 8% to 90% (non-condensing) | ||
Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F) | ||
Product SKUs | ||
Product SKUs | SYS-E300-13AD | |
Input / Output | ||
SATA | 1 SATA (6Gbps) port(s) | |
LAN | 1 RJ45 GbE (Intel® i210-AT) | |
1 RJ45 2.5 GbE (Intel® i225-LM) | ||
USB | 4 USB 3.2 Gen2 port(s) (4 USB) | |
Others | 1x HDMI 1.4 | |
1x HDMI 2.0 | ||
1x Line Out | ||
1x Mic In | ||
2x DisplayPort | ||
System BIOS | ||
BIOS Type | AMI 512MB UEFI | |
BIOS Features | UEFI 2.7 | |
ACPI 6.3 | ||
PCI FW 3.0 | ||
SMBIOS 3.3 | ||
Management | ||
Software | Watch Dog | |
SuperDoctor® 5 | ||
Power Configurations | Power-on mode for AC power recovery | |
ACPI Power Management | ||
Expansion Slots | ||
PCI-Express (PCIe) | 1 1x PCIe 5.0 x16 Low Profile slot(s) | |
Note | Either support expansion slot or 2nd 2.5" drive. | |
Need to order optional parts for riser card. | ||
Power Supply | ||
AC Input | 180W: 100-240Vac / 15A Max / 47-63Hz |
Name | Part Number | Qty. | Description | |
---|---|---|---|---|
Motherboard / Chassis | MBD-X13SAV-LVDS | 1 | Super X13SAV-LVDS Motherboard | |
Motherboard / Chassis | CSE-E300 | 1 | Fan-based Embedded Chassis | |
Cable | CBL-0473L | 1 | 7pin SATA (STR to STR), 21cm, PBF | |
Cable | CBL-PWEX-0982 | 1 | PWR EXT,1X4F/P2.50 TO SATA POWER, 25CM, 22AWG | |
Fan | FAN-0065L4 | 2 | 4028mm 13K RPM 4-PIN PWM FAN for SC813MF, SC113M | |
Power Supply | MCP-250-10133-0N | 1 | 180W DC power adapter with US power cord 18AWG 6ft | |
Parts | MCP-260-00167-0B | 1 | 1U E300, 101F I/O Shield for X13SAV-LVDS with EMI Gasket | |
Manual | MNL-2558-QRG | 1 | E300-13AD Quick Reference Guide | |
Heatsink / Retention | SNK-P0085A4 | 1 | 1U Active CPU Heat Sink for E300-13C Embedded Server |
Name | Part Number | Price | Add to Cart | Qty. | Description | |
---|---|---|---|---|---|---|
Dual 2.5" drive bay kits | CBL-SAST-0933 • | 1 | OcuLink v 1.0 to 4x SATA 7-pin,INT, 50CM,32AWG,RoHS | |||
Dual 2.5" drive bay kits | CBL-SAST-0886 | $ 17.00 | 1 | SATA 15pin x2 to 4pin /P2.5,40CM,22AWG,RoHS | ||
Expansion slot kits | RSC-S-6G5 | $ 48.50 | 1 | 1U LHS Standard Riser card with one PCIe 5.0 X16 slot.,H | ||
GPU air shroud | MCP-310-30001-0B | 1 | Air shroud for NVIDIA Low profile GPU card(T4/A2/L4) | |||
Rackmount kits | MCP-290-30002-0B • | 1 | CSE-E300 Rackmount kit with power adapter holder | |||
Table Vertical Stand | MCP-290-30006-0B | 1 | CSE-E300 Vertical Stand,RoHS |
Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
Coverage: | Replacement or repair |
Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
