- Seagate ST22000NM001E 22TB Hard Drive SATA III 6Gb/s 7200RPM 3.5-Inch 512e/4Kn - Exos X22 Series

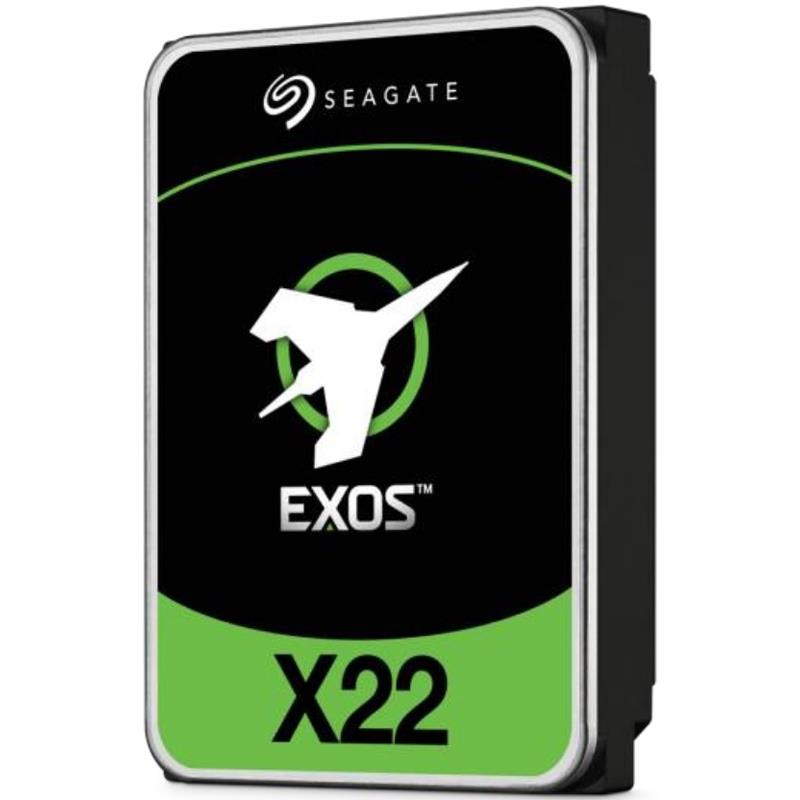

Seagate ST22000NM001E 22TB Hard Drive SATA III 6Gb/s 7200RPM 3.5-Inch 512e/4Kn - Exos X22 Series
Helium Sealed-Drive Design
PowerChoice Idle Power Technology
Centralized surveillance Applications
Offering 22TB capacity, with Hot-Plug Support
The SATA III 6Gb/s Hard Drive Features 22TB 7200 RPM 3.5in 512MB Cache FastFormat 512e/4Kn Exos X22 Series - OEM
Powerful performance with proven technology—Seagate’s Exos X22 drives are built off the platform that’s shipped millions globally and deployed in leading cloud service provider solutions—making them the most sought-after drives in our data sphere. Designed with the highest rack-space efficiency and protected with Seagate Secure, Exos X22 offers extreme market-leading capacity, earning customer confidence by delivering trusted peace of mind.
Best-Fit Applications
Scalable hyper-scale applications/cloud data centers
Massive scale-out data centers
Big data applications
High-capacity density RAID storage
Mainstream enterprise external storage arrays
Distributed file systems, including Hadoop and Ceph
Enterprise backup and restore—D2D, virtual tape
Centralized surveillance
Extra Specifications for Seagate ST22000NM001E 22TB Hard Drive SATA III 6Gb/s 7200RPM 3.5-Inch 512e/4Kn - Exos X22 Series
| Main Specifications | ||
| Device Type | Hard drive - internal | |
| Capacity | 22TB | |
| Interface | SATA 6Gb/s | |
| Form Factor | 3.5-inch | |
| Dimensions (WxDxH) | Height 1.028 x Width 4.010 x Depth 5.787 in | |
| Weight | 1.50 lb | |
| Hard Drive | ||
| Buffer Size | 512MB | |
| Spindle Speed | 7200RPM | |
| Miscellaneous | ||
| MTBF | 2.5M hours | |
| Reliability | ||
| Reliability Rating @ Full 247 Operation | 0.35% | |
| Non-Recoverable Errors | 1 sector per 10E15 | |
| Power-On Hours per Year | 8760 | |
| Bytes per Sector | 512e Sector Size (Bytes per Sector): 512, 4Kn Sector Size (Bytes per Sector): 4096 | |
| Performance | ||
| Interface Access Speed (Gb/s) | 6.0, 3.0 | |
| Max Sustainable Transfer Rate | 285/272 | |
| 4KB Random Read | 168/550 | |
| Average Latency | 4.16ms | |
| Power | ||
| Idle (W) | 5.74W | |
| Max Operating Random Read/Write | 9.4, 6.4 | |
| Environmental | ||
| Operating Environment | Temperature, Operating (°C): 5°C – 60°C | |
| Vibration, Nonoperating: 2 to 500Hz (Grms): 2.27 | ||
| Shock, Nonoperating 2ms (Gs): 200 | ||
| Shock, Operating 2ms Read/Write (Gs): 70/40Gs | ||
| Warranty: | 3 years |
| Coverage: | Replacement or repair |
| Average Service Time: | 1-2 weeks |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Seagate |
| Type of Support: | FULL |
| Phone No.: | 800.SEAGATE |
| URL: | Click here for Manufacturer Website |
