| Product SKUs |

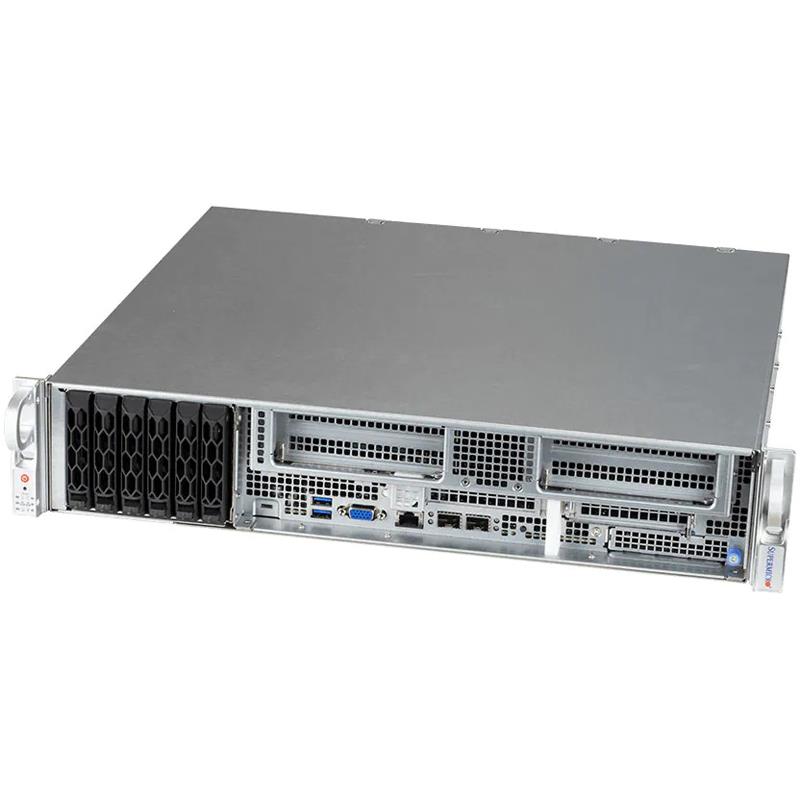

| Product SKUs | ARS-210ME-FNR |
| Motherboard |
| Motherboard | Super R12SPD-A |
| Processor |
| CPU | Single 4926-Pin FCLGA |
| Ampere® Altra® (Up to 80 Cores and 3.3Ghz) / Altra® Max (Up to 128 Cores and 3.0Ghz) Processor |
| Support CPU TDP 65-250W |
| System Memory |
| Memory | Memory Capacity: 16 DIMM slots |
| Memory Type: 3200MHz ECC DDR4 RDIMM; LRDIMM |
| Memory Voltage | 1.2 V |
| Error Detection | ECC |
| On-Board Devices |
| Chipset | System on Chip |
| Network Connectivity | 2x 10GbE SFP28 with Mellanox |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Input / Output |
| LAN | 1 RJ45 Dedicated IPMI LAN port |
| 2x 10GbE SFP28 Ethernet LAN Ports (or 1x 25GbE) |
| USB | 2 USB 3.0 port(s) (2 Rear_USB) |
| Video | 1 VGA port(s) |
| Serial Port | 1 Serial (Micro USB) Port |
| Management |
| Software | KVM with dedicated LAN |
| IPMI 2.0 |
| Power Configurations | ACPI / APM Power Management |
| PC Health Monitoring |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| FAN | Status monitor for speed control |
| Pulse Width Modulated (PWM) fan connectors |
| Fans with tachometer monitoring |
| Temperature | Monitoring for CPU and chassis environment |
| Thermal Control for fan connectors |
| Chassis |
| Form Factor | 2U Rackmount |
| Model | CSE-LB23MTS-R000NDP |
| Dimensions and Weight |
| Height | 3.5" (88.9mm) |
| Width | 17.2" (436.88mm) |
| Depth | 17" (431.8mm) |
| Package | 11" (H) x 26.5" (W) x 34" (D) |
| Weight | Gross Weight: 59 lbs (26.76 kg) |
| Net Weight: 35.3 lbs (16 kg) |
| Available Color | Black |
| Front Panel |
| Buttons | UID button |
| Power On/Off |
| LEDs | HDD activity |
| Power status |
| Network activity |
| System information (overheat/UID) |
| Expansion Slots |
| PCI-Express (PCIe) | 1 PCIe 4.0 x16 AIOM slot(s) |
| 1 PCIe 4.0 x16 LP slot(s) |
| 2 PCIe 4.0 x16 FP slot(s) |
| 2 PCIe 4.0 x8 FP slot(s) |
| Drive Bays / Storage |
| Hot-swap | 6x 2.5" hot-swap NVME drive bays (6x 2.5" NVMe dedicated) |
| M.2 | 1 M.2 NVMe |
| M-Key, 22110 |
| System Cooling |
| Fans | 4 Heavy Duty 8cm Fan(s) |
| Power Supply |
| Dimension (W x H x L) | 73.5 x 40 x 203 mm |
| Output Type | Gold Finger Connector |
| Certification | Titanium Level |
| Operating Environment |
| RoHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) |
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) |
| Operating Relative Humidity: 8% to 90% (Non-Condensing) |
| Non-operating Relative Humidity: 5% to 95% (Non-Condensing) |
