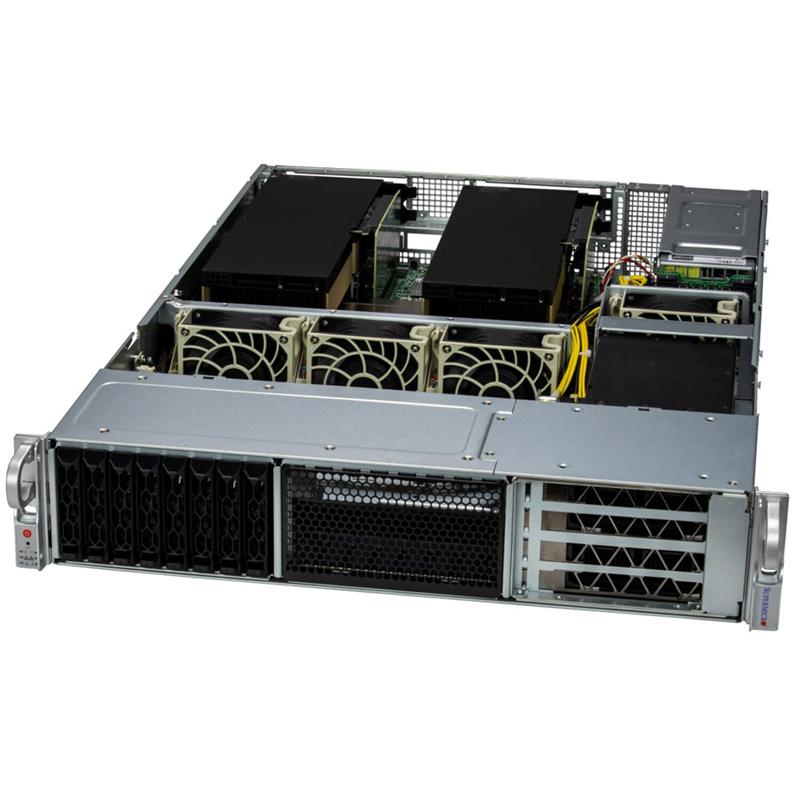

- Supermicro ARS-210M-NR MegaDC 2U Barebone Single Ampere Altra and Ampere Altra Max Processors
Supermicro ARS-210M-NR MegaDC 2U Barebone Single Ampere Altra and Ampere Altra Max Processors
• High Performance Computing
• Immersive Media
• Cloud Gaming / AICAN
• AI Inference / Training
• Dense-VDI
• Video-on-Demand
Barebone 2U Rackmount SuperServer, Supports Single FCLGA-4926, Supporting Ampere Altra and Ampere Altra Max Processors, System on Chip, Up to 4TB in 16 DIMM slots, RDIMM/LRDIMM, Supported GPU: NVIDIA A16, and NVIDIA A100, 4x 2.5in hot-swap NVME drive bays (4x 2.5in NVMe dedicated), 1 M.2 NVMe, M-Key 22110, Network Connectivity : 2x 10GbE SFP28 Ethernet LAN Ports (or 1x 25GbE), 1 RJ45 Dedicated IPMI LAN port, 1600W Power Supply - (ARS-210M-NR + R12SPD-A)
This product is no longer available.
1. Single Socket Ampere® Altra® Processor (Up to 80 Cores; Up to 3.3Ghz) / Single Socket Ampere® Altra® Max Processor (Up to 128 Cores; Up to 3.0Ghz) ; Up to 250W TDP
2. 16 DIMMs; Up to 4TB ECC Registered DDR4-3200MHz RDIMM/LRDIMM
3. Supports up to 4 PCIe 4.0 x16 Double Wide GPU Cards (Up to 300W per GPU), 1 PCIe 4.0 x16 LP Slot, 1 AIOM Slot (OCP3.0 Mezzanine Compatible)
4. 2x 25Gb LAN SFP28 Ports via Mellanox ConnectX®-4 Lx EN Controller
5. 4x 2.5" U.2 NVMe Hot-Swap Drive Bays (Options available for up to 16 or 24 Drive Bays via a Modular Bay Design)
6. 2000W Redundant Titanium Level high-efficiency power supplies
7. 1 VGA, 1 (Serial) Micro USB Port, 2 USB3.0 (2 Rear)
Extra Specifications for Supermicro ARS-210M-NR MegaDC 2U Barebone Single Ampere Altra and Ampere Altra Max Processors
| Product SKUs | ||
| Product SKUs | ARS-210M-NR | |
| Motherboard | ||
| Motherboard | Super R12SPD-A | |
| Processor | ||
| CPU | Single 4926-Pin FCLGA | |
| Ampere® Altra® (Up to 80 Cores and 3.3Ghz) / Altra® Max (Up to 128 Cores and 3.0Ghz) Processor | ||
| Support CPU TDP 65-250W | ||
| GPU | ||
| Supported GPU | NVIDIA A16 | |
| NVIDIA A100 | ||
| GPU-GPU Interconnect | ||
| System Memory | ||
| Memory | Memory Capacity: 16 DIMM slots | |
| Memory Type: 3200MHz ECC DDR4 RDIMM; LRDIMM | ||
| Memory Voltage | 1.2 V | |
| Error Detection | ECC | |
| On-Board Devices | ||
| Chipset | System on Chip | |
| Network Connectivity | 2x 10GbE SFP28 with Mellanox | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Input / Output | ||
| LAN | 1 RJ45 Dedicated IPMI LAN port | |
| 2x 10GbE SFP28 Ethernet LAN Ports (or 1x 25GbE) | ||
| USB | 2 USB 3.0 port(s) (2 Rear_USB) | |
| Video | 1 VGA port(s) | |
| Serial Port | 1 Serial (Micro USB) Port | |
| Management | ||
| Software | KVM with dedicated LAN | |
| IPMI 2.0 | ||
| Power Configurations | ACPI / APM Power Management | |
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory | |
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 2U Rackmount | |
| Model | CSE-LB26TS-R2K08P | |
| Dimensions and Weight | ||
| Height | 3.5" (88.9mm) | |
| Width | 17.2" (436.88mm) | |
| Depth | 25.5" (647.7mm) | |
| Package | 11" (H) x 26.5" (W) x 34" (D) | |
| Weight | Gross Weight: 59 lbs (26.76 kg) | |
| Net Weight: 35.3 lbs (16 kg) | ||
| Available Color | Black | |
| Front Panel | ||
| Buttons | UID button | |
| Power On/Off | ||
| LEDs | HDD activity | |
| Power status | ||
| Network activity | ||
| System information (overheat/UID) | ||
| Expansion Slots | ||
| PCI-Express (PCIe) | 1 PCIe 4.0 x16 AIOM slot(s) | |
| 1 PCIe 4.0 x16 LP slot(s) | ||
| 4 PCIe 4.0 x16 FP slot(s) | ||
| Drive Bays / Storage | ||
| Hot-swap | 4x 2.5" hot-swap NVME drive bays (4x 2.5" NVMe dedicated) | |
| M.2 | 1 M.2 NVMe | |
| M-Key, 22110 | ||
| System Cooling | ||
| Fans | 4 Heavy Duty 8cm Fan(s) | |
| Power Supply | ||
| Dimension (W x H x L) | 73.5 x 40 x 203 mm | |
| Output Type | Gold Finger Connector | |
| Certification | Titanium Level | |
| Operating Environment | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Operating Relative Humidity: 8% to 90% (Non-Condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (Non-Condensing) | ||
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| 3816 HBA Card | AOC-S3816L-L16iT | 1 | Supermicro 12Gb/s 16-Port SAS Internal HBA Adapter | |||
| 3816 HBA Card | CBL-SAST-1261-100 • | 2 | Slimline x8 (STR) to 2x Slimline x4 (STR),60/60CM,100 | |||
| AIOM Network Card | AOC-A25G-m2SM | 1 | OCP 3.0 AIOM 2x 25GbE SFP28 PCIe x8 Mellanox® CX-6 LX | |||
| GPU power cable | CBL-PWEX-1040 • | 1 | GPU power cable for A10 | |||
| GPU power cable | CBL-PWEX-1364-26 | $ 26.00 | 1 | Short length 12pin to 8pin MicroHi, install GPUs in front GPU bays or GPU slot 1, 4 and 5(L40. L40S and H100) | ||
| GPU power cable | CBL-PWEX-1364-50 | $ 29.00 | 1 | Long length 12pin to 8pin MicroHi, install GPUs in front GPU bays or GPU slot 2 only(L40. L40S and H100) | ||
| M.2 Tray | AOC-SLG3-2M2 | $ 54.00 | 1 | Low Profile, Dual NVMe M.2 SSD PCIe add-on card |
| Warranty: | 3 years |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
