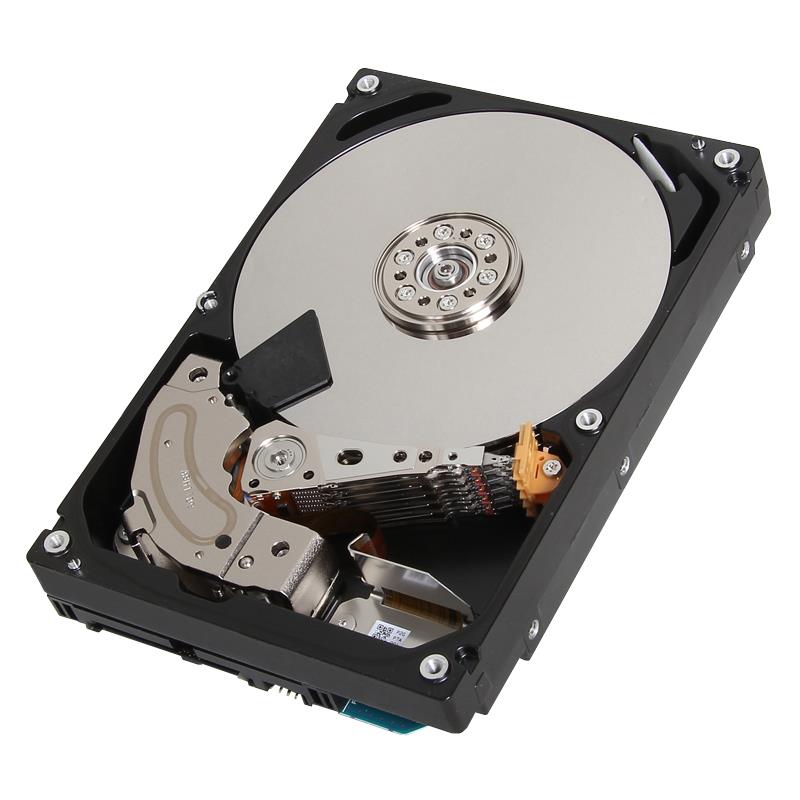

Toshiba MG04SCA40EE Hard Drive 4TB SAS3 12Gb/s 7200RPM 3.5in, 512e - MG04SCA Series

• 7200RPM Performance
• Write Cache Technology
• 12.0 Gbit/s SAS Interface
• Optimized Data Center Storage

Hard Drive 4TB SAS3 12Gb/s, 7200RPM 3.5in, 128MB Buffer, 512E - (Tomcat R) - OEM

This product is no longer available.

• 7,200rpm Performance
• Dual-Port 12.0 Gbit/s SAS Interface
• 4Kn or 512e Advanced Format Sector Technology
• 550 total TB Transferred per Year Workload Rating
• Industry Standard 3.5-inch 26.1 mm Height Form-Factor
• Introducing Toshiba Persistent Write Cache Technology for Data-Loss Protection in Sudden Power-Loss Events

Extra Specifications for Toshiba MG04SCA40EE Hard Drive 4TB SAS3 12Gb/s 7200RPM 3.5in, 512e - MG04SCA Series

Main Specifications
Device Type	Hard drive - internal
Dimensions (WxDxH)	Height 26.1 x Width 101.6 x Length 147 mm
Interface	SAS3 12Gb/s
Storage Capacity	4 TB
Weight	770 g Max
Optical Storage
Buffer Size	128 MB
Miscellaneous
Features	24 x 7 Operation
Applications	Engineered for Mid-line / Nearline Business Critical Workloads
	Tier 2 Business-Critical Servers and Storage Systems
	Capacity-Optimized Data Center Storage Systems
	Servers Supporting Application Workloads that Benefit from High Capacity per Spindle
RoHS	RoHS Compatible
MTBF	1,400,000 hours
Hard Drive
Spindle Speed	7,200 rpm
Performance
Average Latency	4.17 ms
Storage Controller
Data Transfer Rate	205 MB/s
Environmental Parameters
Humidity Range Operating	Humidity ( Operating/Non-operating ) 5 to 90 % R.H.
Min Operating Temperature	Temperature ( Operating ) 5 to 55 C
	Temperature ( Non-operating ) -40 to 70C
Shock Tolerance	Shock ( Operating ) 686 m/s2 { 70 G } ( 2 ms duration )
	Shock ( Non-operating ) 2,940 m/s2 { 300 G } ( 2 ms duration )
Vibration Tolerance	Vibration ( Operating ): 7.35 m/s2 { 0.75 G } ( 5 to 300 Hz ) - 2.45 m/s2 { 0.25 G } ( 300 to 500 Hz )
	Vibration ( Non-operating ): 49 m/s2 { 5 G } ( 5 to 500 Hz )
Power
Power Consumption (Active)	Power Consumption ( Read / Write ): 11.8 W - ( Idle-B ): 6.1 W Typ.
