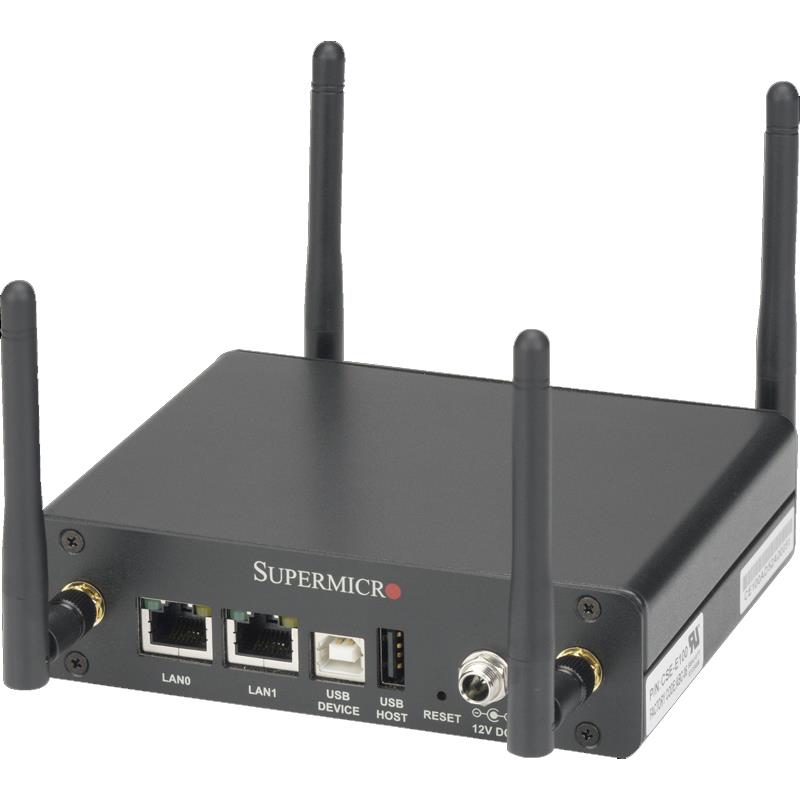

- Supermicro SYS-E100-8Q-AWE2 Compact Box PC IoT Gateway System Embedded Intel Quark SoC X1021 Processor
Supermicro SYS-E100-8Q-AWE2 Compact Box PC IoT Gateway System Embedded Intel Quark SoC X1021 Processor
Long Life Cycle Support
Compact Embedded System
Smart Building/Home Gateway
Retail store or Warehouse Hub
IoT Gateway System with WiFi+BT+Zigbee Module - EU, Embedded Intel Quark SoC X1021 Processor, 400 MHz 1-Core/1 Thread/2.2W.
This product is no longer available.
Power Adapter: 12V DC input
Onboard 512MB DDR3 ECC memory
1x Micro SDHC up to 32GB internal slot
Environment Operating temperature 0°C to 50°C
Single Intel Quark SoC X1021, CPU TDP support 2.2W
Expansion slots: 2x Mini-PCI-E slots, 1x ZigBee module socket
I/O ports: TPM 1.2 onboard Chip, 2x 10/100Mbps RJ45, 1x RS-232 via DB9, 1x RS485 via screw terminal interface, 2x USB 2.0 (device & host), 8x Analog Input 12-bit, 8x DIO 8 bit
Extra Specifications for Supermicro SYS-E100-8Q-AWE2 Compact Box PC IoT Gateway System Embedded Intel Quark SoC X1021 Processor
| Main Specifications | ||
| Device Type | SuperServer | |
| Built-in Devices | Super A1SQN | |
| Form Factor | E100 Compact Box PC - CSE-E100-015E | |
| Dimensions (WxDxH) | Width 5.3" (135mm) x Height 1.4" (36mm) x Depth 4.3" (109mm) | |
| Weight | Gross Weight: 3 lbs (1.4 kg) - Net Weight: 0.9 lbs (0.4 kg) | |
| Enclosure Color | Black | |
| Processor | ||
| Compatible Processors | Intel Quark SoC X1021 (CPU TDP support 2.2W) | |
| Processor Sockets | Single Socket FCBGA393 | |
| System Memory | ||
| Memory Capacity | 512MB of Onboard ECC DDR3 800MHz memory | |
| Memory Voltage | 1.5 V | |
| On-Board Devices | ||
| Chipset | Intel Quark SoC (System on Chip) X1021 | |
| USB | 2x USB 2.0 ports (1 Device & 1 Host) | |
| Input / Output | ||
| Internal Storage | Micro SDHC up to 32GB slot | |
| LAN | 2x 10/100Mbps RJ45 Gigabit Ethernet LAN ports | |
| Serial Port / Headers | 1x RS-232 via DB9, 1x RS485 via screw terminal interface | |
| Expansion / Connectivity | ||
| Expansion Slots Total (Free) | 1x ZigBee module socket | |
| 2x Mini-PCIe | ||
| Drive Bays / Storage | ||
| Internal drives | Micro SDHC up to 32GB slot | |
| Power | ||
| Power Device | 12V DC input | |
| System BIOS | ||
| BIOS Type | BSP: 8MB SPI Flash EEPROM Board Support Package | |
| Miscellaneous | ||
| Compliant Standards | RoHS | |
| Features | Smart Factory IoT Gateway based on Intel Quark SoC, Long Life Cycle Support, Compact Embedded System, Smart Building/Home Gateway, Retail store or Warehouse Hub | |
| Environmental Parameters | ||
| Operating Temperature | Operating Relative Humidity: 8% to 90% (non-condensing) | |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Operating Temperature: 0°C ~ 50°C (32°F ~ 122°F) | ||
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
