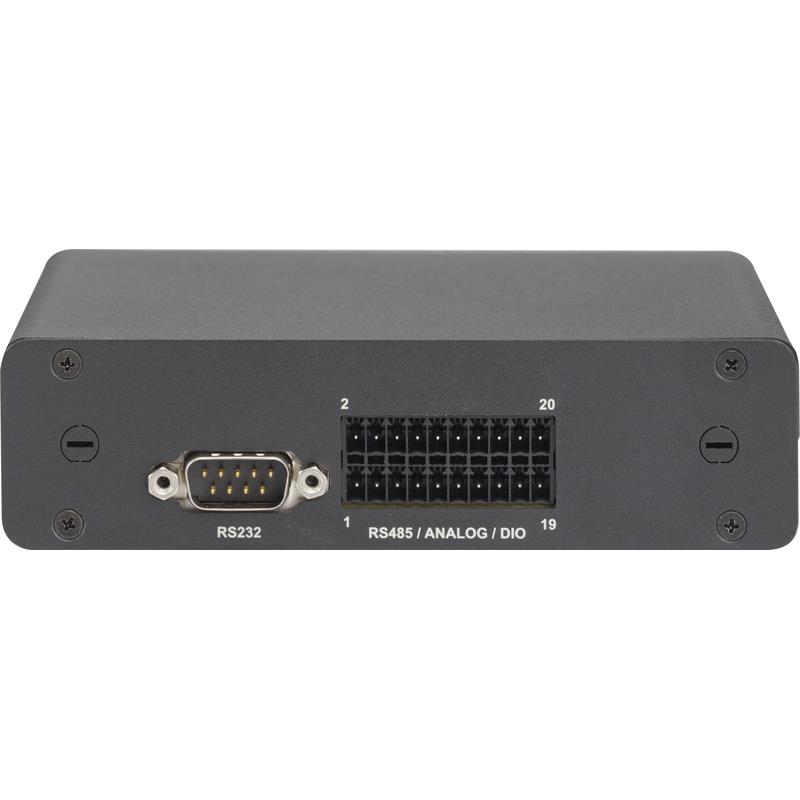

Supermicro SYS-E100-8Q-THE3 Compact Box PC IoT Gateway System Embedded Intel Quark SoC X1021 Processor
Onboard 512MB DDR3 ECC memory
1x Micro SDHC up to 32GB internal slot
Intel Quark SoC X1021 (CPU TDP support 2.2W)
512MB of Onboard ECC DDR3 800MHz memory
IoT Gateway System with 3G(WCDMA)+Zigbee US, Embedded Intel Quark SoC X1021 Processor, 400 MHz 1-Core/1 Thread/2.2W.
Power Adapter: 12V DC input
Onboard 512MB DDR3 ECC memory
1x Micro SDHC up to 32GB internal slot
Environment Operating temperature 0°C to 50°C
Single Intel Quark SoC X1021, CPU TDP support 2.2W
Expansion slots: 2x Mini-PCI-E slots, 1x ZigBee module socket
I/O ports: TPM 1.2 onboard Chip, 2x 10/100Mbps RJ45, 1x RS-232 via DB9, 1x RS485 via screw terminal interface, 2x USB 2.0 (device & host), 8x Analog Input 12-bit, 8x DIO 8 bit
Extra Specifications for Supermicro SYS-E100-8Q-THE3 Compact Box PC IoT Gateway System Embedded Intel Quark SoC X1021 Processor
| Main Specifications | ||
| Device Type | Embedded/IoT | |
| Built-in Devices | Super A1SQN | |
| Enclosure Color | Black | |
| Dimensions (WxDxH) | Width 5.3" (135mm) x Height 1.4" (36mm) x Depth 4.3" (109mm) | |
| Weight | Gross Weight: 3 lbs (1.4 kg) - Net Weight: 0.9 lbs (0.4 kg) | |
| Form Factor | E100 Compact Box PC - CSE-E100-015E | |
| Processor | ||
| Embedded Processor | Intel Quark SoC X1021 (CPU TDP support 2.2W) | |
| System Memory | ||
| Memory Capacity | 512MB of Onboard ECC DDR3 800MHz memory | |
| Memory Voltage | 1.5V only | |
| On-Board Devices | ||
| Chipset | Intel Quark SoC (System on Chip) X1021 | |
| USB | Intel Quark SoC X1021 | |
| Input / Output | ||
| Internal Storage | Micro SDHC up to 32GB slot | |
| LAN | 2x 10/100Mbps RJ45 Gigabit Ethernet LAN ports | |
| Others | 2x USB 2.0 ports (1 Device & 1 Host) | |
| Serial Port / Headers | 1x RS-232 via DB9, 1x RS485 via screw terminal interface | |
| Expansion Slots | ||
| PCI-E | 2x Mini-PCIe | |
| 3G(WCDMA)+Zigbee US | ||
| Drive Bays / Storage | ||
| Internal drives | Micro SDHC up to 32GB slot | |
| Power | ||
| Power Device | 12V DC input | |
| System BIOS | ||
| BIOS Type | BSP: 8MB SPI Flash EEPROM Board Support Package | |
| Miscellaneous | ||
| Compliant Standards | RoHS | |
| Operating Environment / Compliance | ||
| Environmental Spec | Operating Relative Humidity: 8% to 90% (non-condensing) | |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Operating Temperature: 0°C ~ 50°C (32°F ~ 122°F) | ||
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
