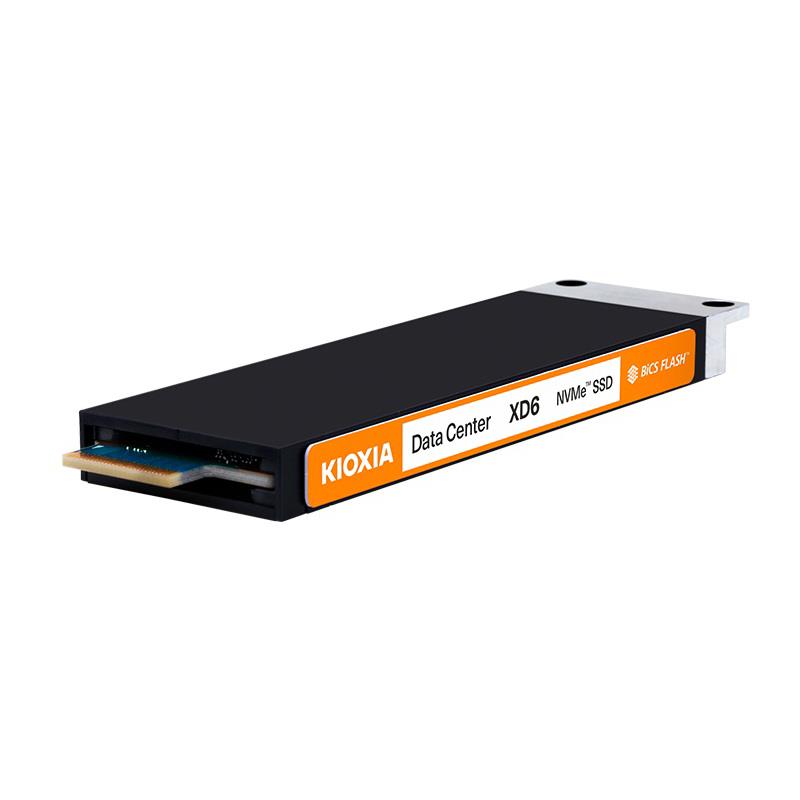

Kioxia KXD6CRJJ1T92 Hard Drive 1.92TB SSD NVMe PCIe 4.0, NVMe 1.3c E1.S 9.5mm SED - XD6 Series

Kioxia KXD6CRJJ1T92 Hard Drive 1.92TB SSD NVMe PCIe 4.0, NVMe 1.3c E1.S 9.5mm SED - XD6 Series

  • Compliant with PCIe 4.0, NVMe 1.3c specifications

  • Power loss protection and end-to-end data protection

  • XD6 Series are designed for cloud and hyperscale data centers

Hard Drive 1.92TB Solid State Drive NVMe PCIe 4.0, NVMe 1.3c EDSFF E1.S Form Factor (9.5mm Height) Optimized For Enterprise and Datacenter Applications, Self-Encrypting Drive (SED) TCG-Opal 2.0 BiCS FLASH TLC 1.0DWPD XD6 Series - OEM

This product is no longer available.

Data Center SSD NVMe SSD E1.S


KIOXIA XD6 Series E1.S SSDs are designed to the Enterprise and Datacenter Standard Form Factor (EDSFF) E1.S specification to address the specific requirements of hyper-scale applications, including the performance, power and thermal requirements of the Open Compute Platform (OCP) NVMe Cloud SSD Specification. Designed to optimize system density and efficiency, the XD6 Series SSDs represent the future of flash storage for servers and storage systems in cloud and hyperscale data centers.

Extra Specifications for Kioxia KXD6CRJJ1T92 Hard Drive 1.92TB SSD NVMe PCIe 4.0, NVMe 1.3c E1.S 9.5mm SED - XD6 Series

Main Specifications
Device TypeNVMe Solid state drive - internal
Capacity1.92TB
Form FactorE1.S 9.5mm
InterfacePCIe 4.0, NVMe 1.3c
Interface Speed64 GT/s (PCIe Gen4 x4)
NAND Flash Memory TypeBiCS FLASH TLC
Weight75 g Max
Dimensions (WxDxH)Height: 9.5mm ± 0.35mm, Width: 33.75 ± 0.25mm, length: 118.75 ± 0.55mm
Performance
Read6500 MB/s
Write1200 MB/s
4KB Random Read660 K IOPS
4KB Random Write50 K IOPS
Endurance DWPD1DWPD
Power
Power Consumption14 W
Miscellaneous
MTBF2,000,000 hours
Environmental
Operating EnvironmentTemperature (Operating): 0 °C to 70 °C
Humidity (Operating): 5 % to 95 % R.H.
Shock (Operating): 9,800 m/s2 { 1,000 G } ( 0.5 ms duration )
Temperature (Non-operating): -40 °C to 85 °C
Vibration (Operating): 21 m/s2 { 2.17 Grms } ( 7 to 800 Hz )
Vibration (Non-operating): 30 m/s2 { 3.08 Grms } ( 7 to 800 Hz )

Warranty:5 years
Coverage:Replacement or repair
Average Service Time:1-2 weeks
