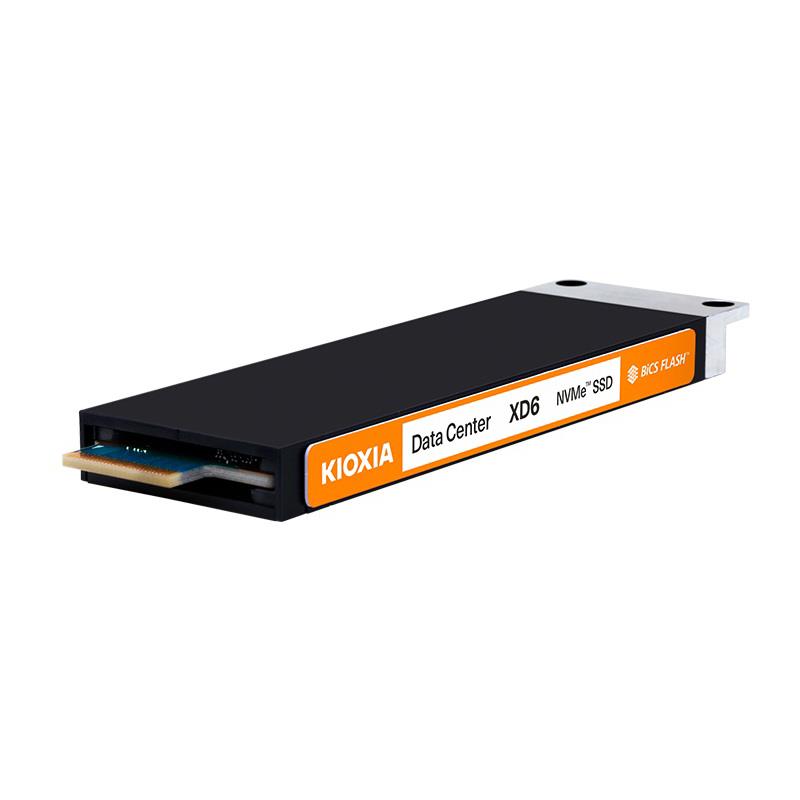

  2. Kioxia KXD6CRJJ3T84 3.84TB NVMe Solid-State Drive PCIe 4.0 E1.S 9.5mm SED TLC 1DWPD - XD6 Series
Kioxia KXD6CRJJ3T84 3.84TB NVMe Solid-State Drive PCIe 4.0 E1.S 9.5mm SED TLC 1DWPD - XD6 Series

Kioxia KXD6CRJJ3T84 3.84TB NVMe Solid-State Drive PCIe 4.0 E1.S 9.5mm SED TLC 1DWPD - XD6 Series

  • Compliant with PCIe 4.0, NVMe 1.3c specifications

  • Power loss protection and end-to-end data protection

  • XD6 Series are designed for cloud and hyperscale data centers

The NVMe Solid-State Drive (SSD) Features 3.84TB Storage Capacity. PCIe 4.0, NVMe 1.3c EDSFF E1.S Form Factor (9.5mm Height) Optimized For Enterprise and Datacenter Applications, Self-Encrypting Drive (SED) TCG-Opal 2.0 BiCS FLASH TLC 1.0DWPD XD6 Series - OEM

Contact us for volume discounts

    This combination does not exist.

    PreOrder
    1 lb
    Email For Price

    Data Center SSD NVMe SSD E1.S


    KIOXIA XD6 Series E1.S SSDs are designed to the Enterprise and Datacenter Standard Form Factor (EDSFF) E1.S specification to address the specific requirements of hyper-scale applications, including the performance, power and thermal requirements of the Open Compute Platform (OCP) NVMe Cloud SSD Specification. Designed to optimize system density and efficiency, the XD6 Series SSDs represent the future of flash storage for servers and storage systems in cloud and hyperscale data centers.

    Extra Specifications for Kioxia KXD6CRJJ3T84 3.84TB NVMe Solid-State Drive PCIe 4.0 E1.S 9.5mm SED TLC 1DWPD - XD6 Series

    Main Specifications
    Device TypeNVMe Solid state drive - internal
    Capacity3.84TB
    Form FactorE1.S 9.5mm
    InterfacePCIe 4.0, NVMe 1.3c
    Interface Speed64 GT/s (PCIe Gen4 x4)
    NAND Flash Memory TypeBiCS FLASH TLC
    Weight75 g Max
    Dimensions (WxDxH)Height: 9.5mm ± 0.35mm, Width: 33.75 ± 0.25mm, length: 118.75 ± 0.55mm
    Performance
    Read6500 MB/s
    Write2350 MB/s
    4KB Random Read880 K IOPS
    4KB Random Write90 K IOPS
    Endurance DWPD1DWPD
    Power
    Power Consumption14 W
    Miscellaneous
    MTBF2,000,000 hours
    Environmental
    Operating EnvironmentTemperature (Operating): 0 °C to 70 °C
    Humidity (Operating): 5 % to 95 % R.H.
    Shock (Operating): 9,800 m/s2 { 1,000 G } ( 0.5 ms duration )
    Temperature (Non-operating): -40 °C to 85 °C
    Vibration (Operating): 21 m/s2 { 2.17 Grms } ( 7 to 800 Hz )
    Vibration (Non-operating): 30 m/s2 { 3.08 Grms } ( 7 to 800 Hz )

    Warranty:3 years
    Coverage:Replacement or repair
    Average Service Time:1-2 weeks
    E-mail:returnservices@wiredzone.com

    If you need Technical Support for this item please contact:

    Provider:Kioxia
    Type of Support:FULL
    Phone No.:949-737-7300
    URL:Click here for Manufacturer Website
