- Supermicro SBI-421E-1T3N SuperBlade Node Dual Intel Xeon Scalable Processors 5th/4th Generation and Intel Xeon CPU Max Series

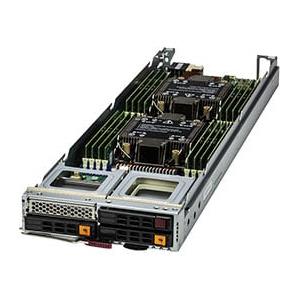

Supermicro SBI-421E-1T3N SuperBlade Node Dual Intel Xeon Scalable Processors 5th/4th Generation and Intel Xeon CPU Max Series
• Enterprise data center
• EDA, Cloud
• High-performance Computing (HPC)
SuperBlade Node, Supports: Dual Socket E (LGA-4677), Supporting Intel Xeon Scalable Processors 5th and 4th Generation and Intel Xeon CPU Max Series With High Bandwidth Memory (HBM), Intel C741 Chipset, Up to 4TB in 16 DIMM slots, RDIMM, On-Board : Intel C741 controller for 2 SATA3 ports, 2 Hot-swap U.2 NVMe/SATA3 Drive Bays, 1 Hot-swap SATA3 Drive Bay, Network Connectivity: Dual 25G Ethernet, Additional 200G/100G InfiniBand or Dual-port 25G Ethernet via Mezzanine Card, (SBI-421E-1T3N + MBD-B13DET)
1. 100 servers per 42U Rack
2. Dual socket E (LGA-4677) supports 5th/4th Gen Intel® Xeon® Scalable processors
3. Intel® C741 chipset
4. 16 DDR5 DIMM slots, 1DPC with 5600MHz ECC RDIMM
5. Support up to 8 drives per blade
6. Dual-port 25G Ethernet (LOM), additional 200G/100G InfiniBand or dual-port 25G Ethernet via mezzanine card
7. OCP 3.0 network card support, e.g. 400G NDR InfiniBand card*

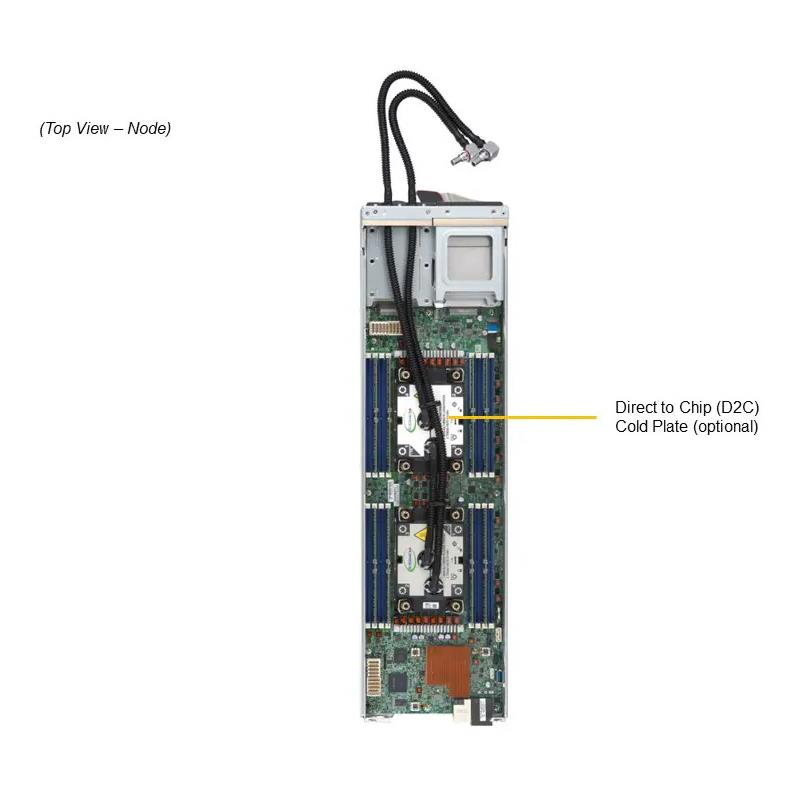

8. Liquid cooling solution is available*
* Please contact your Supermicro sales rep for more info.
Extra Specifications for Supermicro SBI-421E-1T3N SuperBlade Node Dual Intel Xeon Scalable Processors 5th/4th Generation and Intel Xeon CPU Max Series
| Product SKUs | ||
| Product SKUs | ||
| Processor | ||
| CPU | Dual Socket E (LGA-4677) | |
| 4th Gen Intel® Xeon® Scalable Processors | ||
| Intel® Xeon® CPU Max Series with High Bandwidth Memory (HBM) | ||
| Note | Certain CPUs with higher TDP may be supported under specific conditions. Please refer to Thermal Matrix . | |
| Up to 350W TDP CPUs (Direct Liquid Cooling) | ||
| Up to 205W TDP CPUs (Air Cooling at 35°C) | ||
| System Memory | ||
| Memory Capacity | 16 DDR5 DIMM slots | |
| 1DPC with 4800MHz ECC RDIMM | ||
| On-Board Devices | ||
| Chipset | Intel® C741 chipset | |
| Network Controllers | Onboard Dual 25G Ethernet | |
| 1 Mezzanine expansion slot and 3 different optional Mezzanine card. | ||
| 1 OCP 3.0 network card (option) | ||
| Optional: Dual 25G Ethernet / 100G EDR / 200G HDR / 400G NDR* | ||
| MGMT/Security | IPMI 2.0 / KVM over IP / Redfish API/TPM 2.0/Signed Firmware/HW Root of Trust | |
| Graphics | Aspeed AST2600 | |
| System BIOS | ||
| BIOS Type | 256Mb SPI Flash EEPROM with AMI® BIOS | |
| BIOS Features | USB Keyboard support | |
| Plug and Play (PnP) | ||
| PCI 2.2 | ||
| ACPI up to 3.0 | ||
| Dimensions | ||
| Height | 6.5" | |
| Width | 1.75" | |
| Depth | 23.5" | |
| Weight | 9.5 lbs (4.3 kg) | |
| Available Colors | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| LEDs | Power LED | |
| Network Activity LED | ||
| Fault LED | ||
| UID | ||
| Connector | SUV (Serial/USB/Video) Connector | |
| Drive Bays | ||
| Hot-swap | 2 Hot-swap U.2 NVMe/SATA3 drive bays | |
| 1 Hot-swap SATA3 drive bay | ||
| M.2 | 1 M.2 2280 | |
| Optional: 4 M.2 NVMe via mezz card | ||
| Input / Output | ||
| TPM | 1 TPM 2.0 Header | |
| Operating Environment | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| TPM security module(optional, not included) | AOM-TPM-9670V | $ 56.50 | 0 | TPM module (Vertical) TPM 2.0 | ||
| TPM security module(optional, not included) | AOM-TPM-9671V | $ 56.50 | 0 | TPM module (Vertical) TPM 1.2. | ||
| AIOM (PCIe Adapter) | AOM-SB13-C-B | 0 | AIOM PCIe adapter card for B13DET, RoHS | |||
| VROC | AOC-VROCPREMOD | $ 344.50 | 0 | Intel VROC Premium, RAID 0, 1, 5, 10 | ||
| VROC | AOC-VROCSTNMOD | $ 176.00 | 0 | Intel VROC HW key (RSTe) standard upgrade module | ||
| Heatsink / Retention | SNK-P1046VM | $ 95.50 | 0 | Heatsink for Front CPU | ||
| Heatsink / Retention | SNK-P1046V | $ 91.50 | 0 | Heatsink for Rear CPU | ||
| Liquid Cooling Module (OEM only) | SNK-P3053 | 0 | Liquid cooling cold plate (Supermicro) | |||
| Liquid Cooling Module (OEM only) | SNK-P3044 | 0 | Liquid cooling cold plate (3rd party vendor) | |||
| Bracket for Liquid Cooling | MCP-620-41030-0N | 0 | 8U Superblade bracket for liquid cooling | |||
| CPU Carrier | SKT-1333L-0000-FXC | $ 19.00 | 0 | Socket E LGA4677, E1A, XCC, DG 0.7 | ||
| CPU Carrier | SKT-1333L-0001-LTS | $ 18.50 | 0 | Socket E LGA4677, E1A, XCC, DG1.0, NO SHIM, BLK HSG | ||
| CPU Carrier | SKT-1424L-001B-FXC | $ 19.00 | 0 | Socket E E1B LGA 4677 W/SHIM SP MCC, DG0.95 | ||
| CPU Carrier | SKT-1424L-001B-LTS | $ 19.00 | 0 | Socket E E1B LAG 4677 W/SHIM SPR MCC, DG1.0 | ||
| CPU Carrier | SKT-1425H-001C-FXC | 0 | Socket E E1C LGA 4677 W/O SHIM SPR+HBM, DG0.7 | |||
| CPU Carrier | SKT-1425H-001C-LTS | 0 | Socket E E1C LGA 4677 W/O SHIM SPR+HBM, DG0.7 | |||
| SuperBlade Tray | MCP-630-41004-0N | 0 | 4U 10 SuperBlade Tray Extended Top cover for Double-Width | |||
| Networking | AOC-B25G-X4D-B | $ 200.00 | 0 | SuperBlade 2-port 25GbE Mezzanine Card | ||
| Networking | AOC-IBH-X4ES-B | $ 895.00 | 0 | Mezzanine Card for InfiniBand EDR Single Port with mounting bracket | ||
| Networking | AOC-IBH-X6HS-B | $ 1,549.00 | 0 | SuperBlade InfiniBand HDR one port Mezzanine card with mounting bracket | ||
| Software | SFT-DCMS-Single | 0 | DataCenter Management Package (per node license) | |||
| Add-on Card / Module | AOM-B-4M | $ 70.50 | 0 | 4 x M.2 NVMe mezzanine card, 4x 110(80) |
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
