- Supermicro SBI-611E-1C2N SuperBlade Node Single Intel Xeon Scalable Processors 5th/4th Generation and Intel Xeon CPU Max Series

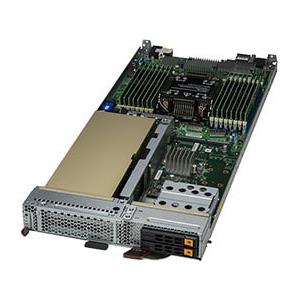

Supermicro SBI-611E-1C2N SuperBlade Node Single Intel Xeon Scalable Processors 5th/4th Generation and Intel Xeon CPU Max Series
• Enterprise data center
• Cloud, CDN, AI/ML
SuperBlade Node, Supports: Single Socket E (LGA-4677), Supporting Intel Xeon Scalable Processors 5th and 4th Generation and Intel Xeon CPU Max Series With High Bandwidth Memory (HBM), Intel C741 Chipset, Up to 4TB in 16 DIMM slots, RDIMM, 2 Hot-swap U.2 NVMe/SAS/SATA, HW RAID with Broadcom 3108, 1 M.2 2280/22110 NVMe/SATA3 drive (onboard), Network Connectivity : Dual 25G Ethernet, Additional Dual-port 25G Ethernet Via Mezzanine Card, (SBI-611E-1C2N + MBD-B13SEE-CPU-25G)
1. 70 servers per 42U rack
2. Single socket E (LGA-4677) supports 5th/4th Gen Intel® Xeon® Scalable processors
3. Intel® C741 chipset
4. 16 DDR5 DIMM slots, 2DPC with 5600MHz ECC RDIMM
5. 2 PCIe Gen5 slots; support 1 FHFL DW GPU or 2 SW PCIe cards
6. Support up to 5 drives per blade and SAS HW RAID
7. Dual-port 25G Ethernet (LOM), additional dual-port 25G Ethernet via mezzanine card
8. Front IO with 2 PCIe 5.0 slots for GPU and network cards
9. Liquid cooling solution is available*
* Please contact your Supermicro sales rep for more info.
Extra Specifications for Supermicro SBI-611E-1C2N SuperBlade Node Single Intel Xeon Scalable Processors 5th/4th Generation and Intel Xeon CPU Max Series
Product SKUs | ||
Product SKUs | ||
Processor | ||
CPU | 4th Gen Intel® Xeon® Scalable Processors | |
Intel® Xeon® CPU Max Series with High Bandwidth Memory (HBM) | ||
Single Socket E (LGA-4677) | ||
Note | Up to 250W TDP CPUs (Air Cooling at 35°C) | |
Certain CPUs with higher TDP may be supported under specific conditions. Please refer to Thermal Matrix . | ||
Up to 350W TDP CPUs (Direct Liquid Cooling) | ||
System Memory | ||
Memory Capacity | 2DPC with 4800MHz ECC RDIMM | |
16 DDR5 DIMM slots | ||
On-Board Devices | ||
Chipset | Intel® C741 chipset | |
Network Controllers | Onboard Dual 25G Ethernet | |
1 Mezzanine expansion slot | ||
Optional: Dual 25G Ethernet / 100G EDR / 200G HDR / 400G NDR | ||
MGMT/Security | IPMI 2.0 / KVM over IP / Redfish API/TPM 2.0/Signed Firmware/HW Root of Trust | |
Graphics | Aspeed AST2600 | |
System BIOS | ||
BIOS Type | 256Mb SPI Flash EEPROM with AMI® BIOS | |
BIOS Features | USB Keyboard support | |
Plug and Play (PnP) | ||
PCI 2.2 | ||
ACPI up to 3.0 | ||
Dimensions | ||
Height | 9.75" | |
Width | 1.75" | |
Depth | 23.5" | |
Weight | 12.1 lbs (5.49 kg) | |
Available Colors | Black | |
Front Panel | ||
Buttons | Power On/Off button | |
LEDs | Power LED | |
Network Activity LED | ||
Fault LED | ||
UID | ||
Connector | SUV (Serial/USB/Video) Connector | |
Expansion Slots (per Node) | ||
PCIe | 1 PCIe Gen5 x16 slot, 1 PCIe Gen5 x8 slot, support 1 FHFL DW GPU or 2 SW PCIe cards | |
Drive Bays | ||
Hot-swap | 2 Hot-swap U.2 NVMe/SAS/SATA; HW RAID with Broadcom 3108 | |
M.2 | 1 M.2 2280/22110 NVMe/SATA3 drive (onboard) | |
Input / Output | ||
TPM | 1 TPM 2.0 Header | |
Operating Environment | ||
RoHS | RoHS Compliant | |
Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
Operating Relative Humidity: 8% to 90% (non-condensing) | ||
Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) |
Name | Part Number | Price | Add to Cart | Qty. | Description | |
---|---|---|---|---|---|---|
TPM security module(optional, not included) | AOM-TPM-9670V | $ 56.50 | 0 | TPM module (Vertical) TPM 2.0 | ||
TPM security module(optional, not included) | AOM-TPM-9671V | $ 56.50 | 0 | TPM module (Vertical) TPM 1.2. | ||
VROC | AOC-VROCPREMOD | $ 344.50 | 0 | Intel VROC Premium, RAID 0, 1, 5, 10 | ||
VROC | AOC-VROCSTNMOD | $ 176.00 | 0 | Intel VROC HW key (RSTe) standard upgrade module | ||
Heatsink / Retention | SNK-P1046V | $ 91.50 | 0 | Heatsink for Rear CPU | ||
CPU Carrier | SKT-1333L-0000-FXC | $ 19.00 | 0 | Socket E LGA4677, E1A, XCC, DG 0.7 | ||
CPU Carrier | SKT-1333L-0001-LTS | $ 18.50 | 0 | Socket E LGA4677, E1A, XCC, DG1.0, NO SHIM, BLK HSG | ||
CPU Carrier | SKT-1424L-001B-FXC | $ 19.00 | 0 | Socket E E1B LGA 4677 W/SHIM SP MCC, DG0.95 | ||
CPU Carrier | SKT-1424L-001B-LTS | $ 19.00 | 0 | Socket E E1B LAG 4677 W/SHIM SPR MCC, DG1.0 | ||
CPU Carrier | SKT-1425H-001C-FXC | 0 | Socket E E1C LGA 4677 W/O SHIM SPR+HBM, DG0.7 | |||
CPU Carrier | SKT-1425H-001C-LTS | 0 | Socket E E1C LGA 4677 W/O SHIM SPR+HBM, DG0.7 | |||
Networking | AOC-B25G-6X4D | $ 174.00 | 0 | Dual-port 25G Mezz card for SuperBlade 6U Chassis (Mellanox ConnectX-4 Lx EN) | ||
Networking | AOC-B25G-6CVL | 0 | 25G DUAL PORT MEZZANINE CARD,Intel Columbiaville, E810-XXVAM2 | |||
Software | SFT-DCMS-Single | 0 | DataCenter Management Package (per node license) |
Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
Coverage: | Replacement or repair |
Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
