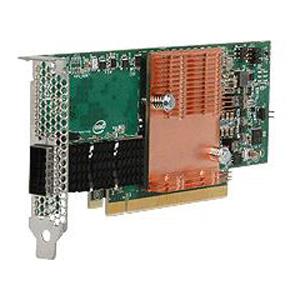

- Supermicro AOC-SHFI-I1C 1-Port Omni-Path Host Interface Adapter
Supermicro AOC-SHFI-I1C 1-Port Omni-Path Host Interface Adapter
1-Port Omni-Path Host Fabric Interface Adapter - PCI-E 3.0 x16, Standard Low-Profile (Can be ordered with Supermicro System ONLY - OEM)
• 100Gbps link speed
• Single QSFP28 Connector
• PCI Express 3.0 x16
• Standard Low-Profile Form Factor
• End-to-end fabric optimization
• Scalable, low latency MPI (less than 1µs end-to-end)
• High MPI message rates (160mmps)
• Efficient storage communication with new 8K and 10K MTUs
• Congestion control and QoS (with deterministic latency)
• Low Power Consumption
• Scalable to tens-of-thousands of nodes
• Open Fabrics Alliance (OFA) software
• MSI-X interrupt handling for high performance on multi-core hosts
Extra Specifications for Supermicro AOC-SHFI-I1C 1-Port Omni-Path Host Interface Adapter
Omni-Path Host Fabric Adapter | ||
Omni-Path Host Fabric Adapter | High Performance Computing (HPC) solutions require the highest levels of performance, scalability, and availability to power complex application workloads. Designed specifically for HPC, the AOC-SHFI-i1C, uses an advanced "on-load" design that automatically scales fabric performance with rising server core counts, making these adapters ideal for today's increasingly demanding workloads. This product is only available through Supermicro. | |
Compatibility Matrices | ||
Switches | Supermicro Omni-Path Switch SSH-C48Q:https://www.supermicro.com/products/accessories/Networking/SSH-C48Q.cfm | |
Cables & Transceivers | Networking Cables & Transceivers :https://www.supermicro.com/support/resources/AOC/Networking_Cables_Transceivers_Compatibility.cfm | |
Compliance/Environmental | ||
Compliance/Environmental | • Complies with REACH Regulation (EC) No 1907/2006 • Complies with RoHS II Directive 2011/65/EU of the European Parliament | |
Downloads | ||
Datasheet | [ https://www.supermicro.com/manuals/other/datasheet-AOC-SHFI-i1C.pdf ] | |
Specification | ||
Specification | • Bus interface - PCI Express Gen3 x16 • Device type - End point • Advanced interrupts - MSI-X - INTx • ASIC - Single Intel® OP HFI ASIC • Max Data Rate - 100 Gbps - PCIe x16 • Virtual Lanes - Configurable from one to eight VLs plus one management VL • MTU - Configurable MTU size of 2 KB, 4 KB, 8 KB, or 10KB • Interfaces - Supports QSFP28 quad small form factor pluggable passive copper, optical transceivers, and active optical cables • Port - One Intel® OP 4X Host Fabric Interface QSFP28 • LED - Link status indicator (Green) • Software Operating Systems - Red Hat Enterprise Linux - SUSE Enterprise Linux Server - CentOS - Scientific Linux • Power Consumption - Copper: Typical 7.4W, Maximum 11.7W - Optical: Typical 10.6W, Maximum 14.9W (Class 4 Optics) • Physical Dimensions - Card PCB: 2.713 in x 6.6 in (H x L) - Standard Bracket: 0.725 in x 4.725 in - Low Profile Bracket: 0.725 in x 3.118 in • Operating Conditions - Operating temperature: 0°C to 55°C (32°F to 131°F) - Storage temperature: -40°C to 70°C (-40°F to 158°F) - Operating humidity: 5% to 85% non-condensing - Storage humidity: 5% to 95% non-condensing - Airflow requirements: 200 LFM at 55°C local ambient |
Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
Coverage: | Replacement or repair |
Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
