- Supermicro AOC-MGP-I2 2-Port Gigabit Ethernet Controller Card - Super I/O Module (SIOM) Form Factor

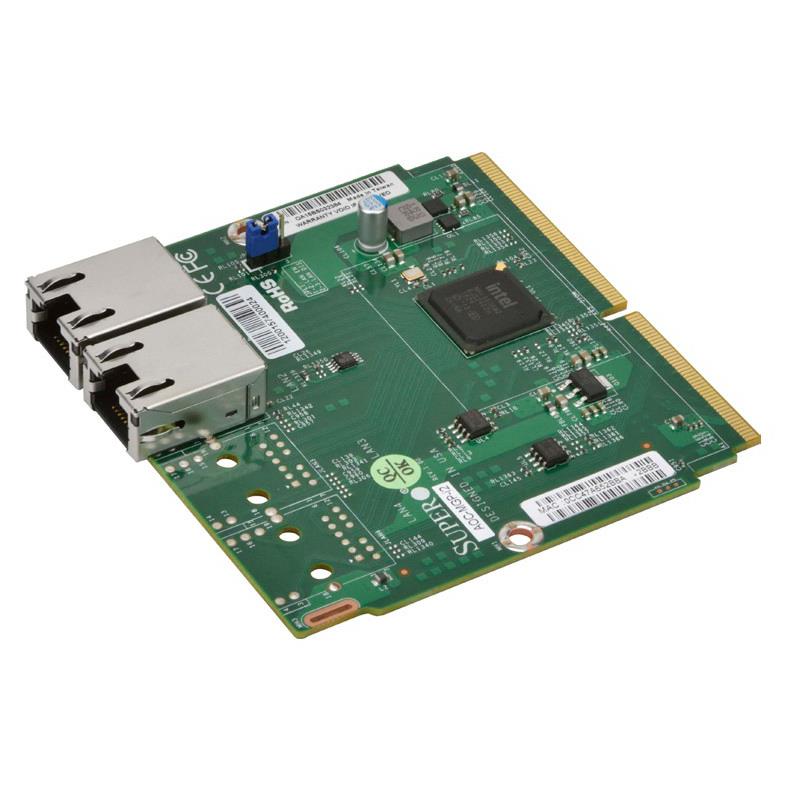

Supermicro AOC-MGP-I2 2-Port Gigabit Ethernet Controller Card - Super I/O Module (SIOM) Form Factor
• Dual RJ45 Connectors
• Asset Management Features
• NC-SI for Remote Management
• Optimized for 2U/4U Storage Servers
2-Port Gigabit Ethernet Controller Card - Super I/O Module (SIOM) Form Factor, Intel i350-AM4, Dual RJ45 ports, Intel I/O Acceleration Technology (Intel I/OAT) - Swappable bracket for 2U+ chassis Can be ordered in bundle with Supermicro System ONLY
• PXE Boot Support
• Jumbo Frames support
• Intel® i350 GbE controller
• iSCSI Remote Boot Support
• Asset Management Features
• NC-SI for Remote Management
• Energy Efficient Ethernet (EEE)
• Dual RJ45 Connectors
• Super I/O Module (SIOM) Form Factor
• Support for most Network Operating Systems
• VMDq and SR-IOV for Virtualized Environments
Extra Specifications for Supermicro AOC-MGP-I2 2-Port Gigabit Ethernet Controller Card - Super I/O Module (SIOM) Form Factor
| On-Board Devices | ||
| Chipset | Intel i350-AM4 | |
| Main Specifications | ||
| Device Type | SIOM Networking Adapters | |
| Dimensions (WxDxH) | Card PCB dimensions: 92mm (3.62in) x 87.1mm (3.43in) (W x D) | |
| Form Factor | Super I/O Module (SIOM) | |
| Storage Controller | ||
| Connectivity Technology | Wired | |
| Miscellaneous | ||
| Features | Jumbo Frames support | |
| 1Gb/s Ethernet IEEE 802.3, 802.3u, 802.3ab PHY specifications Compliant | ||
| IEEE 1588 protocol and 802.1AS implementation | ||
| IEEE 802.3x and 802.3z compliant flow control support | ||
| Automatic cross-over detection function (MDI/MDI-X) | ||
| IEEE 802.3 auto-negotiation for speed, duplex, and flow control | ||
| Optimized for 2U / 4U Storage Servers | ||
| Cables Required | Support RJ45 Category 5/5e up to 100m | |
| Designed For | 2U Storage SSG-2028R-NR48N, 2U Storage SSG-2028R-E1CR48N, 2U Storage SSG-2028R-E1CR48L, 4U Storage SSG-6048R-E1CR60N, 4U Storage SSG-6048R-E1CR60L, 2U Storage SSG-6028R-E1CR24N, 2U Storage SSG-6028R-E1CR24L | |
| Included Accessories | 1x BKT-0086L | |
| RoHS | RoHS Compliant 6/6, Pb Free | |
| Vendor Compatible Products | Supermicro motherboards with Super I/O Module slot | |
| Supermicro server systems with Super I/O Module slot | ||
| Networking | ||
| Remote Management Protocol | Preboot eXecution Environment (PXE) support | |
| Management Features | NC-SI for remote management | |
| iSCSI Remote Boot Support | ||
| Asset Management support on Supermicro platforms | ||
| Controller asset tags such as part number, revision, serial number, and MAC addresses | ||
| Port Quantity | Dual RJ45 Ports | |
| Virtualization Features | PC-SIG SR-IOV support | |
| VM to VM Packet forwarding (Packet Loopback) | ||
| Flexible Port Partitioning | ||
| IEEE 802.1q VLAN support | ||
| IEEE 802.1q advanced packet filtering | ||
| Power | ||
| Comsumtion Operational | Typical 3W, Maximum 3.7W | |
| Environmental Parameters | ||
| Operating Temperature | Operating temperature: 0C to 55C (32F to 131F) | |
| Storage temperature: -40C to 70C (-40F to 158F) | ||
| Storage humidity: 90% non-condensing relative humidity at 35C | ||
| Software / System Requirements | ||
| OS Supports | Windows Server 2012 R2, 2012, 2008 R2 (x64 Edition) | |
| Windows 8.1, 8, 7 (x64 Edition) | ||
| RedHat Linux, SUSE Linux | ||
| FreeBSD, UEFI, VMWare | ||
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
