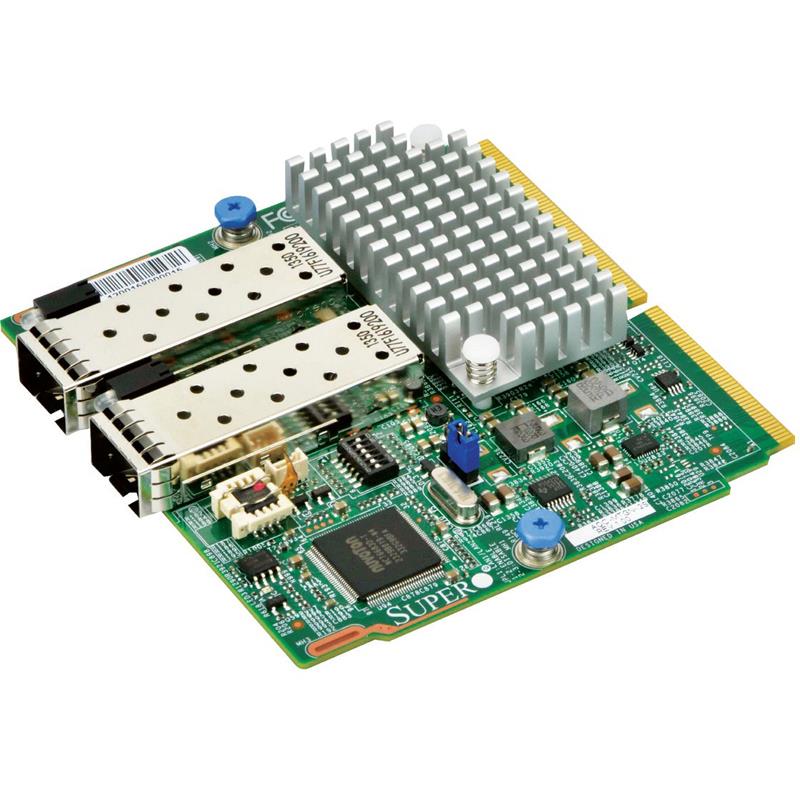

Supermicro AOC-MTGN-I2S SIOM 2-port 10G SFP+, Intel 82599ES

• Dual SFP+ Ethernet Controller
• Optimized for 2U Storage Servers
• Fibre Channel over Ethernet Support
• Support for most Network Operating Systems

2-Port SFP+ 10Gb Ethernet Controller, Super I/O Module (SIOM) Form Factor, Intel 82599ES 10GbE controller, Fibre Channel over Ethernet (FCoE) support, Load balancing on multiple CPUs, Swappable bracket for 2U+ chassis Can be ordered in bundle with Supermicro System ONLY


    211.00211.00211.0USD

    211.00

    Option not available

    FREE SHIPPING

    This combination does not exist.

    Add to Cart


    • Dual SFP+ Connectors
    • Intel QuickData Technology
    • Asset Management Features
    • iSCSI Remote Boot Support
    • NC-SI for Remote Management
    • Load Balancing on Multiple CPUs
    • Super I/O Module (SIOM) Form Factor
    • Fibre Channel over Ethernet (FCoE) Support
    • Support for most Network Operating Systems
    • Support both Direct Attach Copper and Fiber Cables
    • VMDq, Next-Generation VMDq, and PC-SIG SR-IOV for Virtualized Environments

    Extra Specifications for Supermicro AOC-MTGN-I2S SIOM 2-port 10G SFP+, Intel 82599ES

    Main Specifications
    Device type SIOM Networking Card Adapters
    Dimensions (WxDxH) Card PCB dimensions: 92mm (3.62in) x 87.1mm (3.43in) (W xD)
    Form Factor Super I/O Module (SIOM)
    Networking
    Data Transfer Rate 10 Gigabit
    Management Features Preboot eXecution Environment (PXE) support
      Simple Network Management Protocol (SNMP) and Remote
      Network Monitoring (RMON) statistics counters
      iSCSI remote boot
      NC-SI for remote management
      Asset Management support on Supermicro® platforms
      Controller asset tags such as part number, revision, serial number, and MAC addresses
    Port Quantity Dual SFP+ Connectors
    Virtualization Features VMDq, Next-Generation VMDq (64 queues per port)
      PC-SIG SR-IOV implementation (64 virtual functions per port)
      Advanced Packet Filtering
      VLAN support to allow creation of multiple VLAN segments
      VXLAN through Software
    Power
    Comsumtion Operational Typical power consumption: 6.2W
      Maximum power consumption: 7.2W
    Environmental Parameters
    Operating Temperature Operating temperature: 0°C to 55°C (32°F to 131°F)
      Storage temperature: -40°C to 70°C (-40°F to 158°F)
      Storage humidity: 90% non-condensing relative humidity at 35°C
    Software / System Requirements
    OS Supports Windows Server 2012 R2, 2012, 2008 R2 (x64 Edition)
      Windows 8.1, 8, 7 (x64 Edition)
      RedHat Linux
      SUSE Linux
      FreeBSD
      UEFI
      VMware
    Miscellaneous
    Cables Type Cables Support: SFP+ direct attach twinaxial copper cables up to 7m
      Cables Support: Fiber-optic cables (with required optional SFP+ transceivers)
    Designed For 2U Storage SSG-2028R-NR48N, 2U Storage SSG-2028R-E1CR48N, 2U Storage SSG-2028R-E1CR48L, 4U Storage SSG-6048R-E1CR60N, 4U Storage SSG-6048R-E1CR60L, 2U Storage SSG-6028R-E1CR24N, 2U Storage SSG-6028R-E1CR24L
    Features Optimized for 2U Storage Servers
    Included Accessories BKT-0090L (Swappable bracket for 2U+ chassis)
    ROHS RoHS Compliant 6/6, Pb Free
