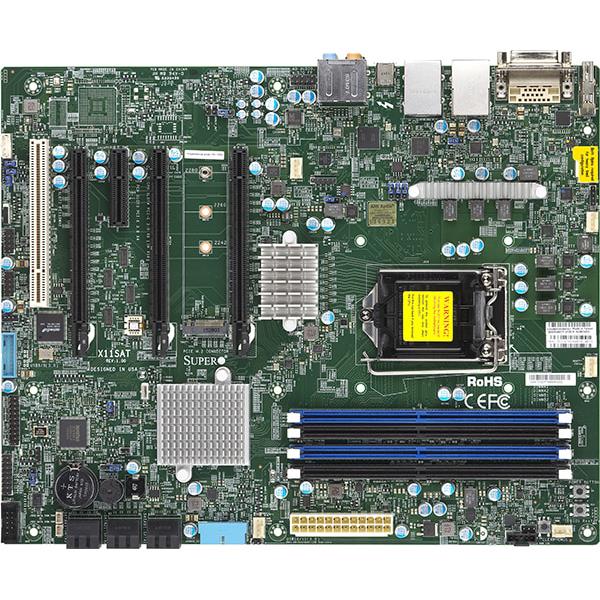

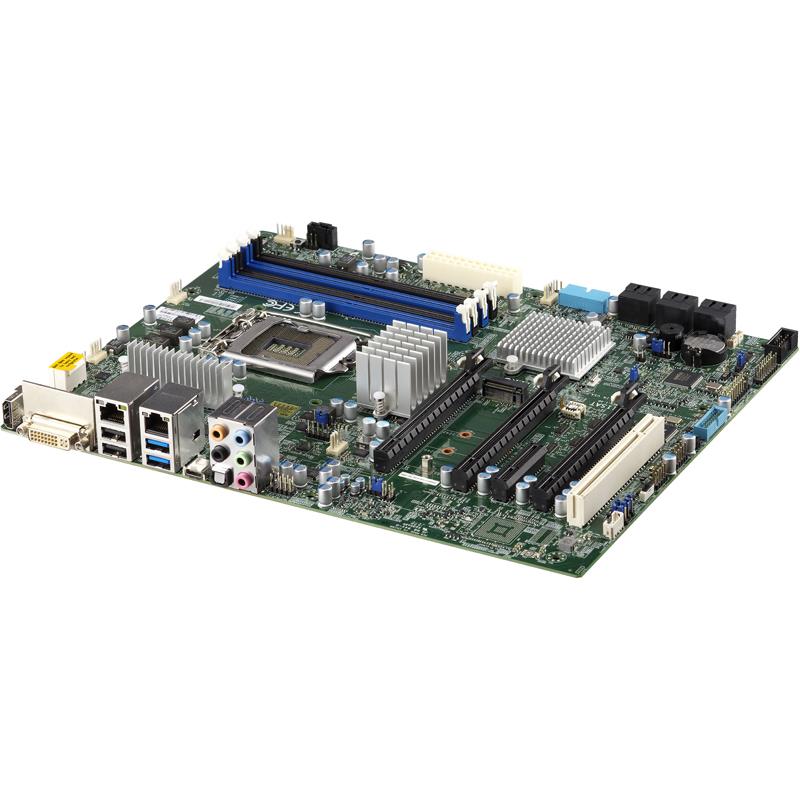

Supermicro X11SAT Motherboard ATX for up to Xeon E3-1200v5
Supports single Intel Xeon E3-1200 v5/v6 processor
Features Intel C236 controller for 6 SATA3 ports RAID
Up to 64GB Unbuffered ECC/non-ECC UDIMM DDR4 memory across 4 DIMM slots
Motherboard ATX Single Socket H4 (LGA 1151) for Intel Xeon E3-1200 v5/v6, Intel 6th/7th Gen Core i7/i5/i3 series - Supports up to 64GB DDR4 ECC/Non-ECC UDIMM up to 2133MHz (4x 288-pin slots) - On-Board : SATA3 6Gbps via C236 controller (RAID), IPMI 2.0, 2x Gigabit LAN, VGA, ALC 888S HD Audio - MBD-X11SAT-O (Retail Box)
1. Single socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v5/v6, Intel® 6th/7th Gen. Core™ i7/i5/i3 series, Intel® Celeron® and Intel® Pentium®
2. Intel® C236 chipset
3. Up to 64GB Unbuffered ECC/non-ECC UDIMM DDR4 2400MHz; 4 DIMM slots
4. 3 PCIe 3.0 x16 (run at 16/NA/16 or 16/8/8), 1 PCIe 3.0 x1 (in x4), and 1 5V PCI 32-bit slots
5. 6 SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10
6. M.2 NGFF connector
7. Single GbE LAN with Intel® i210-AT, Single GbE LAN with Intel® i219LM
8. 6 USB 3.0 (2 rear + 4 via header(s)) , 4 USB 2.0 (2 rear + 2 via header(s)), 1 USB 3.1 (10Gbps) Type C ports (rear, share with Thunderbolt and display port)
9. I/O: 1 COM, TPM header
Extra Specifications for Supermicro X11SAT Motherboard ATX for up to Xeon E3-1200v5
| System Memory | ||
| DIMM Sizes | 4GB, 8GB, 16GB | |
| Error Detection | Corrects single-bit errors | |
| Detects double-bit errors (using ECC memory) | ||
| Memory Capacity | 4 DIMM slots | |
| Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2400MHz | ||
| Memory Voltage | 1.2V | |
| Memory Type | 2400/2133/1866/1600 MT/s SDRAM 72-bit, 288-pin gold-plated DIMMs | |
| On-Board Devices | ||
| Chipset | Intel® C236 | |
| Network Controllers | Single LAN with Intel® Ethernet Controller I210-AT, + Single Intel Ethernet PHY i219LM | |
| SATA | Intel® C236 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10 | |
| Audio | ALC 888S HD Audio | |
| System BIOS | ||
| BIOS Features | ACPI 5.0 | |
| USB Keyboard support | ||
| Plug and Play (PnP) | ||
| DMI 2.3 | ||
| RTC (Real Time Clock) Wakeup | ||
| PCI 3.0 | ||
| Hardware BIOS Virus protection | ||
| SMBIOS 3.0 | ||
| UEFI 2.3.1 | ||
| BIOS Type | AMI UEFI | |
| Management | ||
| Power Configurations | Power-on mode for AC power recovery, ACPI Power Management, Keyboard Wakeup from Soft-Off, CPU Fan auto-off in sleep mode | |
| Software | SuperDoctor® 5, AMT, vPro, Watchdog | |
| Product SKUs | ||
| Product SKUs | - Discontinued SKU (EOL). Please contact sales-rep for replacement SKUs. | |
| Physical Stats | ||
| Form Factor | ATX | |
| Dimension | 12" x 9.6" (30.48cm x 24.38cm) | |
| Processor | ||
| CPU | Single Socket LGA-1151 (Socket H4) supported, CPU TDP supports Up to 95W TDP | |
| Intel® Xeon® processor E3-1200 v6/v5, Intel® 6th/7th Generation Core™ i3 series, Intel® 6th/7th Generation Core™ i5 series, Intel® 6th/7th Generation Core™ i7 series | ||
| Input / Output | ||
| USB | 4 USB 2.0 port(s) (2 rear; 2 via header) | |
| 6 USB 3.1 Gen1 port(s) (2 rear; 4 via header) | ||
| 1 USB 3.1 Gen2 port(s) (1 rear type C) | ||
| Video Output | 1 DP (DisplayPort) port(s), 1 HDMI port(s), 1 DVI - D port(s) | |
| Serial Port | 1 COM Port(s) (1 header) | |
| TPM | 1 TPM Header | |
| Expansion Slots | ||
| PCIe | 1 PCIe 3.0 x1 | |
| 3 PCIe 3.0 x16, | ||
| 1 - 5V PCI 32bit | ||
| ***3 PCIex16 slots are running at 16/NA/16 or 16/8/8.*** ***PCIe x1 is in x4 slot*** | ||
| M.2 | Key: M-Key | |
| M.2 Interface: 1 PCIe 3.0 x4 | ||
| Form Factor: 2242/2260/2280 | ||
| PC Health Monitoring | ||
| Voltage | VBAT, Monitors CPU voltages, Chassis intrusion header, +5V standby, +5V, +3.3V, +12V | |
| LED | UID/Remote UID | |
| CPU / System Overheat LED | ||
| Suspend static indicator LED | ||
| Temperature | CPU thermal trip support | |
| Thermal Monitor 2 (TM2) support | ||
| PECI | ||
| I2C temperature sensing logic | ||
| FAN | Fan speed control | |
| Overheat LED indication | ||
| 5x 4-pin fan headers (up to 5 fans) | ||
| Other Features | WOL, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, ATX Power connector, 8-pin 12v DC power connector, Intel Smart Response Technology | |
| Operating Environment | ||
| Operating Temperature Range | 0°C - 50°C (32°F - 122°F) | |
| Non-Operating Temperature Range | -20°C - 60°C (-4°F - 140°F) | |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
