| System Memory |
| DIMM Sizes | 4GB, 8GB, 16GB |
| Error Detection | Corrects single-bit errors |
| Memory Capacity | 4 DIMM slots |
| 64GB Unbuffered ECC UDIMM, DDR4-2400MHz |
| Memory Voltage | 1.2V |
| Memory Type | 2400/2133/1866/1600 MT/s SDRAM 72-bit, 288-pin gold-plated DIMMs |
| On-Board Devices |
| Chipset | Intel® C236 |
| Graphics | 1 ASPEED AST1400 port(s) |
| Network Controllers | Dual LAN with Intel® Ethernet Controller I210-AT |
| SATA | Intel® C236 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10 |
| System BIOS |
| BIOS Features | SMBIOS 2.7.1 |
| USB Keyboard support |
| Plug and Play (PnP) |
| DMI 2.3 |
| Hardware BIOS Virus protection |
| UEFI 2.3.1 |
| PCI 2.3 |
| ACPI 1.0 / 2.0 / 3.0 / 4.0 |
| APM 1.2 |
| BIOS Type | 128MB SPI Flash EEPROM with AMI BIOS |
| Management |
| Power Configurations | Power-on mode for AC power recovery, ACPI Power Management |
| Software | SuperDoctor® 5, NMI, SSM , Watchdog |
| Product SKUs |

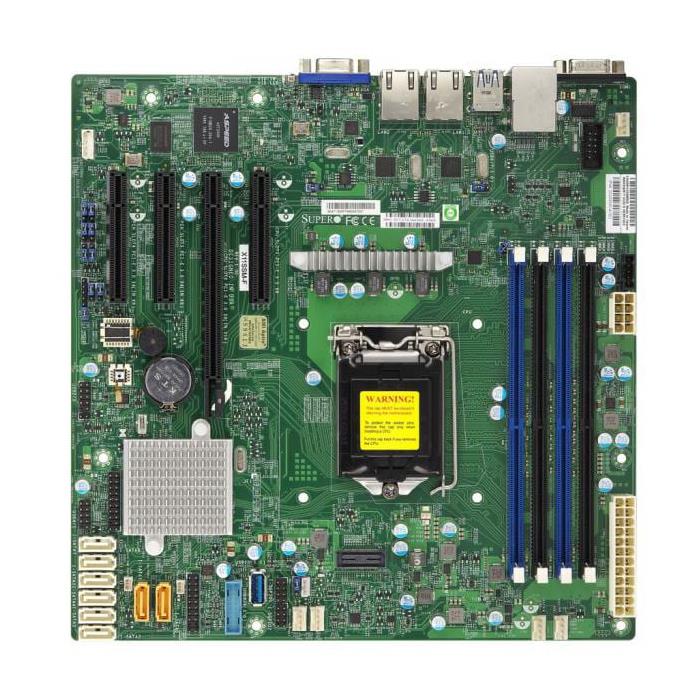

| Product SKUs | MBD-X11SSM |
| Physical Stats |
| Form Factor | Micro-ATX |
| Dimension | 9.6" x 9.6" (24.38cm x 24.38cm) |
| Processor |
| CPU | Intel® Celeron®, Intel® Pentium®, Intel® 7th/6th Generation Core i3 series, Intel® Xeon® processor E3-1200 v6/v5 |
| Single Socket LGA-1151 (Socket H4) supported, CPU TDP supports Up to 80W TDP |
| Input / Output |
| USB | 2 USB 3.0 port(s) (2 rear) |
| 3 USB 3 port(s) (1 Type A; 2 via header) |
| 6 USB 2.0 port(s) (4 via header; 2 rear) |
| Video Output | 1 VGA port(s) |
| Serial Port | 2 COM Port(s) (1 header; 1 rear) |
| TPM | 1 TPM Header |
| Expansion Slots |
| PCIe | 1 PCIe 3.0 x8, |
| 1 PCIe 3.0 x8 (in x16 slot), |
| 2 PCIe 3.0 x4 (in x8 slot) |
| PC Health Monitoring |
| Voltage | VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chassis intrusion header, +5V standby, +5V, +3.3V, +12V |
| LED | UID/Remote UID |
| CPU / System Overheat LED |
| Temperature | Monitoring for CPU and chassis environment |
| CPU thermal trip support |
| Thermal Monitor 2 (TM2) support |
| PECI |
| FAN | Fan speed control |
| Thermal control tachometer fan connectors |
| Overheat LED indication |
| 5x 4-pin fan headers (up to 5 fans) |
| Other Features | WOL |
| CPU thermal trip support for processor protection |
| Control of power-on for recovery from AC power loss |
| Operating Environment |
| Operating Temperature Range | 0°C - 50°C (32°F - 122°F) |
| Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) |
| Non Operating Relative Humidity Range | 5% - 95% (non-condensing) |
