| System Memory |
| Memory Capacity | 4 DIMM slots |
| Up to 512GB ECC LRDIMM, DDR4-2933MHz; Up to 256GB ECC RDIMM, DDR4-2933MHz; Up to 512GB ECC/non-ECC , DDR4-2933MHz |
| Memory Type | 2933/2666/2400 MT/s ECC/non-ECC DDR4 LRDIMM, RDIMM |
| DIMM Sizes | LRDIMM: 64GB, 128GB |
| RDIMM: 8GB, 16GB, 32GB, 64GB |
| UDIMM: 4GB, 8GB, 16GB, 32GB |
| Memory Voltage | 1.2V |
| Error Detection | Corrects single-bit errors |
| Detects double-bit errors (using ECC memory) |
| On-Board Devices |
| Chipset | System on Chip |
| IPMI | ASPEED AST2600 BMC |
| Graphics | 1 Aspeed AST2600 BMC port(s) |
| Network Controllers | Dual LAN with 25G SFP28 LAN via SoC |
| Dual LAN with Intel® X550 10GBase-T Ethernet Controller |
| Quad LAN with Intel® i350 Gigabit Ethernet Controller |
| SATA | 4 SATA ports via OCuLink (or PCIE3.0 x4 for NVMe) |
| SoC controller for 2 SATA3 (6 Gbps) ports; RAID 0,1 |
| Input / Output |
| SATA | 2 SATA3 (6Gbps) port(s) |
| LAN | 4 RJ45 Gigabit Ethernet LAN ports |
| 2 RJ45 10GBase-T ports |
| 2 SFP28 25 Gigabit Ethernet LAN ports |
| Video Output | 1 VGA D-Sub Connector port(s) |
| DOM | 1 SATA DOM (Disk on Module) power connector support |
| USB | 2 USB 3 port(s) (2 rear type A) |
| 4 USB 2 port(s) (4 via header) |
| Serial Port | 1 COM Port(s) (1 header) |
| TPM | 1 TPM Header & Chip both |
| System BIOS |
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| BIOS Features | Plug and Play (PnP) |
| UEFI 2.7 |
| ACPI 6.3 |
| PCI FW 3.0 |
| SMBIOS 3.3 |
| Management |
| Software | Watchdog, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, SuperDoctor® 5, SSM, NMI, SUM, SPM |
| Power Configurations | ATX Power connector, +12V DC Power Input, CPU thermal trip support for processor protection, Power-on mode for AC power recovery |
| PC Health Monitoring |
| Voltage | 3.3V standby, +5V standby, +5V, +3.3V, +12V, Memory Voltages, Monitors CPU Core Voltages |
| LED | UID/Remote UID |
| BMC/IPMI Heartbeat LED |
| Overheat/Fan Fail/PWR Fail LED |
| Power Indicator LED |
| LAN temperature |
| Temperature | CPU thermal trip support |
| peripheral temperature |
| System temperature |
| Memory temperature |
| NVMe temperature |
| Platform Environment Control Interface (PECI)/TSI |
| Other Features | UID, RoHS, Node Manager Support, Chassis intrusion header, ATX Power connector, ACPI power management, 8-pin 12v DC power connector, 12V DC or ATX Power Source, Intel® QuickAssist Technology |
| FAN | 6x 4-pin fan headers (up to 6 fans) |
| System level control, PWM fan speed control, Fan speed control, 6 fans with tachometer status monitoring, Overheat LED indication, Dual Cooling Zones |
| Product SKUs |

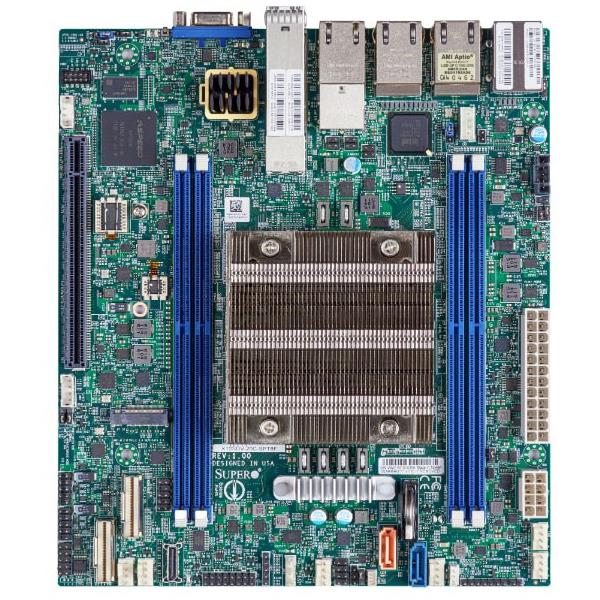

| Product SKUs | MBD-X12SDV-14C-SPT8F |
| Physical Stats |
| Form Factor | Micro-ATX |
| Dimension | 7.5" x 8.5" (19.05cm x 21.59cm) |
| Processor |
| CPU | Intel® Xeon® Processor D-2766NT |
| Single Socket FCBGA-2579 supported, CPU TDP supports Up to 97W TDP |
| Core | Up to 14 cores / 20MB Cache |
| Expansion Slots |
| PCIe | 1 PCIe 4.0 x16, |
| 1 PCIe 3.0 x4 (or 4x SATA), via Oculink, |
| 2 PCIe 4.0 x8, via SlimSAS |
| M.2 | Key: M-Key |
| Form Factor: 2242/2280 |
| M.2 Interface: 1 SATA/PCIe 3.0 x4 |
| Operating Environment |
| Operating Temperature Range | 0°C - 60°C (32°F - 140°F) |
| Non-Operating Temperature Range | -40°C - 85°C (-40°F - 185°F) |
| Operating Relative Humidity Range | 10% - 85% (non-condensing) |
| Non Operating Relative Humidity Range | 10% - 95% (non-condensing) |
