| System Memory |
| Memory Capacity | 16 DIMM slots |
| Up to 4TB 3DS ECC RDIMM, DDR5-4800MHz |
| DIMM Sizes | RDIMM: 16GB, 32GB, 64GB, 128GB, 256GB |
| 16GB, 32GB, 64GB, 128GB, 256GB |
| Memory Voltage | 1.1V |
| Error Detection | Detects double-bit errors (using ECC memory) |
| Memory Type | 4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) 256GB 4800MT/s |
| On-Board Devices |
| Chipset | Intel® C741 |
| Audio | Realtek ALC888S |
| Network Controllers | Dual LAN with Broadcom BCM57416 10GBase-T |
| SATA | 8 SATA3 ports; RAID 0, 1, 5, 10 |
| 2 SATA3 ports; RAID 0,1 |
| Input / Output |
| SATA | 2 SATA3 (6Gbps) port(s) |
| 8 SATA3 (6Gbps) port(s) |
| Video Output | 1 VGA D-Sub Connector port(s) |
| USB | 2 USB 2.0 port(s) (2 via header) |
| 6 USB 3.0 port(s) (4 rear type A; 2 via header) |
| 1 USB 3.1 Gen2 port(s) (1 via header) |
| TPM | TPM Chip |
| Others | 2 MCIO PCIe 5.0 x8 |
| System BIOS |
| BIOS Type | AMI 32MB AMI UEFI |
| BIOS Features | Plug and Play (PnP) |
| ACPI 6.4 |
| PCI FW 3.2 |
| SMBIOS 2.8/3.5 |
| UEFI 2.8A |
| Management |
| Software | SuperDoctor® 5, SPM, SUM, SSM, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, Watchdog, SMCIPMITool, Trusted Platform Module (TPM), CPU thermal trip support for processor protection, Wake-on-LAN |
| PC Health Monitoring |
| Voltage | +5V standby, +5V, +3.3V, +12V, +3.3V standby |
| LED | UID/Remote UID |
| Power LED |
| BMC/IPMI Heartbeat LED |
| Temperature | CPU thermal trip support |
| peripheral temperature |
| System temperature |
| Memory temperature |
| CPU temperature |
| PCH temperature |
| Platform Environment Control Interface (PECI)/(TSI) |
| Vcore |
| Other Features | Chassis intrusion detection |
| M.2 NGFF connector |
| Control of power-on for recovery from AC power loss |
| Node Manager Support |
| ACPI power management |
| FAN | 13x 4-pin fan headers (up to 13 fans) |
| Fan speed control, Overheat LED indication, CPU thermal trip support, 13x fans with tachometer monitoring, Thermal Monitor 2 (TM2) support, PECI, Monitoring for CPU and chassis environment |
| Product SKUs |

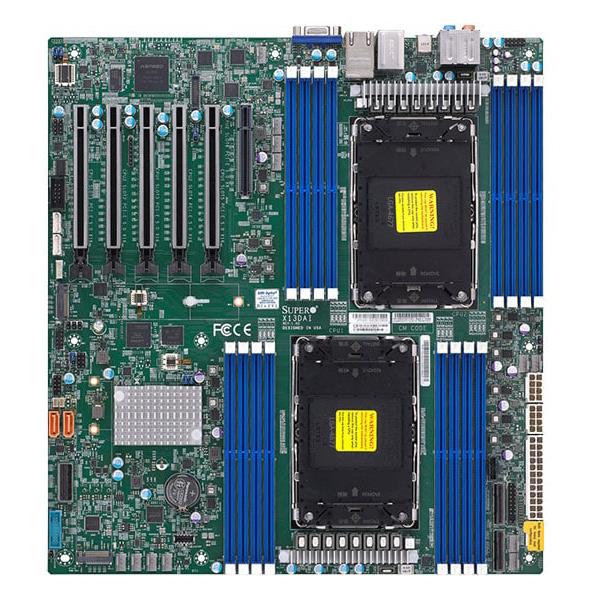

| Product SKUs | MBD-X13DAI-T |
| Physical Stats |
| Form Factor | EATX |
| Dimension | 12.1" x 13.1" (30.734cm x 33.274cm) |
| Processor |
| CPU | 4th Gen Intel® Xeon® Scalable processors |
| Dual Socket LGA-4677 (Socket E) supported, CPU TDP supports Up to 350W TDP |
| Core | Up to 60 cores |
| Expansion Slots |
| PCIe | 1 PCIe 5.0 x8, |
| 5 PCIe 5.0 x16 |
| M.2 | Key: M-Key |
| Form Factor: 2280/22110 |
| M.2 Interface: 2 PCIe 5.0 x4 |
| Operating Environment |
| Operating Temperature Range | 10°C - 35°C (50°F - 95°F) |
| Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) |
| Non Operating Relative Humidity Range | 5% - 95% (non-condensing) |
