| System Memory |
| Memory Capacity | 16 DIMM slots |
| Up to 4TB 3DS ECC RDIMM, DDR5-4800MHz |
| Memory Type | 4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 4800MT/s (1DPC) |
| DIMM Sizes | RDIMM: 16GB, 32GB, 64GB, 128GB, 256GB |
| 16GB, 32GB, 64GB, 128GB, 256GB |
| Memory Voltage | 1.1V |
| Error Detection | Corrects single-bit errors |
| Detects double-bit errors (using ECC memory) |
| On-Board Devices |
| Chipset | Intel® C741 |
| IPMI | ASPEED AST2600 BMC |
| Network Controllers | Dual LAN with Broadcom BCM5720 1GBase-T |
| Single LAN with Realtek RTL8211F PHY |
| SATA | Intel® C741 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10 |
| Intel® C741 controller for 2 SATA3 (6 Gbps) ports; RAID 0,1 |
| Input / Output |
| SATA | 2 SATA3 (6Gbps) port(s) |
| 8 SATA3 (6Gbps) port(s) |
| Video Output | 1 VGA D-Sub Connector port(s) |
| USB | 6 USB 3 port(s) (4 rear; 2 via header) |
| 3 USB 2 port(s) (1 Type A; 2 via header) |
| Serial Port | 2 COM Port(s) (1 header; 1 rear) |
| TPM | 1 TPM header |
| Others | 3 MCIO PCIe 5.0 x8 |
| System BIOS |
| BIOS Type | AMI 32MB AMI UEFI |
| BIOS Features | Plug and Play (PnP) |
| ACPI 6.4 |
| PCI FW 3.2 |
| SMBIOS 2.8/3.5 |
| UEFI 2.8A |
| Management |
| Software | SuperDoctor® 5, SPM, SUM, SSM, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, Watchdog, SMCIPMITool, Trusted Platform Module (TPM), CPU thermal trip support for processor protection, Wake-on-LAN |
| PC Health Monitoring |
| Voltage | System temperature, PCH temperature, Memory temperature, CPU temperature, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support, +3.3V standby, Veore, Vmem, Peripheral temperature, Platform Environment Control Interface (PECI)/(TSI) |
| LED | UID/Remote UID |
| CPU / System Overheat LED |
| Temperature | Monitoring for CPU and chassis environment |
| CPU thermal trip support |
| Thermal Monitor 2 (TM2) support |
| PECI |
| FAN | 8x fans with tachometer monitoring |
| 8x 4-pin fan headers (up to 8 fans) |
| Fan speed control |
| Overheat LED indication |
| Other Features | UID, Node Manager Support, M.2 NGFF connector, Control of power-on for recovery from AC power loss, Chassis intrusion detection, ACPI power management |
| Product SKUs |

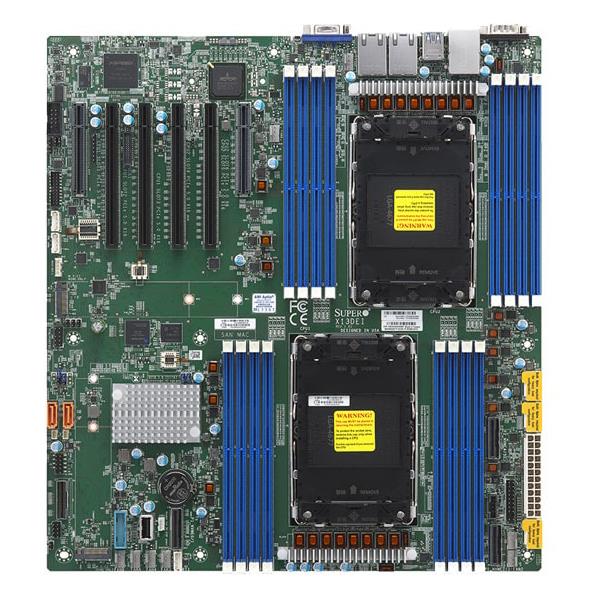

| Product SKUs | MBD-X13DEI |
| Physical Stats |
| Form Factor | EATX |
| Dimension | 12.1" x 13.05" (30.74cm x 33.15cm) |
| Processor |
| CPU | 4th Gen Intel® Xeon® Scalable processors |
| Dual Socket LGA-4677 (Socket E) supported, CPU TDP supports Up to 350W TDP |
| Core | Up to 60 cores |
| Expansion Slots |
| PCIe | 2 PCIe 5.0 x8, |
| 4 PCIe 5.0 x16 |
| M.2 | Key: M-Key |
| Form Factor: 2280/22110 |
| M.2 Interface: 2 PCIe 4.0 x2 |
| Operating Environment |
| Operating Temperature Range | 10°C - 35°C (50°F - 95°F) |
| Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) |
| Non Operating Relative Humidity Range | 5% - 95% (non-condensing) |
