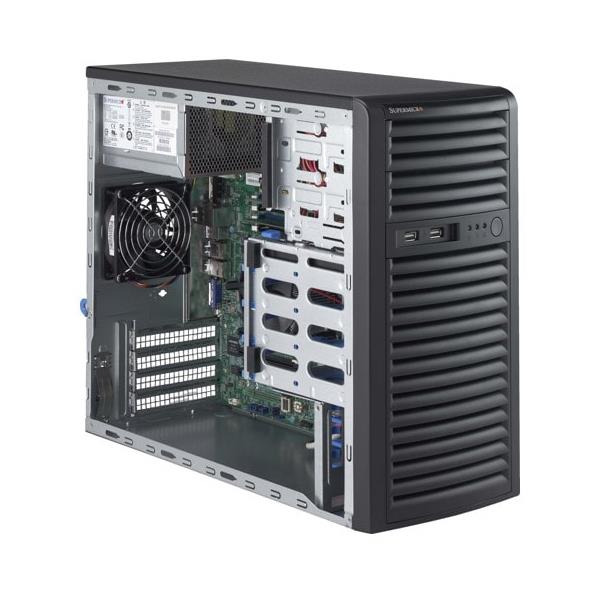

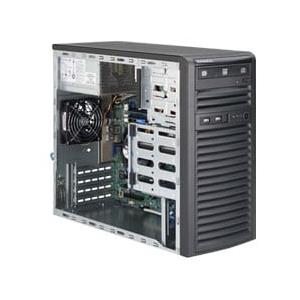

Supermicro SYS-5039D-i Mid Tower Barebone Single Processor
• Tower Server, 24/7 Operation,
• Unparalleled Reliability
SuperServer Mid-Tower single Socket H4 (LGA 1151) supports Intel Xeon E3-1200 v5, Intel 6th Gen. Core i3 series, Intel Pentium, Intel Celeron processors - Supports up to 64GB DDR4 ECC UDIMM in 4x 288-pin slots - On-Board : SATA3 (6Gbps) via Intel C232 controller (RAID 0, 1, 5, 10), IPMI 2.0, 2x Gigabit Ethernet, VGA - Includes : 4x 3.5in Internal fixed drive bays (Enterprise SATA HDD only recommended), 2x 5.25in External drive bays, 1x PCI-E 3.0 x8 (in x16), 1x PCI-E 3.0 x8, 1x PCI-E 3.0 X4 (in x8 slot), 300W 80 Plus Bronze Level Power Supply (PWS-305-PQ), MBD-X11SSL-F Motherboard, CSE-731i-300B 3U MID-Tower Chassis (Black)
This product is no longer available.
1. Single Socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v6/v5, Intel® 7th/6th Gen. Core™ i3 series, Intel® Celeron® and Intel® Pentium®
2. Intel® C232 chipset
3. Up to 64GB Unbuffered ECC UDIMM DDR4 2400MHz; 4x DIMM slots
4. 1 PCI-E 3.0 x8 (in x16), 1 PCI-E 3.0 x8, and 1 PCI-E 3.0 x4 (in x8 slot)
5. 1 VGA, 1 COM, 2 GbE LAN, dedicated IPMI LAN, 2 USB 2.0 (front)
6. 4 Fixed 3.5" drive bays + 2 External 5.25" drive bays
7. 300W High-efficiency Power Supply
Extra Specifications for Supermicro SYS-5039D-i Mid Tower Barebone Single Processor
| Motherboard | ||

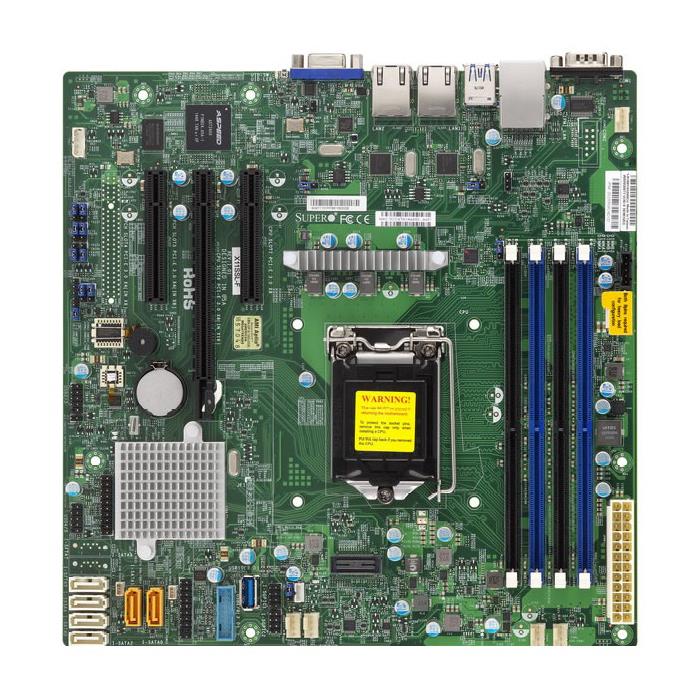

| Motherboard | Super X11SSL-F | |
| Processor/Cache | ||
| CPU | Single Socket H4 (LGA 1151) supports: | |
| CPU TDP up to 80W | ||
| Intel® Xeon® processor E3-1200 v6/v5, Intel® 7th/6th Gen Core™ i3, Intel® Pentium®, Intel® Celeron® processors | ||
| Note | BIOS version 2.0 or above is required to support Intel® Xeon® Processor E3-1200 v6 series or 7th Generation Intel® Core™ Processors | |
| System Memory | ||
| Memory Capacity | 4x 288-pin DDR4 DIMM slots | |
| Up to 64GB DDR4 ECC UDIMM | ||
| Memory Type | 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs | |
| DIMM Sizes | 16GB, 8GB, 4GB | |
| Memory Voltage | 1.2 V | |
| Error Detection | Corrects single-bit errors | |
| Detects double-bit errors (using ECC memory) | ||
| On-Board Devices | ||
| Chipset | Intel® C232 chipset | |
| SATA | RAID 0, 1, 5, 10 support | |
| SATA3 (6Gbps) via C232 controller | ||
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| ASPEED AST2400 BMC | ||
| Network Controllers | Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output | |
| Dual Intel® I210-AT Gigabit Ethernet LAN ports | ||
| VGA | ASPEED AST2400 BMC | |
| Input / Output | ||
| SATA | 6 SATA3 (6Gbps) ports | |
| LAN | 2 RJ45 Gigabit Ethernet LAN ports | |
| 1 RJ45 Dedicated IPMI LAN port | ||
| USB | 5 USB 3.0 ports (2 rear + 2 via header + 1 Type A) | |
| 6 USB 2.0 ports (2 rear + 4 via headers) | ||
| VGA | 1 VGA port | |
| Serial Port / Header | 1 COM port (1 rear) | |
| Expansion Slots | ||
| PCI-Express | 1 PCI-E 3.0 x8 (in x16 slot) | |
| 1 PCI-E 3.0 x4 (in x8 slot) | ||
| 1 PCI-E 3.0 x8 slot | ||
| System BIOS | ||
| BIOS Type | 128Mb SPI Flash EEPROM with AMI® BIOS | |
| BIOS Features | USB Keyboard support | |
| Plug and Play (PnP) | ||
| DMI 2.3 | ||
| SMBIOS 2.3 | ||
| ACPI 1.0 / 2.0 | ||
| UEFI | ||
| APM 1.2 | ||
| Chassis | ||
| Form Factor | Mid-Tower | |
| Model | CSE-731i-300B | |
| Dimensions and Weight | ||
| Height | 14.25" (362mm) | |
| Width | 7.25" (184mm) | |
| Depth | 16.75" (425mm) | |
| Gross Weight | 40 lbs (18.1 kg) | |
| Available Colors | Black | |

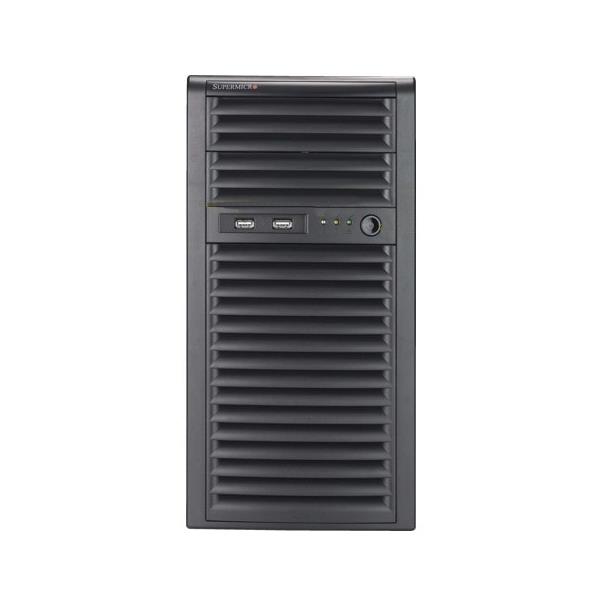

| Front Panel | ||
| Buttons | Power On/Off button | |
| LEDs | Power LED | |
| System Information LED | ||
| Hard drive activity LED | ||
| Network activity LED | ||
| Ports | 2x Front side USB ports | |
| Drive Bays | ||
| Internal | 4 Fixed 3.5" drive bays | |
| Enterprise SATA HDD only recommended | ||
| External | 2 External 5.25" drive bays | |
| System Cooling | ||
| Fans | 1x 9cm (rear) PWM fan w/ tool-less design | |
| Optimized Cooling Technology at 25dB Whisper-Quiet Operation | ||
| 1x 8cm (front) cooling fan (optional) | ||
| Power Supply | ||
| Power Supply | 300W AC power supply w/ PFC | |
| AC Voltage | 100 - 240V, 50-60Hz, 5 Amp | |
| DC Output | 5V + 12V + 3.3V - 12V < 290W | |
| +5V | 19 Amp | |
| +5V standby | 2.0 Amp | |
| +12V | 11 Amp + 11.5 Amp | |
| -12V | 0.15 Amp | |
| +3.3V | 16.0 Amp | |
| Certification | Bronze Certified | |
| PC Health Monitoring | ||
| CPU | 6-Phase-switching voltage regulator | |
| Monitors for CPU Cores, +12V, +3.3V, +5V, +5V Standby, VBAT, Memory, Chipset Voltages. | ||
| FAN | Low noise fan speed control | |
| Temperature | Monitoring for CPU and chassis environment | |
| PECI | ||
| Thermal Control for 8x fan connectors | ||
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) | |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Product SKUs | ||
| Product SKUs | SYS-5039D-i (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X11SSL-F | 1 | Super X11SSL-F Motherboard | |
| Motherboard / Chassis | CSE-731i-300B | 1 | 3U Mid-Tower Chassis | |
| Cable 1 | CBL-0044L | 4 | SATA,INT,FLAT,57.7CM,26AWG | |
| Manual | MNL-1827-QRG | 1 | SYS-5039D-I (X11SSL-F, CSE-731i-300B), QRG | |
| Parts | MCP-260-00073-0N | 1 | Standard I/O shield for X9/X10 I/O MB, no EMI Gasket,RoHS/REACH,PBF | |
| Power Supply | PWS-305-PQ | 1 | 300W ATX Power Supply |
