System Memory |
Memory Capacity | 2 DIMM slots |
| Up to 64GB Unbuffered non-ECC SODIMM, DDR5-4800MHz |
Memory Type | 4800 MT/s non-ECC DDR5 SODIMM Unbuffered |
DIMM Sizes | 8GB, 16GB, 32GB |
Memory Voltage | 1.1V |
On-Board Devices |
Chipset | System on Chip |
Audio | ALC 888S HD Audio |
Graphics | 4 Independent Displays from Dual DP (Alt mode)/HDMI 2.0b/HDMI1.4 |
| 1 Intel® UHD Graphics for 12th Gen Intel® Processors port(s) |
Network Controllers | Dual LAN with Intel® Ethernet Controller I225-IT, 2.5G, TSN, industrial grade |
SATA | Intel® 600 Series controller for 1 SATA3 ports |
Input / Output |
SATA | 1 SATA3 port(s) |
Video Output | 1 HDMI 2.0b port(s), 1 HDMI port(s), 2 DP (Alt mode) port(s) |
USB | 6 USB port(s) (2 rear type A; 4 via header) |
| 2 USB 3.2 Gen2 port(s) (2 rear type C Support DP1.4a (ALT mode)) |
Serial Port | 4 COM Port(s) (4 header), 2 RS-232/422/485 with flow control, 2 RS-232 |
TPM | 1 TPM Chip |
Others | 1 8-bit GPIO header |
| 1 System Fan |
| 1 SMBus header |
System BIOS |
BIOS Type | AMI UEFI |
BIOS Features | PCI FW 3.0 |
| ACPI 6.4 |
| SMBIOS 3.5 or later |
| UEFI 2.8 |
Management |
Software | Watchdog |
System Management Software | SuperDoctor® 5 |
Power Configurations | ACPI Power Management, Wake-On-LAN, Force Power On by Jumper, Control of power-on for recovery from AC power loss, +12-24V DC Power Input |
PC Health Monitoring |
Voltage | VBAT, CPU temperature, +5V standby, +5V, +3.3V, +12V, +1.8V, +1.5V, +1.35V |
LED | Power LED |
Temperature | CPU thermal trip support |
Other Features | RoHS |
FAN | 4x 4-pin fan headers (up to 4 fans) |
Product SKUs |
Product SKUs | MBD-X13SAN-C-WOHS |
Physical Stats |

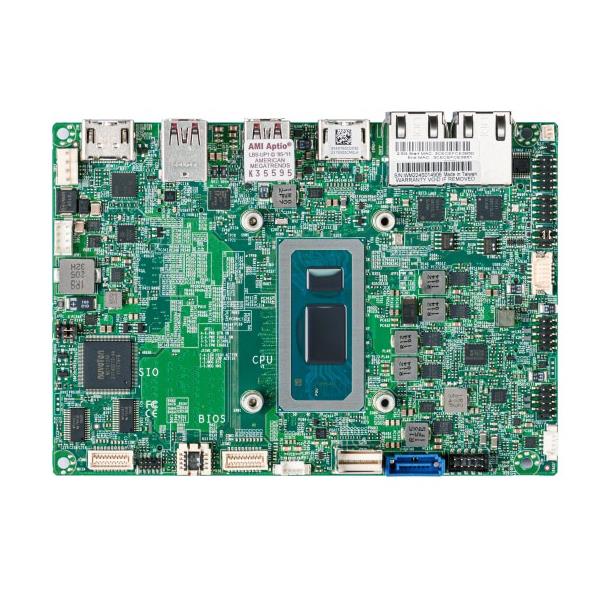

Form Factor | 3.5" SBC |
Dimension | 5.7" x 4" (14.6cm x 10.16cm) |
Processor |
CPU | Single Socket FCBGA-1744 supported, CPU TDP supports Up to 15W TDP |
| Intel® Celeron® Processor 7305E |
Core | Up to 5 cores, 5 threads / 8MB Cache |
Expansion Slots |
PCIe | 1 PCIe 4.0 x4 SlimSAS |
M.2 | M.2 Interface: 1 PCIe 4.0 x4; 1 CNVi/PCIe 3.0 x1/USB2; 1 SATA/USB3/USB2 |
| Form Factor: 2242/2280, 2230, 2242/2280 |
| Key: M-Key, E-Key, B-Key |
Operating Environment |
Operating Temperature Range | 0°C - 85°C (32°F - 185°F) |
Non-Operating Temperature Range | -40°C - 85°C (-40°F - 185°F) |
Operating Relative Humidity Range | 10% - 85% (non-condensing) |
Non Operating Relative Humidity Range | 10% - 95% (non-condensing) |
