| System Memory |
| Memory Capacity | 2 DIMM slots |
| Up to 64GB Unbuffered non-ECC SODIMM, DDR5-4800MHz |
| Memory Type | 4800 MT/s non-ECC DDR5 SODIMM Unbuffered |
| DIMM Sizes | 8GB, 16GB, 32GB |
| Memory Voltage | 1.1V |
| On-Board Devices |
| Chipset | System on Chip |
| Audio | ALC 888S HD Audio |
| Graphics | 4 Independent Displays from Dual DP (Alt mode)/HDMI 2.0b/HDMI1.4 |
| 1 Intel® Iris® Xe Graphics port(s) |
| Network Controllers | Dual LAN with Intel® Ethernet Controller I225-IT, 2.5G, TSN, industrial grade |
| SATA | Intel® 600 Series controller for 1 SATA3 ports |
| Input / Output |
| SATA | 1 SATA3 port(s) |
| Video Output | 1 HDMI 2.0b port(s), 1 HDMI port(s), 2 DP (Alt mode) port(s) |
| USB | 6 USB port(s) (2 rear type A; 4 via header) |
| 2 USB 3.2 Gen2 port(s) (2 rear type C Support DP1.4a (ALT mode)) |
| Serial Port | 4 COM Port(s) (4 header), 2 RS-232/422/485 with flow control, 2 RS-232 |
| TPM | 1 TPM Chip |
| Others | 1 8-bit GPIO header |
| 1 System Fan |
| 1 SMBus header |
| System BIOS |
| BIOS Type | AMI UEFI |
| BIOS Features | PCI FW 3.0 |
| ACPI 6.4 |
| SMBIOS 3.5 or later |
| UEFI 2.8 |
| Management |
| Software | AMT, vPro, Watchdog |
| System Management Software | SuperDoctor® 5 |
| Power Configurations | ACPI Power Management, Wake-On-LAN, Force Power On by Jumper, Control of power-on for recovery from AC power loss, +12-24V DC Power Input |
| PC Health Monitoring |
| Voltage | VBAT, CPU temperature, +5V standby, +5V, +3.3V, +12V, +1.8V, +1.5V, +1.35V |
| LED | Power LED |
| Temperature | CPU thermal trip support |
| Other Features | RoHS |
| FAN | 4x 4-pin fan headers (up to 4 fans) |
| Product SKUs |

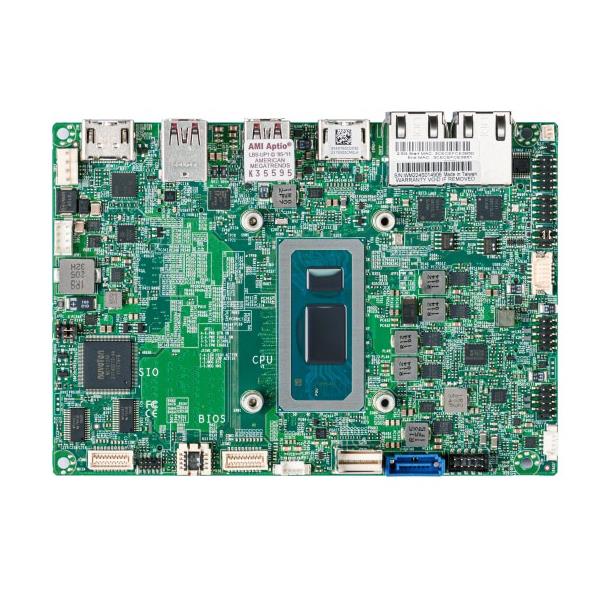

| Product SKUs | MBD-X13SAN-H-WOHS |
| Physical Stats |
| Form Factor | 3.5" SBC |
| Dimension | 5.7" x 4" (14.6cm x 10.16cm) |
| Processor |
| CPU | Single Socket FCBGA-1744 supported, CPU TDP supports Up to 15W TDP |
| 12th Generation Intel® Core™ i7-1265UE Processor |
| Core | Up to 10 cores, 12 threads / 12MB Cache |
| Expansion Slots |
| PCIe | 1 PCIe 4.0 x4 SlimSAS |
| M.2 | M.2 Interface: 1 PCIe 4.0 x4; 1 CNVi/PCIe 3.0 x1/USB2; 1 SATA/USB3/USB2 |
| Form Factor: 2242/2280, 2230, 2242/2280 |
| Key: M-Key, E-Key, B-Key |
| Operating Environment |
| Operating Temperature Range | 0°C - 85°C (32°F - 185°F) |
| Non-Operating Temperature Range | -40°C - 85°C (-40°F - 185°F) |
| Operating Relative Humidity Range | 10% - 85% (non-condensing) |
| Non Operating Relative Humidity Range | 10% - 95% (non-condensing) |
