| Main Specifications |
| Dimensions (WxDxH) | Height 1.2" (30.48mm) x Width 4.94" (125.48mm) x Depth 23.2" (589.28mm) |
| Enclosure Color | Silver Grey |
| Type | MicroBlade |
| Weight | Gross Weight: 5.01 lbs (2.27 kg) |
| Capacity | 32GB |
| Parts List |
| Motherboard | Super B1SD2-TF |
| Processor |
| Compatible Processors | Intel Xeon processor D-1541, CPU TDP support 45W, 2.2-2.6GHz, 12MB |
| Compatible Socket | Socket FCBGA 1667 |
| System Memory |
| Error Detection | Corrects single-bit errors, Detects double-bit errors (using ECC memory) |
| Memory Capacity | Supports up to 128GB DDR4 ECC VLP RDIMM |
| 4x DDR4 DIMM sockets |
| Memory Voltage | 1.2 V |
| Cache Memory |
| Memory Type | 2133/2400MHz ECC DDR4 RDIMM |
| On-Board Devices |
| Chipset | System on Chip |
| Network Controllers | VMDq support for better performance of virtualization |
| Intel I/OAT 3 support for fast, scaleable, and reliable networking |
| Dual 10GbE LAN ports via Intel X552 controller |
| Input / Output |
| SATA | SATA3 (6Gbps) via chipset |
| System BIOS |
| BIOS Features | Plug and Play (PnP), APM 1.2, ACPI 1.0/2.0, SMBIOS 2.3, RTC (real time clock) wake up |
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS |
| Front Panel |
| LEDs | Power LED, UID / KVM LED, Network Activity LED, Fault LED |
| Drive Bays |

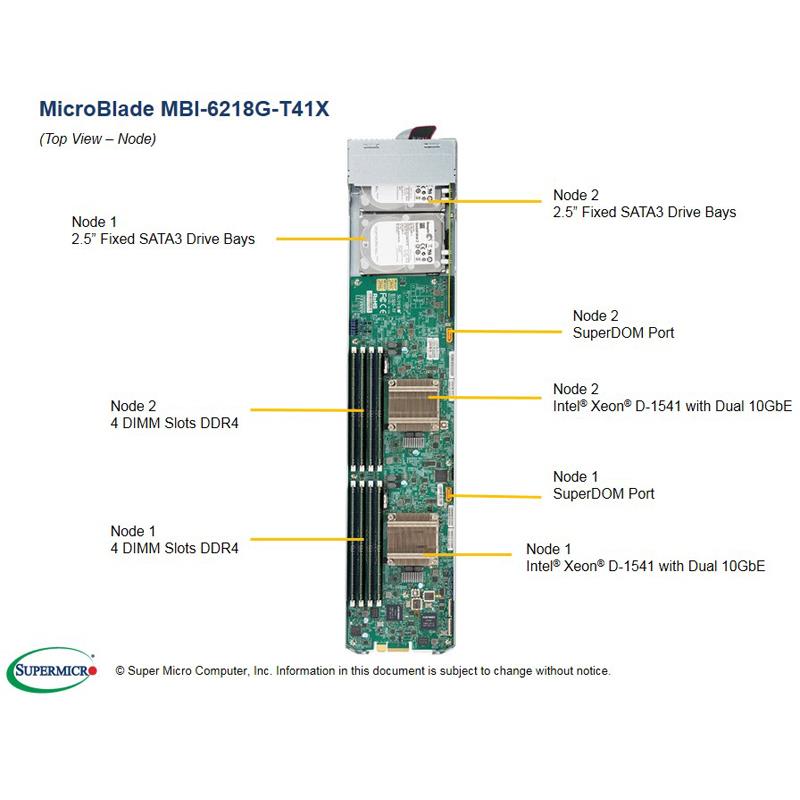

| Internal | 1x 2.5" 6Gb/s SATA3 HDD/SSD per node (Total of 2x 2.5" HDD/SSD in one SuperBlade Sled) |
| Environmental Parameters |
| Operating Temperature | Operating Temperature: 10C to 35C (50F to 95F) |
| Non-operating Temperature: -40C to 70C (-40F to 158F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Electromagnetic Compatibility (EMC) |
| Europe | EN55022 - Emissions, EN55024 - Immunity, EN61000-3-2 - Harmonics, EN61000-3-3 - Voltage Flicker, CE - EMC Directive 89/336/EEC |
| United States / Canada | FCC- Emissions (US) Verification |
| Parts List - (Items Included) |
| Add-On Card | 1x AOM-BPN-MS28U |
| Air Shroud | 1x MCP-310-31403-0N |
| Micro Blade Module Chassis | 2x MCP-620-31401-0N, 1x MCP-620-31402-0N, 1x MCP-640-31404-0N |
| MicroBlade Sled | 1x MCP-680-31404-0N |
| Motherboard / Chassis | 1x MBD-B1SD2-TF |
