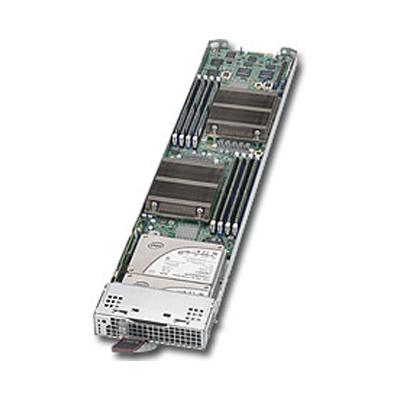

Supermicro MBI-6219G-T MicroBlade Barebone Single Processor

Dual Node Microblade for Single Intel Xeon E3-1200 v5 Processor

Supermicro MBI-6219G-T MicroBlade Barebone Single Processor

• 392 UP nodes per 42U Rack
• 56/28 UP nodes in 6U/3U
• 2 Independent Nodes per Module;
• Each Node Supports:

Dual Node Microblade Single Socket H4 (LGA 1151) supports Intel Xeon E3-1200 v5 processor - Supports up to 64GB DDR4 VLP ECC UDIMM up to 2133MHz (4x 288-pin DDR4 DIMM slots) - On-Board : Intel C236 chipset, SATA3 6Gbps via chipset, 2x Gigabit Ethernet LAN ports via Intel i350, Redundant 1GbE SDN switches with 0Gbps / 10Gbps uplinks, IPMI 2.0 - Includes : 4x 2.5in SATA3 6Gbps SSD per blade, MicroBlade Board MBD-B2SS2-F-P, MicroBlade Sled MCP-680-31405-0N, ADD-On Card AOM-BPN-MS28S-P, 5x Micro Blade Module Chassis - This part can only be sold with the enclosure - If you already have the enclosure please search for part number MBI-6219G-T-PACK

1. Socket H4 (LGA 1151) supports Intel® Xeon® E3-1200 v6/v5 processor family
2. Up to 64GB ECC VLP UDIMM DDR4- 2400MHz in 4 DIMM sockets
3. Up to 2x 2.5" SATA3 SSDs or 1x HDD
4. Dual 1GbE LAN ports via Intel i350 Dedicated LAN supports IPMI 2.0

Extra Specifications for Supermicro MBI-6219G-T MicroBlade Barebone Single Processor

Product SKUs
Product SKUs
Motherboard
Motherboard
Processor/Cache
CPU	Single Socket H4 (LGA 1151) supports:
	CPU TDP up to 80W
	Intel® Xeon® processor E3-1200 v6/v5, Intel® 7th/6th Gen Core™ i3, Intel® Pentium®, Intel® Celeron® processors
Note	BIOS version 2.0 or above is required to support Intel® Xeon® Processor E3-1200 v6 series Processors
System Memory
Memory Capacity	4x DDR4 DIMM sockets
	Supports up to 64GB DDR4 ECC VLP UDIMM
Memory Type	2400MHz ECC DDR4 UDIMM
DIMM Sizes	16GB
Memory Voltage	1.2 V
Error Detection	Corrects single-bit errors
	Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset	Intel® C236 chipset
SATA	SATA3 (6Gbps) via chipset
Network Controllers	Redundant 1GbE SDN switches with 40Gbps/10Gbps uplinks
	Dual 1GbE LAN ports
IPMI	Support for Intelligent Platform Management Interface (IPMI) v.2.0 via Chassis Management Module (CMM)
System BIOS
BIOS Type	128Mb SPI Flash EEPROM with AMI® BIOS
BIOS Features	Plug and Play (PnP)
	SMBIOS 2.3
	APM 1.2
	ACPI 1.0/2.0
	RTC (real time clock) wake up
Dimensions
Height	1.2" (30.48mm)
Width	4.94" (125.48mm)
Depth	23.2" (589.28mm)
Weight	Gross Weight: 5.01 lbs (2.27 kg)
Available Colors	Silver Grey
Front Panel
LEDs	Power LED
	UID / KVM LED
	Network Activity LED
	Fault LED
Drive Bays
Internal	4x 2.5" SATA3 (6Gbps) SSD per blade
Operating Environment / Compliance
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F)
	Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
	Operating Relative Humidity: 8% to 90% (non-condensing)
	Non-operating Relative Humidity: 5% to 95% (non-condensing)
Electromagnetic Compatibility (EMC)
United States / Canada	FCC- Emissions (US) Verification
Europe	EN55022 - Emissions
	EN55024 - Immunity
	EN61000-3-2 - Harmonics
	EN61000-3-3 - Voltage Flicker
	CE - EMC Directive 89/336/EEC

Name	Part Number	Price	Add to Cart	Qty.	Description
	Heatsink / Retention	SNK-P0047PSR	$ 41.50		2	Passive CPU Heat Sink for Micro Blade UP
Software	SFT-OOB-LIC •			1	OOB Management Package (per node license)
Software	SFT-DCMS-Single			1	DataCenter Management Package (per node license)

Warranty:	3 years labor, 1 year parts, 1 year advance replacement (doa)
Coverage:	Replacement or repair
Average Service Time:	Overnight replacement for 1 year, 2 weeks afterward
E-mail:	returnservices@wiredzone.com

If you need Technical Support for this item please contact:
Provider:	Supermicro
Type of Support:	FULL
Phone No.:	408-503-8000
URL:	Click here for Manufacturer Website

Supermicro MBI-6219G-T MicroBlade Barebone Single Processor

$ 611.50$ 611.50611.5USD

$ 611.50
