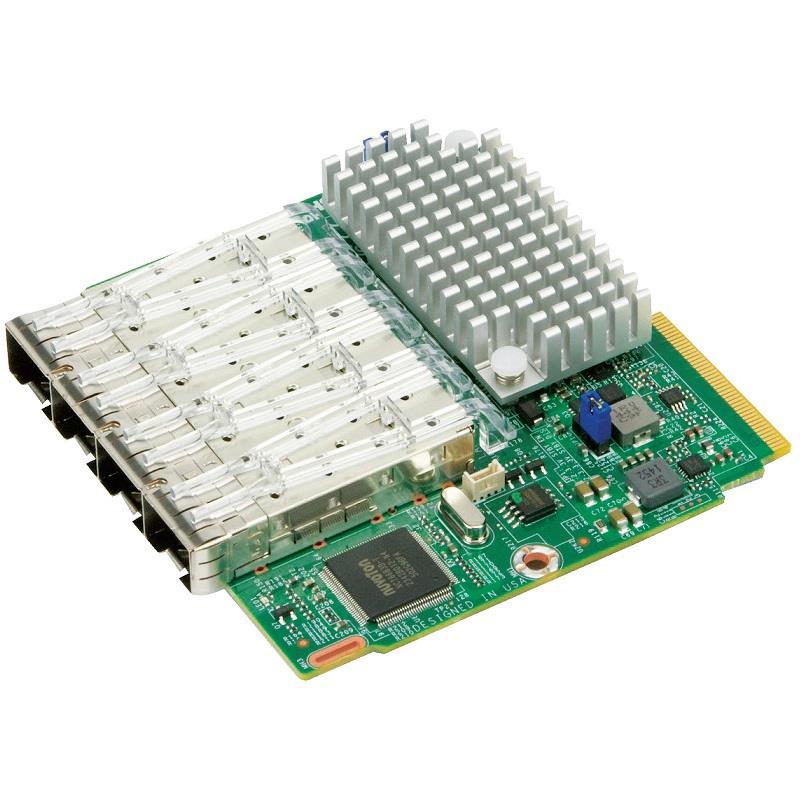

Supermicro AOC-MTG-i4S 4-Port 10GbE SFP+ Ethernet Controller Card - Super I/O Module (SIOM) Form Factor

Supermicro AOC-MTG-i4S 4-Port 10GbE SFP+ Ethernet Controller Card - Super I/O Module (SIOM) Form Factor

• 2U TwinPro/Storage Servers
• Virtualization; flexibility for LAN/SAN networks
• Combines with hardware optimizations and offloads
• Quad SFP+ connectors; speed up to 10Gbps per port

4-Port 10GbE SFP+ Ethernet Controller Card - Super I/O Module (SIOM) Form Factor, Intel XL710-AM1 controller, Intel PROSet Utility for Windows Device Manager, energy Efficient Ethernet (EEE) - Swappable bracket for 2U+ chassis Can be ordered in bundle with Supermicro System ONLY

$ 231.00$ 231.00231.0USD

$ 231.00

Option not available

    This combination does not exist.

    Add to Cart

    • Intel Flow Director
    • Intelligent Offloads
    • RoHS compliant 6/6
    • Quad SFP+ Connectors
    • Low Power Consumption
    • Small Packet Performance
    • Asset Management Features
    • NC-SI for Remote Management
    • Super I/O Module (SIOM) Form Factor
    • Supports Both Direct Attach Copper and Fiber Cables
    • Data Plane Developer Kit for efficient packet processing
    • Network Virtualization Offloads including VXLAN and NVGRE
    • Unified networking providing a single wire support for LAN and storage

    Extra Specifications for Supermicro AOC-MTG-i4S 4-Port 10GbE SFP+ Ethernet Controller Card - Super I/O Module (SIOM) Form Factor

    Main Specifications
    Device TypeSIOM Networking Adapters
    Dimensions (WxDxH)Card PCB dimensions: 92mm (3.62in) x 87.1mm (3.43in) (W x D)
    Form FactorSuper I/O Module (SIOM)
    Miscellaneous
    FeaturesIntel XL710-AM1 controller
    Optimized for 2U TwinPro and Storage Servers
    Cables TypeCable Support: SFP+ direct attach twinaxial copper cables up to 7m
    Cable Support: Fiber-optic cables (with required optional SFP+ transceivers)
    Designed For2U Storage SSG-2028R-NR48N, 2U Storage SSG-2028R-E1CR48N, 2U Storage SSG-2028R-E1CR48L, 4U Storage SSG-6048R-E1CR60N, 4U Storage SSG-6048R-E1CR60L, 2U Storage SSG-6028R-E1CR24N, 2U Storage SSG-6028R-E1CR24L
    Included Accessories1x BKT-0092L (Swappable bracket for 2U+ chassis)
    Compliant StandardsRoHS Compliant 6/6
    Networking
    Management FeaturesNC-SI for remote management
    Asset Management support on Supermicro platforms
    Controller asset tags such as part number, revision, serial number, and MAC addresses
    Controller thermal sensor
    Port QuantityQuad SFP+ connectors with speed up to 10Gbps per port
    Virtualization FeaturesVirtual Machine Load Balancing (VMLB)
    Next-Generation VMDq with up to 256 VMDq VMs supported
    PCI-SIG SR-IOV with up to 128 virtual ports
    Advanced Packet Filtering
    VLAN support for up to 4096 VLAN tags
    VXLAN and NVGRE support
    Power
    Comsumtion OperationalTypical power consumption: 4W
    Maximum power consumption: 7W
    Environmental Parameters
    Operating TemperatureOperating temperature: 0C to 55C (32F to 131F)
    Storage temperature: -40C to 70C (-40F to 158F)
    Storage humidity: 90% non-condensing relative humidity at 35C
    Software / System Requirements
    OS SupportsWindows Server 2012 R2, 2012, 2008 R2 X86-64
    Linux RedHat EL 6.5 and 7.0 IA-32, X86-64, and IA-64
    Linux SuSE SLES 11 SP3 and 12 IA-32, X86-64, and IA-64
    FreeBSD 9 and 10 IA-32, X86-64, and IA-64
    UEFI 2.1 and 2.3 X86-64 and I-64
    VMware ESXi 5.1, ESXi 5.5 and ESXi 6.0 X86-64

    Warranty:3 years labor, 1 year parts, 120 days advance replacement (doa)
    Coverage:Replacement or repair
    Average Service Time:Overnight replacement for 120 days, 2 weeks afterward
