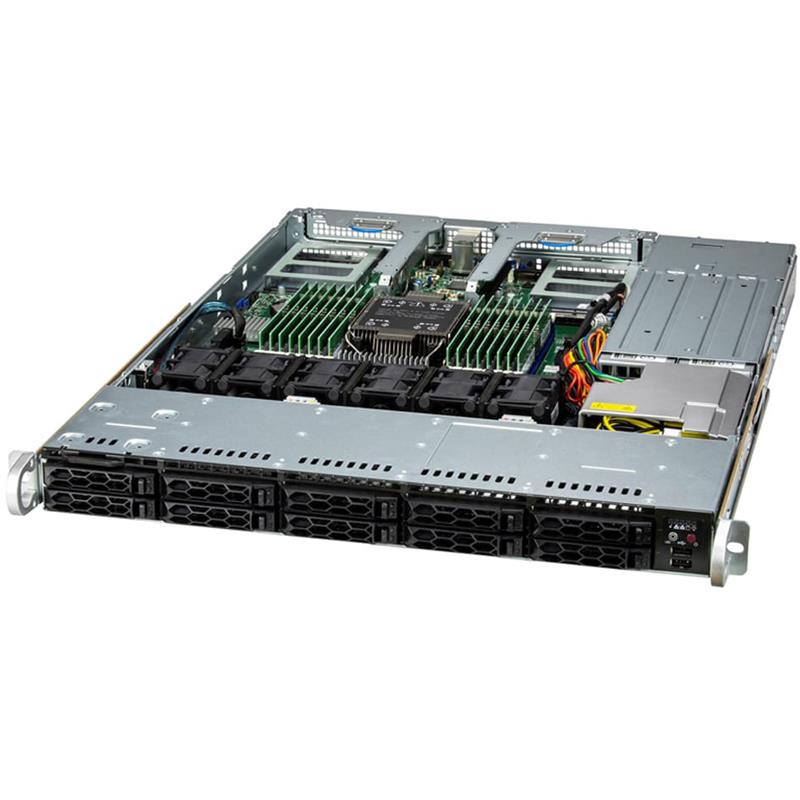

Barebone 1U Rackmount SuperServer, Supports Single Socket E (LGA-4677), Supporting Intel Xeon Scalable Processors 5th and 4th Generation, Intel C741 Chipset, Up to 4TB in 16 DIMM slots, RDIMM, On-Board : NVMe, SATA3 (6Gbps) Controller, RAID 0/1/5/10 Support 10x 2.5in NVMe/SATA/SAS Drive Bays (10x 2.5in NVMe Hybrid), Two M.2 M-key, 2280, 22110, Network Connectivity : Dual AIOM (OCP 3.0) For Networking (NCSI Available), 1 Dedicated IPMI LAN, 800W/860W Power Supply - (SYS-111C-NR + X13SEDW-F)

To maintain quality and integrity, this product is sold only as a completely-assembled system (with Minimum 1 CPU, 1 DIMM, 1 Storage Device HDD/HDS/M.2 and 1 NIC). NIC requirement can be either AIOM or PCIe card.

1. Single Socket E (LGA-4677) 4th/5th Gen Intel® Xeon® Scalable processors. Up to 350W TDP
2. Intel® C741 Chipset
3. 16 DIMMs; Supports 3DS DDR5 RDIMM. Up to 5600 MHz
4. Dual AIOM (OCP 3.0) for networking (NCSI available), 1 dedicated IPMI LAN
5. 10x front hot-swap 2.5" SATA3 drive bays (Optional all 10 hybrid Gen5 NVMe), SAS3 with additional SAS controller card
6. Redundant Now Titanium 860W Power Supplies

Extra Specifications for Supermicro SYS-111C-NR UP 1U Barebone Single Intel Xeon Scalable Processors 5th and 4th Generation

Product SKUs
Product SKUs	SYS-111C-NR
Motherboard
Motherboard	Super X13SEDW-F
Processor
CPU	4th Gen Intel® Xeon® Scalable processors
	Single Socket E (LGA 4677)
Cores	Up to 60C/120T; Up to 112.5MB Cache
Note	Supports up to 350W TDP CPUs (Air Cooled)
	CPUs with TDP over 300W are only supported under specific conditions. Contact customer support for details.
System Memory
Memory	Memory Capacity: 16 DIMM slots
	Up to 4TB: 16x 256 GB DRAM
	Memory Type: 4800/4400MHz ECC DDR5 RDIMM
Memory Voltage	1.1 V
Error Detection	Yes
On-Board Devices
SATA	SATA3 (6Gbps); RAID 0/1/5/10 support
NVMe	NVMe
Chipset	Intel® C741
Network Connectivity	Via AIOM & AOC
IPMI	Support for Intelligent Platform Management Interface v.2.0
	IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
SATA	12 SATA (6Gbps) port(s)
LAN	1 RJ45 Dedicated IPMI LAN port
USB	2 USB 2.0 port(s) (2 front)
	2 USB 3.2 Gen 1 port(s) (2 rear)
Video	1 VGA port(s)
Serial Port	1 COM Port(s) (1 rear)
System BIOS
BIOS Type	AMI 32MB SPI Flash EEPROM
Management
Software	NMI
	KVM with dedicated LAN
	Redfish API
	Intel® Node Manager
	SUM
	SSM
	SPM
	IPMI2.0
	Supemicro Out of Band (OOB) License (Included per Node)
	SuperCloud Composer
Power Configurations	ACPI/APM Power Management
PC Health Monitoring
CPU	Monitors for CPU Cores, Chipset Voltages, Memory
	8 Phase-switching voltage regulator
FAN	Status monitor for speed control
	Pulse Width Modulated (PWM) fan connectors
	Fans with tachometer monitoring
Temperature	Monitoring for CPU and chassis environment
	Thermal Control for fan connectors
Chassis
Form Factor	1U Rackmount
Model	CSE-LB16TS-R860AWP3
Dimensions and Weight
Height	1.7" (43mm)
Width	17.2" (437mm)
Depth	23.5" (597mm)
Package	7.7" (H) x 23.7" (W) x 31.8" (D)
Weight	Net Weight: 25 lbs (11.34 kg)
	Gross Weight: 40 lbs (18.14 kg)
Available Color	Black
Front Panel
Buttons	UID button
	Power On/Off
LEDs	Power status
	System information
	Device Activity
	LAN 1 Activity
	LAN 2 Activity
Expansion Slots
PCI-Express (PCIe)	2 PCIe 5.0 x16 FHHL slot(s)
Note	AIOM slots share PCIe lanes with NVMe drives. Acronyms: (FH = Full Height, LP = Low Profile, FL = Full Length, HL = Half Length)
Drive Bays / Storage
Drive Bays	10x 2.5" NVMe/SATA/SAS drive bays (10x 2.5" NVMe hybrid)
M.2	M-key, 2280, 22110
	2x PCIe 3.0 x 2
System Cooling
Fans	6 middle cooling PWM 40x40x56mm Fan(s)
Power Supply
Dimension (W x H x L)	54.5 x 40.25 x 322 mm
AC Input	800W: 100-127Vac / 9A-7.5A / 50-60Hz
	860W: 200-240Vac / 6A-4.5A / 50-60Hz
+12V	Max: 66.6A / Min: 0A (100Vac-127Vac)
	Max: 71.6A / Min: 0A (200Vac-240Vac)
5V SB	Max: 4A / Min: 0A
Output Type	Backplanes (gold finger)
Certification	Platinum Level
Operating Environment
Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
	Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
	Operating Relative Humidity: 8% to 80% (non-condensing)
	Non-operating Relative Humidity: 8% to 90% (non-condensing)

Name	Part Number	Qty.	Description
Motherboard / Chassis	MBD-X13SEDW-F	1	Super X13SEDW-F Motherboard
Motherboard / Chassis	CSE-LB16TS-R0AWNP3	1	1U Chassis
Backplane	BPN-NVME5-LB16A-S10	1	1U 10-port backplane, 10x SAS3/SATA3/NVME5 for X13 CloudDC
	Cable	CBL-MCIO-1218M5-1	1	MCIO x8 (STR to STR),18CM,85OHM,RoHS
	Cable	CBL-MCIO-1225M5Y	2	MCIO (x8 to 2 x4) STR,25CM,85OHM,RoHS
	Cable	CBL-SAST-1274LP-100	1	SlimlineLP x8 (LE) to 2x Slimline x4 (STR),68/76CM,100 O
	Cable	CBL-SAST-1285LP-100	1	SlimlineLP x4 (STR) to Slimline x4 (STR),57CM,100 OHM,Ro
	Cable	CBL-CDAT-0680-55	1	NCSI,2x10F to 2x10F,IDC,PH2.54,55cm,shield,28AWG,RoHS
	Cable	CBL-PWCD-0160-IS	2	PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
	Fan	FAN-0163L4	6	40x40x56 mm, 23.3K-20.3K RPM, Counter-rotating Fan
	Parts	MCP-150-00015-0B	6	Rubber pad, 3.0mm H, 10x10mm
Parts	MCP-160-00028-0B	1	Mylar Cable Channel for Cloud-DC, X12 DDW
Parts	MCP-320-00067-0B	1	Chassis base Air Foam block set (L+R) for Cloud-DC
Manual	MNL-2493-QRG	1	111C-NR Quick Reference Guide
	Power Supply	PWS-861A-1R	2	1U redundant 800/860W Titanium AC power supply 54.5x40x322mm
	Power Supply	MCP-250-00009-0N	1	SC113 Redundant Power Distributor Cover
	Riser Card	RSC-D-6G5	1	1U LHS DCO Riser card with one PIC-E 5.0 X16 slot,HF,RoH
	Riser Card	RSC-DR-6G5	1	1U RHS DCO Riser card with one PCIe 5.0 X16 slot,HF,Ro
	Software	SFT-OOB-LIC	1	License key for enabling OOB BIOS management
	Heatsink / Retention	SNK-P0087P	1	1U Passive CPU HS for X13 EGS and X14-SP BHS-SP Systems
*Power Distributor	PDB-PT116-SL8824	1	Based on PDB-PT116-L8824 to optimize 24Pin etc cable lengths
*Front Panel	FPB-FP116	1	Front control board for SC116 (USB 2.0 x 2)
	*Drive Tray(s)	MCP-220-00188-0B	10	Black gen-5.5 tool-less cost-effective 2.5
*Rear Window	MCP-240-00173-0N	1	1U X12 AWIO Rear window for LA15,LB16,LB13 Redundant PWS
	*Rail Set	MCP-290-00016-0N	1	1U open rack bracket set for CSE-PT51L,MCP-290-00054-0N
*Rail Set	MCP-290-00063-0N	1set	Rail set, quick/quick, default for 1U 17.2"W for SC113/SC116,RoHS/REACH
	*Rail Set	MCP-290-00102-0N	1 set	Outer rail, quick-release type, 25.6
*Rail Set	MCP-290-00108-0N	1 set	Inner rail, front, short, quick-release type
*Rail Set	MCP-290-00112-0N	1 set	Inner rail, extension, long (quick) for 1U 17.2W chassis
	*Fan Holder	MCP-320-00056-0B	24	40X56 rubber fan pin for SC819U, SC119U,RoHS/REACH
*Fan Holder	MCP-320-00066-0B	1	Fan holder with cable channel, 40X56mm fan, for LA15,LB16,LB13
	*Fan Holder	MCP-340-00035-0B	2	Dummy fan 40x56mm for 40x56 counter-rotating fan (cost-effective)

Note:

• Parts with * are inside the chassis

• Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.

Name	Part Number	Price	Add to Cart	Qty.	Description
CacheVault	BTR-CVPM05 + MCP-240-00203-0N (For S3908/S3916)			1	SuperCap mounting bracket for PCIe location
CacheVault	BTR-CVPM05 + MCP-240-21747-0N (For S3908/S3916)			1	SuperCap mounting bracket for AIOM location
	Inlet Thermal Sensor	MCP-280-00033-0N	$ 27.00		1	Inlet Thermal sensor kit with 80cm I2C cable
Intel VROC RAID Key for NVMe	AOC-VROCSTNMOD			1	Standard Upgrade module (Intel + 3rd party Vendor SSD); RAID 0/1/10
	Intel VROC RAID Key for NVMe	AOC-VROCPREMOD	$ 342.50		1	Premium Upgrade module (Intel + 3rd party Vendor SSD); RAID 0/1/10/5
NVMe Cable (Drive Bay 0-1)	CBL-MCIO-1240AM5-X •			1	MCIO (x8 to x8) STR,40CM,85OHM
NVMe Cable (Drive Bay 2-9)	CBL-MCIO-1225M5Y •			2	MCIO (x8 to 2 x4) STR,25CM,85OHM
Software	SFT-DCMS-Single			1	DataCenter Management Package (per node license)
Storage Control Card and Cable(s)	AOC-S3908L-H8iR-16DD + 1x CBL-SAST-1276F-100 •			1	Standard LP, 8 internal ports (12Gb/s) PCIe 4.0 x8, 16HDD; RAID 0, 1, 5, 6, 10, 50, 60
Storage Control Card and Cable(s)	AOC-S3916L-H16iR-32DD + 1x CBL-SAST-1265F-100 + 1x CBL-SAST-1276F-100 •			1	Standard LP, 16 internal ports (12Gb/s) PCIe 4.0 x8, 32HDD; RAID 0, 1, 5, 6, 10, 50, 60
Storage Control Card and Cable(s) (HBA)	AOC-S3808L-L8IT + 1x CBL-SAST-1276F-100 •			1	Standard LP, 8 internal ports (12Gb/s) PCIe 4.0 x8, 122HDD; HBA
Storage Control Card and Cable(s) (HBA)	AOC-S3816L-L16IT + 1x CBL-SAST-1265F-100 + 1x CBL-SAST-1276F-100 •			1	Standard LP, 16 internal ports (12Gb/s) PCIe 4.0 x8, 122HDD; HBA
TPM	AOM-TPM-9670V-S-O			1	TPM 2.0, vertical form factor, provisioned for server
VC Heat Sink for high TDP CPU	SNK-P0087V			1	1U Passive CPU Vapor Chamber Heat Sink

Warranty:	3 years labor, 1 year parts, 1 year advance replacement (doa)
