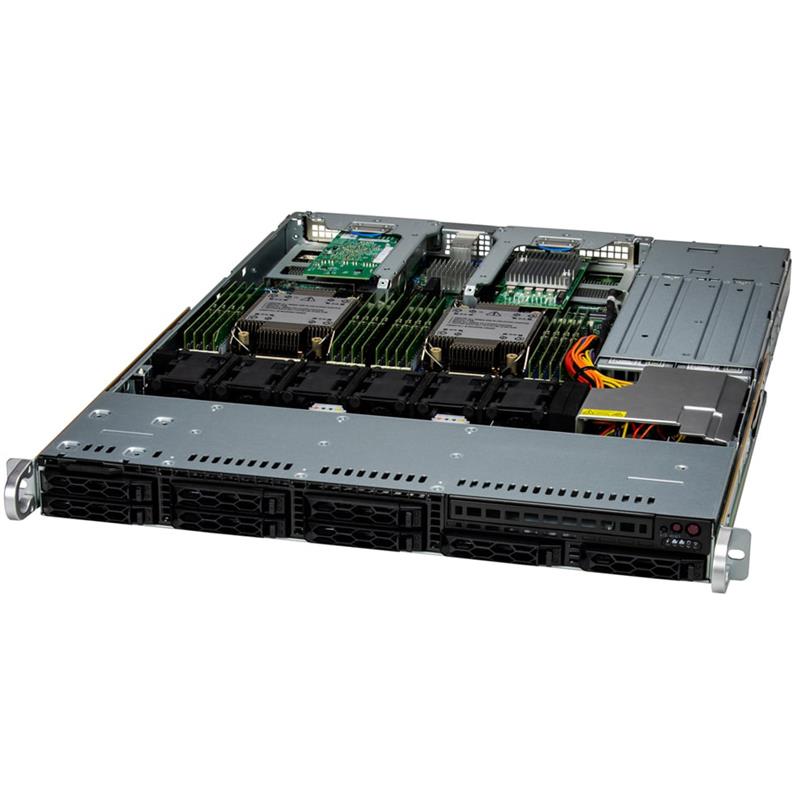

Supermicro SYS-121C-TN2R CloudDC 1U Barebone Dual Intel Xeon Scalable Processors 5th and 4th Generation
• Web Server, Firewall Application
• Data Center Optimized, Value IaaS
• Cloud Computing, Compact Server
• DNS & Gateway Servers, Firewall Application
• CDN, Edge Nodes
Barebone 1U Rackmount SuperServer, Supports Single Socket E (LGA-4677), Supporting Intel Xeon Scalable Processors 5th and 4th Generation, Up to 32C/64T, Up to 82.5MB Cache per CPU. Intel C741 Chipset, Up to 4TB in 16 DIMM slots, RDIMM, On-Board : SATA3 (6Gbps) Controller, RAID 0/1/5/10 Support, NVMe RAID 0/1/5/10 Support (VROC is Required), 8x 2.5in Hot-swap NVMe/SATA/SAS Drive Bays, Two M.2 NVMe M-Key: 2280, Network Connectivity : Dual AIOM (OCP 3.0) Slots with NCSI For Networking, 1 Dedicated IPMI LAN, 800W/860W Power Supply - (SYS-121C-TN2R + X13DDW-A)
1. Dual sockets E (LGA-4677) 5th and 4th Gen Intel® Xeon® Scalable processors
2. 16 DIMMs up to 4TB 3DS ECC DDR5-5600: RDIMM
3. 2 PCIe 5.0 x16 FHHL; 2 PCIe 5.0 x4 NVMe M.2
4. Dual AIOM (OCP 3.0) slots with NCSI for networking, 1 dedicated IPMI LAN
5. 8x 2.5" hot-swap SATA/SAS4 w/ 2x hybrid NVME drive bays
6. 1 VGA, 1 COM, 2 USB 3.0 (rear)
Extra Specifications for Supermicro SYS-121C-TN2R CloudDC 1U Barebone Dual Intel Xeon Scalable Processors 5th and 4th Generation
Product SKUs | ||
Product SKUs | SYS-121C-TN2R | |
Motherboard | ||
Motherboard | Super X13DDW-A | |
Processor | ||
CPU | Dual Socket E (LGA-4677) | |
4th Gen Intel® Xeon® Scalable processors | ||
Note | Certain high TDP CPUs have support conditions. Contact Technical Support or Representative for details | |
Supports up to 270W TDP CPUs (Air Cooled) | ||
System Memory | ||
Memory | Memory Capacity: 16 DIMM slots | |
Up to 4TB: 16x 256 GB DRAM | ||
Memory Type: 4800MHz ECC DDR5 RDIMM | ||
Memory Voltage | 1.1 V | |
Error Detection | ECC | |
On-Board Devices | ||
SATA | SATA3 (6Gbps); RAID 0/1/5/10 support | |
NVMe | NVMe; RAID 0/1/5/10 support (*VROC is required) | |
Chipset | Intel® C741 | |
Network Connectivity | with Advanced IO Module, AIOM (OCP 3.0 NIC, refer to AIOM Network Card(s) under Optional Parts List for options) | |
IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
Note | High TDP 200-400G NICs have support conditions due to thermal requirements. | |
Input / Output | ||
LAN | 1 Dedicated IPMI LAN port | |
USB | 2 USB 3.0 port(s) (2 rear) | |
Video | 1 VGA port(s) | |
Serial Port | 1 COM Port(s) (1 rear) | |
System BIOS | ||
BIOS Type | AMI 32MB SPI FLASH ROM | |
Management | ||
Software | Watch Dog | |
NMI | ||
KVM with dedicated LAN | ||
Redfish API | ||
SuperDoctor® 5 | ||
Intel® Node Manager | ||
IPMI 2.0 | ||
SUM | ||
SSM | ||
SPM | ||
SCC | ||
Power Configurations | ACPI/APM Power Management | |
PC Health Monitoring | ||
CPU | Monitors for CPU Cores, Chipset Voltages, Memory. | |
8 Phase-switching voltage regulator | ||
FAN | Status monitor for speed control | |
Pulse Width Modulated (PWM) fan connectors | ||
Fans with tachometer monitoring | ||
Temperature | Monitoring for CPU and chassis environment | |
Thermal Control for fan connectors | ||
Chassis | ||
Form Factor | 1U Rackmount | |
Model | CSE-LB13AC2-R860AW2 | |
Dimensions and Weight | ||
Height | 1.7" (43mm) | |
Width | 17.2" (437mm) | |
Depth | 23.5" (597mm) | |
Package | 7.8" (H) x 23.8" (W) x 32.4" (D) | |
Weight | Net Weight: 25 lbs (11.3 kg) | |
Gross Weight: 40 lbs (18.1 kg) | ||
Available Color | Black front & silver body | |
Front Panel | ||
Buttons | Power On/Off | |
Reset button | ||
Unit Identifier (UID) | ||
LEDs | Power status | |
Network activity | ||
Drive activity | ||
Universal Information | ||
Expansion Slots | ||
PCI-Express (PCIe) | 2 PCIe 5.0 x16 FHHL slot(s) | |
Drive Bays / Storage | ||
Hot-swap | 8x 2.5" hot-swap NVMe/SATA/SAS drive bays (2x 2.5" NVMe hybrid) (Storage drives require additional cables from the optional parts list.) | |
M.2 | M-Key, 2280 | |
2x PCIe 5.0 x4 | ||
Peripheral Bays | 1 DVD slot drive bays (optional) | |
System Cooling | ||
Fans | 6x 4cm heavy duty fans with optimal fan speed control | |
Air Shroud | 2 Air Shroud(s) | |
Power Supply | ||
Dimension (W x H x L) | 54.5 x 40.25 x 322 mm | |
AC Input | 800W: 100-127Vac / 9A-7.5A / 50-60Hz | |
860W: 200-240Vac / 6A-4.5A / 50-60Hz | ||
+12V | Max: 66.6A / Min: 0A (100Vac-127Vac) | |
Max: 71.6A / Min: 0A (200Vac-240Vac) | ||
5V SB | Max: 4A / Min: 0A | |
Output Type | Backplanes (gold finger) | |
Certification | Platinum Level | |
Operating Environment | ||
Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
Operating Relative Humidity: 8% to 90% (non-condensing) | ||
Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) |
Name | Part Number | Price | Add to Cart | Qty. | Description | |
---|---|---|---|---|---|---|
3808 HBA Card | AOC-S3808L-L8IT | $ 397.50 | 1 | Standard LP 8 internal ports (12Gb/s) Gen-4 16HDD HBA | ||
3808 HBA Card | CBL-SAST-1276F-100 | $ 37.00 | 1 | Slimline x8 (LE) to 2x Slimline x4 (STR) 76/76CM, alternative: CBL-SAST-1264F-100 | ||
3908 RAID Card | AOC-S3908L-H8IR-16DD | $ 695.50 | 1 | Standard LP 8 internal ports (12Gb/s) Gen-4 122HDD RAID 0, 1, 5, 6, 10, 50, 60 | ||
3908 RAID Card | CBL-SAST-1276F-100 | $ 37.00 | 1 | Slimline x8 (LE) to 2x Slimline x4 (STR) 76/76CM, alternative: CBL-SAST-1264F-100 | ||
3908/3916 CacheVault | BTR-CVPM05 | $ 207.50 | 1 | CacheVault for Broadcom 3908/3916 (requires a mount) | ||
AIOM Network Card | AOC-A25G-i2SM | 0 | OCP 3.0 AIOM 2x 25GbE SFP28 PCIe x8 Intel® E810-XXVAM2 | |||
AIOM Network Card | AOC-ATG-i2TM | 0 | OCP 3.0 AIOM 2x 10GbE RJ45 PCIe 3.0 x4 Intel® X550-AT2 | |||
AIOM Network Card | AOC-ATG-i2T2SM | 0 | OCP 3.0 AIOM 4x 10GbE RJ45 & SFP+ PCIe x8 Intel® X710-TM4 | |||
AIOM Network Card | AOC-ATG-i2SM | 0 | OCP 3.0 AIOM 2x 10GbE SFP+ PCIe 3.0 x8 Intel® X710-BM2 | |||
AIOM Network Card | AOC-ATG-b2TM | 0 | OCP 3.0 AIOM 2x 10GbE RJ45 PCIe 3.0 x4 Broadcom® BCM57416 | |||
AIOM Network Card | AOC-AH25G-m2S2TM | 0 | OCP 3.0 AIOM 2x 25GbE SFP28 & 2x 10GbE RJ45 PCIe x8/x4 Mellanox® CX4 Lx EN & Intel® X550-AT2 | |||
AIOM Network Card | AOC-AG-i4SM | 0 | OCP 3.0 AIOM 4x 1GbE SFP PCIe 2.1 x4 Intel® i350-AM4 | |||
AIOM Network Card | AOC-AG-i4M | 0 | OCP 3.0 AIOM 4x 1GbE RJ45 PCIe 2.1 x4 Intel® i350-AM4 | |||
AIOM Network Card | AOC-AG-i2M | 0 | OCP 3.0 AIOM 2x 1GbE RJ45 PCIe 2.1 x4 Intel® i350-AM2 | |||
AIOM Network Card | AOC-A25G-m2SM | 0 | OCP 3.0 AIOM 2x 25GbE SFP28 PCIe x8 Mellanox® CX-6 LX | |||
AIOM Network Card | AOC-A25G-i4SM | 0 | OCP 3.0 AIOM 4x 25GbE SFP28 PCIe x8 Intel® E810-CAM1 | |||
AIOM Network Card | AOC-A25G-b2SM | 0 | OCP 3.0 AIOM 2x 25GbE SFP28 PCIe x8 Broadcom® BCM57414 | |||
AIOM Network Card | AOC-A100G-b2CM | 0 | OCP 3.0 AIOM 2x 100GbE QSFP28 PCIe 4.0 x16 Broadcom® BCM57508 | |||
AIOM Network Card | AOC-ATG-i4SM | 0 | OCP 3.0 AIOM 4x 10GbE SFP+ PCIe 3.0 x8 Intel® XL710-BM1 | |||
AIOM Network Card | AOC-ATGC-i2TM | 0 | OCP 3.0 AIOM 2x 10GbE RJ45 PCIe 3.0 x4 Intel® X710-AT2 | |||
Cable Management Arm | MCP-290-00152-0N | $ 152.50 | 1 | 1U Supermicro Cable Management Arm 2nd Gen | ||
CacheVault Mount | MCP-240-00127-0N | $ 20.50 | 1 | CacheVault mounting tray for 2.5" drive bay | ||
CacheVault Mount | MCP-240-00203-0N | $ 26.50 | 1 | CacheVault mounting bracket for PCIe slot | ||
CacheVault Mount | MCP-240-21747-0N | 1 | CacheVault mounting card for AIOM slot | |||
DVD | DVM-HLDS-DVDRW-SBT2 | $ 59.50 | 1 | BLACK TEAC SLIM DVD-RW SATA DRIVE | ||
DVD | MCP-220-81502-0N | $ 28.50 | 1 | Slim SATA DVD mounting kit | ||
DVD | CBL-SAST-1295LP-100 | $ 36.50 | 1 | SlimlineLP x4 (STR) to 4x SATA (STR) 75/75/90/90/75CM | ||
DVD | CBL-0234L | $ 18.50 | 1 | Big-4-pin M Y-split to two Big-4-pin F | ||
DVD | CBL-0161L | $ 17.00 | 1 | 15 cm power Y-split to 2x small 4-pins | ||
Fan Upgrade | FAN-0216L4-2 | $ 48.50 | 6 | 40x40x56 mm, 31K-26.6K RPM, Counter-rotating Fan, Non-service-hot-swappable | ||
Front USB | MCP-220-00087-0B | $ 33.50 | 1 | Black USB tray for slim DVD bay | ||
Heatsink Upgrade | SNK-P0087V | $ 0.00 | 2 | 1U Passive CPU VC HS for X13 Intel Eagle Stream Platform | ||
License | SFT-SDDC-SINGLE | $ 303.50 | 1 | Supermicro Data Center Monitor License | ||
License | SFT-DCMS-SINGLE • | 1 | Supermicro System Managment Software License | |||
M.2 Tray | AOC-SLG4-2H8M2 | $ 224.00 | 0 | Standard LP PCIe x8 supporting 2 PCIe 4.0 x4 M-Key M.2 NVMe/SATA Modules RAID 0, 1 | ||
NC-SI Cable | CBL-PWEX-1099-34 | 1 | FLAT IDC 2X11F/P1.27 TO IDC 2X11F/P1.27 NCSI 0.5A 35CM | |||
NVMe Cable | CBL-MCIO-1235M5Y • | 1 | MCIO x8 STR to MCIO 2 x4 STR 35CM | |||
Power Supply Upgrade | PWS-1K27A-1R | $ 370.00 | 2 | 1200W Redundant Titanium Power Supply | ||
SATA Cable | CBL-SAST-1274LP-100 | $ 44.00 | 1 | SlimlineLP x8 (LE) to 2x Slimline x4 (STR) 68/76CM | ||
TPM | AOM-TPM-9670V | $ 56.50 | 1 | SPI capable TPM 2.0 with Infineon 9670 controller vertical form factor | ||
TPM | AOM-TPM-9670V-S-FIPS | $ 63.50 | 1 | SPI capable TPM 2.0 with Infineon 9670 controller w/ FIPS vertical form factor | ||
TPM | AOM-TPM-9672V | $ 72.00 | 1 | SPI capable TPM 2.0 with Infineon 9672 controller vertical form factor | ||
TPM | AOM-TPM-9672V-FIPS | $ 78.00 | 1 | SPI capable TPM 2.0 with Infineon 9672 controller w/ FIPS vertical form factor | ||
VROC HW Key | AOC-VROCSTNMOD | $ 176.00 | 1 | Intel VROC Standard RAID 0, 1, 10 | ||
VROC HW Key | AOC-VROCPREMOD | $ 344.50 | 1 | Intel VROC Premium RAID 0, 1, 5, 10 |
