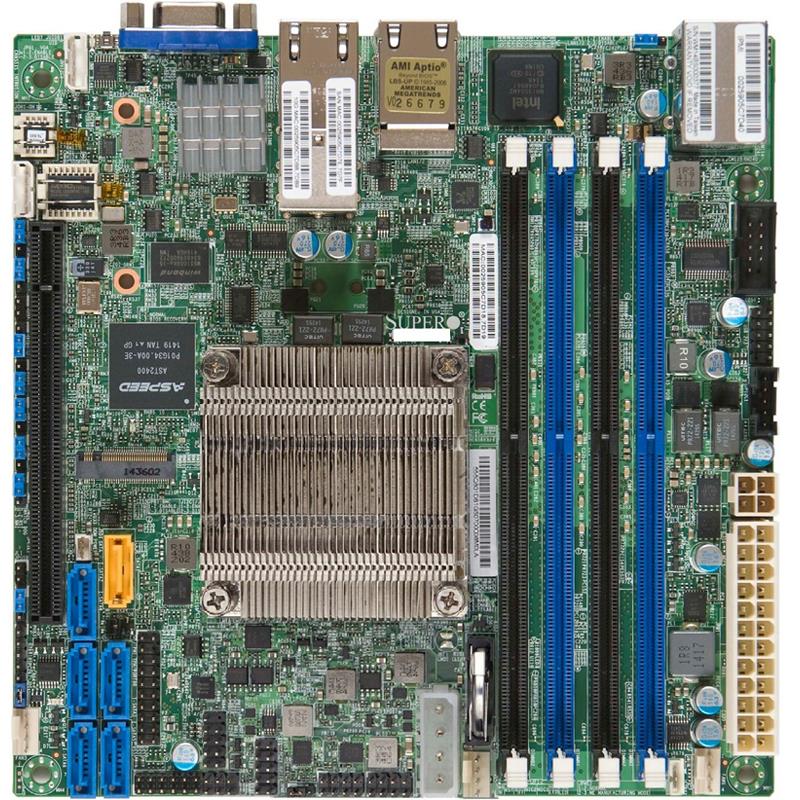

- Supermicro X10SDV-16C-TLN4F Motherboard SoC Xeon D-1587 16-Core, FCBGA 1667
Supermicro X10SDV-16C-TLN4F Motherboard SoC Xeon D-1587 16-Core, FCBGA 1667
Offers 6x SATA3 ports, 1 SuperDOM, 1 COM
Embedded Intel Xeon D-1587 processor 16-core/32 threads
Handles up to 128GB ECC RDIMM DDR4-2133 in 4 DIMM slots
Includes 1x PCIe 3.0 x16 slot, 1x M.2 PCIe 3.0 x4 slot (M-Key 2242/2280)
Motherboard Mini-ITX SoC Xeon D-1587 16-Core, FCBGA 1667 - Up to 128GB DDR4 ECC RDIMM (4x DDR4 sockets) - On-board : SATA (SoC), 2x 10GBase-T Ethernet, 2x Gigabit Ethernet, IPMI 2.0, VGA, SuperDOM Power Connector - MBD-X10SDV-16C-TLN4F -O - optimized for SC505/SC504 1U Chassis (Retail Box)
1. Intel® Xeon® processor D-1587, Single socket FCBGA 1667; 16-Core, 32 Threads, 65W
2. System on Chip
3. Up to 128GB ECC RDIMM DDR4 2133MHz or 64GB ECC/non-ECC UDIMM in 4 sockets
4. 1 PCI-E 3.0 x16, M.2 PCI-E 3.0 x4 (SATA support), M Key 2242/2280
5. 2 10GbE and 2 GbE LAN ports
6. 6 SATA3 (6Gbps) ports via SoC
7. 2 USB 3.0 ports (rear) 4 USB 2.0 ports (via headers)
8. 1 SuperDOM, 1 COM, TPM header, GPIO and SMbus headers
9. 12V DC Input and ATX Power Source
Extra Specifications for Supermicro X10SDV-16C-TLN4F Motherboard SoC Xeon D-1587 16-Core, FCBGA 1667
| System Memory | ||
| DIMM Sizes | 4GB, 8GB, 16GB, 32GB | |
| Error Detection | Corrects single-bit errors | |
| Detects double-bit errors (using ECC memory) | ||
| Memory Capacity | Up to 128GB Registered ECC RDIMM | |
| Up to 64GB Unbuffered ECC/non-ECC UDIMM, in 4 DIMM slots | ||
| Memory Voltage | 1.2V | |
| Memory Type | 2133/1866/1600MHz ECC DDR4 ECC RDIMM and ECC/Non-ECC UDIMM | |
| On-Board Devices | ||
| Chipset | System on Chip | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Network Controllers | Dual LAN with Intel® Ethernet Controller I350-AM2 Dual LAN with 10Gbase-T Built in with D-1500 SoC Single LAN with Virtual Machine Device Queues reduce I/O overhead Single LAN with Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output Single LAN with 1 Realtek RTL8211E PHY (dedicated IPMI) | |
| Graphics | Aspeed AST2400 BMC | |
| SATA | SoC controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10 | |
| RSTe | ||
| Input / Output | ||
| LAN | 2 RJ45 Gigabit Ethernet LAN ports | |
| 2 RJ45 10GBase-T ports | ||
| 1 RJ45 Dedicated IPMI LAN port | ||
| SATA | 6 SATA3 (6Gbps) port | |
| USB | 2 USB 3.0 ports (2 rear) | |
| 4 USB 2.0 ports (4 headers, Type A)) | ||
| Video Output | 1 VGA port | |
| Serial Port / Header | 1 COM Port (1 header) | |
| TPM | TPM Header | |
| System BIOS | ||
| BIOS Features | UEFI 2.4 | |
| ACPI 5.0 | ||
| USB Keyboard support | ||
| RTC (Real Time Clock) Wakeup | ||
| PCI 3.0 | ||
| Hardware BIOS Virus protection | ||
| SMBIOS 2.8 | ||
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS | |
| Management | ||
| Power Configurations | Power-on mode for AC power recovery | |
| ACPI Power Management | ||
| CPU Fan auto-off in sleep mode | ||
| Software | Intel® Node Manager, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, IPMI2.0, KVM with dedicated LAN, NMI, SUM, SuperDoctor® 5, Watchdog | |
| System Management Software | SUM | |
| Product SKUs | ||
| Product SKUs | ||
| Physical Stats | ||
| Form Factor | Mini-ITX | |
| Dimensions | 6.7" x 6.7" (17.02cm x 17.02cm) | |
| Processor/Cache | ||
| CPU | Intel® Xeon® Processor D-1587. | |
| Single Socket FCBGA1667 supported, CPU TDP support 65W | ||
| Cores / Cache | 16 cores, 32 threads / 24MB cache | |
| Expansion Slots | ||
| PCI-E | 1 PCI-E 3.0 x16 | |
| Support for SATA devices | ||
| M.2 | 1 M.2 M-Key SATA/PCI-E 3.0 x4, 2242/2280 | |
| PC Health Monitoring | ||
| Voltage | +1.8V, +12V, +3.3V, +5V, Chassis intrusion header, HT, Memory, Memory Voltages, Monitors for CPU Cores, Supports system management utility, System level control, System temperature | |
| FAN | 4x 4-pin fan headers (up to 4 fans), 4 fans with tachometer monitoring, Dual Cooling Zone, Fan speed control, Low noise fan speed control, Overheat LED indication, Pulse Width Modulated (PWM) fan connectors, PWM fan speed control, Status monitoring for on/off control, Status monitoring for speed control, System level control, Thermal control tachometer fan connectors | |
| Temperature | Monitoring for CPU and chassis environment, CPU thermal trip support, PECI, Thermal Monitor 2 (TM2) support | |
| LED | CPU / System Overheat LED, UID/Remote UID | |
| Other Features | 12V DC or ATX Power Source, 4-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Dual Cooling Zones, Hyper-Speed Technology hardware acceleration, M.2 NGFF connector, Node Manager Support, RoHS, SDDC, System level control, UID, WOL | |
| Operating Environment | ||
| Operating Temperature Range | 0°C ~ 60°C (32°F ~ 140°F) | |
| Non-Operating Temperature Range | -20°C ~ 60°C (-4°F ~ 140°F) | |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) | |
| Non-Operating Relative Humidity Range | 10% ~ 95% (non-condensing) | |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| 1U I/O Shield | MCP-260-00085-0B | $ 21.00 | 1 | 1U I/O Shield for X10SDV-F/TLN4F in CSE-510/505/504 | ||
| 1U I/O Shield | MCP-260-00079-0N | $ 20.00 | 1 | 1U I/O shield for X10SDV-F/TLN4F in SC813/SC512 chassis |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
