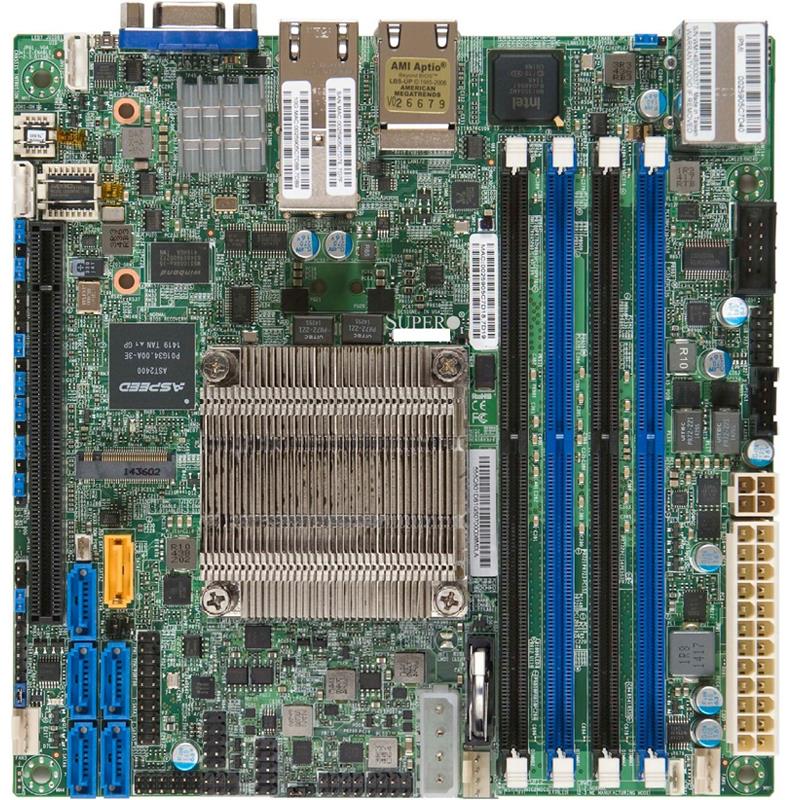

Supermicro X10SDV-16C-TLN4F Motherboard SoC Xeon D-1587 16-Core, FCBGA 1667

• SoC controller for 6 SATA3 (6Gbps) ports
• Up to 128GB DDR4 ECC RDIMM Memory
• 2x 10GbE; dual 1GbE LAN; 1 IPMI LAN port
• Xeon processor D-1587; 16-Core; 32 Threads

Motherboard Mini-ITX SoC Xeon D-1587 16-Core, FCBGA 1667 - Up to 128GB DDR4 ECC RDIMM (4x DDR4 sockets) - On-board : SATA (SoC), 2x 10GBase-T Ethernet, 2x Gigabit Ethernet, IPMI 2.0, VGA, SuperDOM Power Connector - MBD-X10SDV-16C-TLN4F -O - optimized for SC505/SC504 1U Chassis (Retail Box)

    2,202.00 2,202.00 2202.0 USD


    Option not available


    This combination does not exist.

    Add to Cart

    • System on Chip
    • 6x SATA3 (6Gbps) ports via SoC
    • 12V DC input and ATX Power Source
    • Dual 10GbE LAN and dual 1GbE LAN
    • 2x USB 3.0 ports (rear), 4x USB 2.0 ports (via headers)
    • Expansion slot: 1x PCIe 3.0 x16 M.2 PCIe 3.0 x4, M Key 2242/2280
    • 1x SuperDOM, 1x COM, TPM 1.2 header, GPIO and SMbus headers
    • Up to 128GB ECC RDIMM DDR4 2133MHz or 64GB ECC/non-ECC UDIMM in 4 sockets
    • Intel Xeon processor D-1587, Single socket FCBGA 1667; 16-Core, 32 Threads, 65W

    Extra Specifications for Supermicro X10SDV-16C-TLN4F Motherboard SoC Xeon D-1587 16-Core, FCBGA 1667

    Main Specifications
    Device Type Xeon Board
    Dimensions (WxDxH) 6.7" x 6.7", (17cm x 17cm)
    Form Factor Mini-ITX
    Installed Brand Intel® Xeon® processor D-1587, CPU TDP support 65W, 24MB, 16 Cores, 32 Threads
    Processor Sockets FCBGA 1667 supported
    System Memory
    DIMM Sizes 32GB, 16GB, 8GB, 4GB
    Error Detection Corrects single-bit errors, Detects double-bit errors (using ECC memory)
    Memory Capacity 4x DDR4 DIMM sockets
      Supports up to 128GB DDR4 ECC RDIMM
      Supports up to 64GB DDR4 ECC/non-ECC UDIMM
    Memory Type 2133/1866/1600MHz ECC DDR4 ECC RDIMM and ECC/Non-ECC UDIMM
    Memory Voltage 1.2 V
    On-Board Devices
    Chipset System on Chip
    IPMI Support for Intelligent Platform Management Interface v.2.0
      IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    Network Controllers Dual LAN via Intel® i350-AM2 Gigabit Ethernet
      Dual LAN via SoC 10GBase-T
      Virtual Machine Device Queues reduce I/O overhead
      Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
      1x Realtek RTL8201N PHY (dedicated IPMI)
    SATA System on Chip
    TPM TPM header
    Video Aspeed AST2400
    Input / Output
    DOM 1x SuperDOM (Disk on Module) power connector
    LAN 2x RJ45 10GBase-T ports
      2x RJ45 Gigabit Ethernet LAN ports
      1x RJ45 Dedicated IPMI LAN port
    SATA 6x SATA3 (6Gbps) ports
    Serial Port / Headers 1x COM port (header)
    USB 2x USB 3.0 ports (rear), 4x USB 2.0 ports (via headers)
    VGA 1x VGA port
    Chassis Optimized for
    1U Chassis SC504-203B, SC505-203B
    Important Chassis Notes To support the new generation Intel® Xeon® processor-based motherboards, Revision N chassis is recommended.
    Expansion / Connectivity
    Expansion Slots Total (Free) 1x PCIe 3.0 x16 slot
      M.2 PCIe 3.0 x4, M Key 2242/2280
    System BIOS
    BIOS Features PCI 3.0, ACPI 5.0, USB Keyboard support, Hardware BIOS Virus protection, SMBIOS 2.8, UEFI 2.4, RTC (Real Time Clock) Wakeup
    BIOS Type 128Mb SPI Flash with AMI BIOS
    Power Configurations ACPI / APM Power Management, CPU Fan auto-off in sleep mode, Power-on mode for AC power recovery
    Software IPMI 2.0, KVM with dedicated LAN, NMI, SUM, SuperDoctor® 5, Watch Dog
    Environmental Standards
    Operating Temperature 0°C - 60°C (32°F - 140°F)
    Parts List
    Cables 2x CBL-0044L
    I/O Shield 1x MCP-260-00084-0N
    Motherboard 1x MBD-X10SDV-16C-TLN4F
    Warranty:3 years labor, 1 year parts, 120 days advanced replacement (DOA)
    Phone No.:305-640-0300
    URL:Click here for Manufacturer Website
    Coverage:Replacement or Repair
    Average Service Time:Overnight Replacement for 120 days, 2 weeks afterwards
