| Product SKUs |

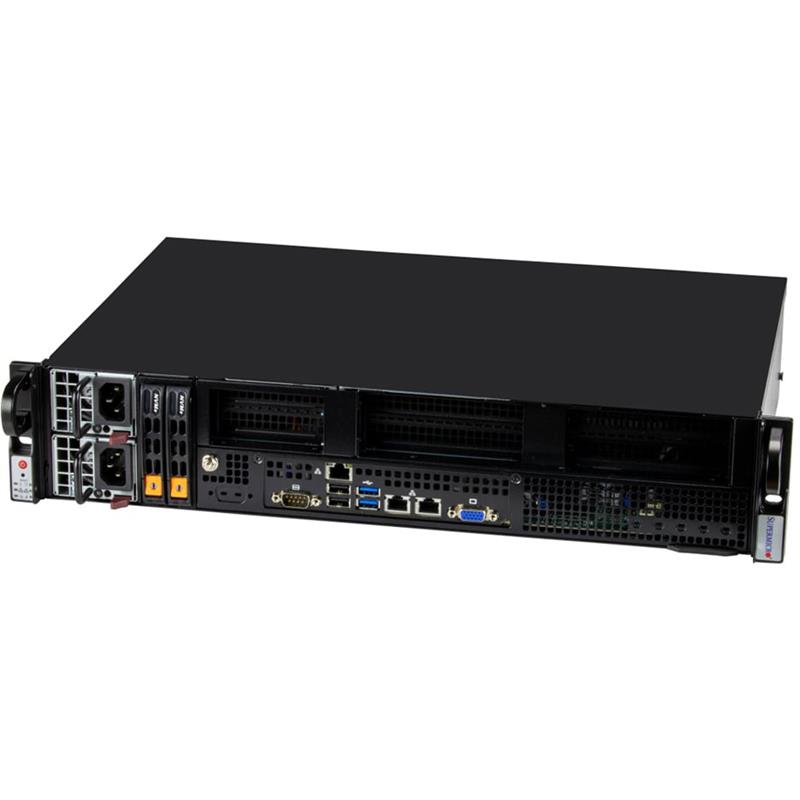

| Product SKUs | SYS-211E-FRN2T |
| Motherboard |
| Motherboard | Super X13SEM-TF |
| Processor |
| CPU | 4th Gen Intel® Xeon® Scalable processors |
| Single Socket E (LGA-4677) |
| Cores | Up to 32C/64T; Up to 82.5MB Cache |
| Note | Supports up to 270W TDP CPUs (Air Cooled) |
| CPUs (Air Cooled) with TDP over 225W are only supported under specific conditions. Contact customer support for details. |
| System Memory |
| Memory | Memory Capacity: 8 DIMM slots |
| Up to 2TB: 8x 256 GB DRAM |
| Memory Type: 4800MHz ECC DDR5 RDIMM/LRDIMM |
| Memory Voltage | 1.1 V |
| Error Detection | ECC |
| On-Board Devices |
| NVMe | NVMe; RAID 0/1 support (Intel® VROC RAID Key required) |
| Chipset | Intel® C741 |
| Network Connectivity | 2x 10GbE BaseT with Intel® X550 |
| 2x 10GbE SFP+ with Intel® X710-BM2 (optional) |
| 2x 100GbE QSFP28 with Intel® E810-CAM2 (optional) |
| 2x 25GbE QSFP28 with Intel® XXV710 (optional) |
| 2x 25GbE QSFP28 with Intel® E810-CAM1 (optional) |
| 2x 40GbE QSFP+ with Intel® XL710-BM2 (optional) |
| 4x 1GbE BaseT with Intel® i350 (optional) |
| 2x 200GbE QSFP56 with Mellanox® MT28908A0-XCCF-HVM (optional) |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Input / Output |
| LAN | 1 RJ45 Dedicated BMC LAN port |
| 2 RJ45 10GbE (Intel® X550-AT2) |
| USB | 2 USB 3.0 port(s) (2 front) |
| 2 USB 2.0 port(s) (2 front) |
| Video | 1 VGA port(s) |
| Serial Port | 1 COM Port(s) (1 front) |
| System BIOS |
| BIOS Type | AMI 256MB SPI Flash |
| Management |
| Software | Watch Dog |
| NMI |
| KVM with dedicated LAN |
| Redfish API |
| SuperDoctor® 5 |
| Intel® Node Manager |
| IPMI 2.0 |
| SUM |
| SSM |
| SPM |
| Power Configurations | ACPI Power Management |
| PC Health Monitoring |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| FAN | Status monitor for speed control |
| Pulse Width Modulated (PWM) fan connectors |
| Fans with tachometer monitoring |
| Temperature | Monitoring for CPU and chassis environment |
| CPU thermal trip support, PEPI |
| Chassis |
| Form Factor | 2U Rackmount |
| Model | CSE-211M |
| Dimensions and Weight |
| Height | 3.5" (88.9mm) |
| Width | 17.2" (436.88mm) |
| Depth | 11.8" (298.8mm) |
| Package | 7.4" (H) x 19.3" (W) x 23.3" (D) |
| Weight | Net Weight: 17 lbs (7.7 kg) |
| Gross Weight: 22 lbs (10 kg) |
| Available Color | Silver/Black |
| Front Panel |
| Buttons | UID button |
| Power On/Off |
| LEDs | HDD activity |
| Power status |
| LAN1 activity |
| System information |
| LAN2 activity |
| Expansion Slots |
| PCI-Express (PCIe) | 1 PCIe 5.0 x16 HHHL slot(s) |
| 1 PCIe 5.0 x8 HHHL slot(s) |
| 2 PCIe 5.0 x16 FHHL slot(s) |
| Drive Bays / Storage |
| Hot-swap | 2x 2.5" hot-swap NVMe drive bays (2x 2.5" NVMe dedicated) |
| M.2 | M-Key, 2280/22110 |
| 2 M.2 NVMe |
| System Cooling |
| Fans | 4x 4-PIN PWM 8cm Fan(s) |
| Power Supply |
| Dimension (W x H x L) | 54.5 x 40 x 220 mm |
| Certification |
| Operating Environment |
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Operating Temperature: 0°C ~ 35°C (32°F ~ 95°F) |
