- Supermicro SYS-211E-FRN2T IoT 2U Barebone Single Intel Xeon Scalable Processors 5th and 4th Generation
Supermicro SYS-211E-FRN2T IoT 2U Barebone Single Intel Xeon Scalable Processors 5th and 4th Generation
• 5G Core and Edge
• AI Inference and Machine Learning
• Network Function Virtualization
• Cloud Computing
Barebone 2U Rackmount SuperServer, Supports Single Socket E (LGA-4677), Supporting Intel Xeon Scalable Processors 5th and 4th Generation, Up to 60C/120T, Up to 112.5MB Cache. Intel C741 Chipset, Up to 2TB in 8 DIMM slots, RDIMM/LRDIMM, On-Board : NVMe RAID 0/1 Support (Intel VROC RAID Key Required), 2x 2.5in Hot-swap NVMe Drive Bays (2x 2.5in NVMe dedicated), Two M.2 NVMe M-Key: 2280/22110, Network Connectivity : 2x 10GbE Ports, 1x RJ45 Dedicated BMC LAN Port, 800W Power Supply - (SYS-211E-FRN2T + X13SEM-TF)
1. Design with compliance to NEBS-Level 3
2. Single Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processors
3. 8 DIMM slots; Up to 2TB 3DS ECC DDR5-5600; R-DIMM/R-DIMM 3DS
4. Up to 3 PCIe 5.0 x16 FHHL, 1 PCIe 5.0 X16 HHHL & 1 PCIe 5.0 x8 FHHL expansion slots for Accelerator Add-On-Cards Up to 6 Configurable PCIe 5.0 slots (4 standard + 2 optional)
5. Onboard 2x 10GbE ports
6. 2x 2.5" NVMe drive bays
7. Redundant 800W AC Power Supplies
8. Ultra short depth, 2U Front I/O Edge Server
Extra Specifications for Supermicro SYS-211E-FRN2T IoT 2U Barebone Single Intel Xeon Scalable Processors 5th and 4th Generation
| Product SKUs | ||
| Product SKUs | SYS-211E-FRN2T | |
| Motherboard | ||
| Motherboard | Super X13SEM-TF | |
| Processor | ||
| CPU | 4th Gen Intel® Xeon® Scalable processors | |
| Single Socket E (LGA-4677) | ||
| Cores | Up to 32C/64T; Up to 82.5MB Cache | |
| Note | Supports up to 270W TDP CPUs (Air Cooled) | |
| CPUs (Air Cooled) with TDP over 225W are only supported under specific conditions. Contact customer support for details. | ||
| System Memory | ||
| Memory | Memory Capacity: 8 DIMM slots | |
| Up to 2TB: 8x 256 GB DRAM | ||
| Memory Type: 4800MHz ECC DDR5 RDIMM/LRDIMM | ||
| Memory Voltage | 1.1 V | |
| Error Detection | ECC | |
| On-Board Devices | ||
| NVMe | NVMe; RAID 0/1 support (Intel® VROC RAID Key required) | |
| Chipset | Intel® C741 | |
| Network Connectivity | 2x 10GbE BaseT with Intel® X550 | |
| 2x 10GbE SFP+ with Intel® X710-BM2 (optional) | ||
| 2x 100GbE QSFP28 with Intel® E810-CAM2 (optional) | ||
| 2x 25GbE QSFP28 with Intel® XXV710 (optional) | ||
| 2x 25GbE QSFP28 with Intel® E810-CAM1 (optional) | ||
| 2x 40GbE QSFP+ with Intel® XL710-BM2 (optional) | ||
| 4x 1GbE BaseT with Intel® i350 (optional) | ||
| 2x 200GbE QSFP56 with Mellanox® MT28908A0-XCCF-HVM (optional) | ||
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Input / Output | ||
| LAN | 1 RJ45 Dedicated BMC LAN port | |
| 2 RJ45 10GbE (Intel® X550-AT2) | ||
| USB | 2 USB 3.0 port(s) (2 front) | |
| 2 USB 2.0 port(s) (2 front) | ||
| Video | 1 VGA port(s) | |
| Serial Port | 1 COM Port(s) (1 front) | |
| System BIOS | ||
| BIOS Type | AMI 256MB SPI Flash | |
| Management | ||
| Software | Watch Dog | |
| NMI | ||
| KVM with dedicated LAN | ||
| Redfish API | ||
| SuperDoctor® 5 | ||
| Intel® Node Manager | ||
| IPMI 2.0 | ||
| SUM | ||
| SSM | ||
| SPM | ||
| Power Configurations | ACPI Power Management | |
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory | |
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| CPU thermal trip support, PEPI | ||
| Chassis | ||
| Form Factor | 2U Rackmount | |
| Model | CSE-211M | |
| Dimensions and Weight | ||
| Height | 3.5" (88.9mm) | |
| Width | 17.2" (436.88mm) | |

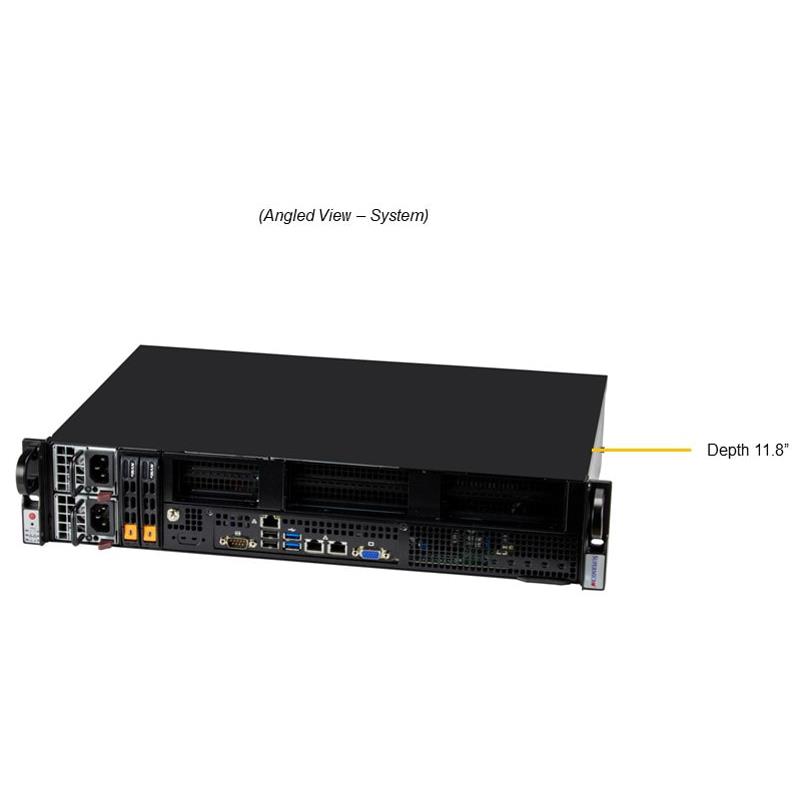

| Depth | 11.8" (298.8mm) | |
| Package | 7.4" (H) x 19.3" (W) x 23.3" (D) | |
| Weight | Net Weight: 17 lbs (7.7 kg) | |
| Gross Weight: 22 lbs (10 kg) | ||
| Available Color | Silver/Black | |
| Front Panel | ||
| Buttons | UID button | |
| Power On/Off | ||
| LEDs | HDD activity | |
| Power status | ||
| LAN1 activity | ||
| System information | ||
| LAN2 activity | ||
| Expansion Slots | ||
| PCI-Express (PCIe) | 1 PCIe 5.0 x16 HHHL slot(s) | |
| 1 PCIe 5.0 x8 HHHL slot(s) | ||
| 2 PCIe 5.0 x16 FHHL slot(s) | ||
| Drive Bays / Storage | ||
| Hot-swap | 2x 2.5" hot-swap NVMe drive bays (2x 2.5" NVMe dedicated) | |
| M.2 | M-Key, 2280/22110 | |
| 2 M.2 NVMe | ||
| System Cooling | ||

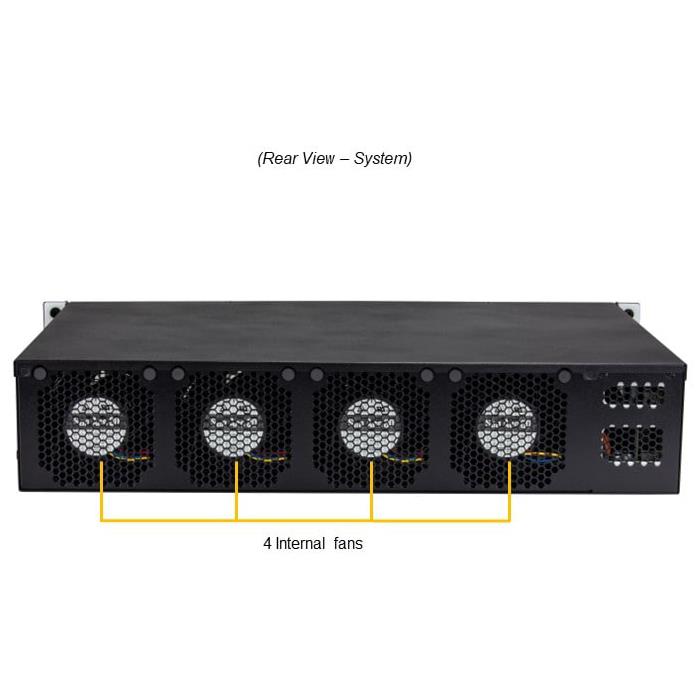

| Fans | 4x 4-PIN PWM 8cm Fan(s) | |
| Power Supply | ||
| Dimension (W x H x L) | 54.5 x 40 x 220 mm | |
| Certification | ||
| Operating Environment | ||
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Operating Temperature: 0°C ~ 35°C (32°F ~ 95°F) | ||
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X13SEM-TF | 1 | Super X13SEM-TF Motherboard | |
| Motherboard / Chassis | CSE-211M | 1 | 2U Chassis | |
| Backplane | BPN-NVME5-826N-B2B | 1 | 2-Port PCIe Gen 5 U.2 NVMe SSD Storage Backplane | |
| Cable | CBL-MCIO-1230M5 | 1 | MCIO x8 (STR to STR),30CM,85OHM,RoHS | |
| Cable | CBL-PCBA-G5T16-0809 | 1 | [NR] 2 PCIe Gen5 x16+pwr 08/09cm,30AWG,85 Ohm,RoHS | |
| Cable | CBL-PWCD-0160-IS | 2 | PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH | |
| Cable | CBL-MCIO-1218M5 OR | 1 | MCIO x8 (STR to STR),18CM,85OHM,RoHS | |
| Cable | CBL-MCIO-1218M5-1 | 0 | MCIO x8 (STR to STR),18CM,85OHM,RoHS | |
| Cable | CBL-MCIO-1218M5R OR | 1 | MCIO (x8 STR to x8 RA),18CM,85OHM,RoHS | |
| Cable | CBL-MCIO-1218M5R-1 | 0 | MCIO x8 (STR to RA),18CM,85OHM,RoHS | |
| Cable | CBL-MCIO-1230M5R OR | 1 | MCIO x8 (STR to RA),30CM,85OHM,RoHS | |
| Cable | CBL-MCIO-1230M5R-1 | 0 | [NR] MCIO x8 (STR to RA),30CM,85OHM,RoHS | |
| Cable | CBL-CDAT-1058 | 1 | [NR] NCSI 2x8 to 2x8, Ph2.54, 60cm shielded,28AWG, RoHS,RoHS | |
| Drive Tray(s) | MCP-220-00167-0B | 2 | Gen 3 2.5-inch Tool-less NVMe drive tray (clip design),RoHS | |
| Drive Tray(s) | MCP-220-00147-0B | 2 | Black gen-3 hot-swap 2.5"; Tool-less HDD tray (clip design) | |
| Parts | MCP-260-21102-0B | 1 | 1U height IO shield for X13SEM-F/TF MBD, with gasket, bl | |
| Air Shroud | MCP-310-21105-0B | 1 | Mylar air shroud for 211M w/ X13SEM-TF | |
| Manual | MNL-2519-QRG | 1 | 211E-FRDN2T/FRN2T Quick Reference Guide | |
| Power Distributor | PDB-PT211M-3424 | 1 | 2U support redundancy powers up to 800W for SC211M with 2 Mi | |
| Power Supply | PWS-804S-1R | 2 | 800W 100-240Vac input, Platinum, base module PWS-804P-1R | |
| Riser Card | RSC-S-68G5 | 1 | 1U LHS Standard riser card with one PCIe 5.0X16andonePC | |
| Software | SFT-OOB-LIC | 1 | License key for enabling OOB BIOS management | |
| Heatsink / Retention | SNK-P0088P | 1 | 2U Passive CPU HS for X13 EGS and X14-SP BHS-SP Systems | |
| *Fan | FAN-0220L4 | 4 | 80x80x38 mm, 14.9K RPM Exhaust Fan for SYS-120P-FRDN6T Serve | |
| *Front Panel | FPB-TB826 | 1 | 16 pin Cable Adaptor Board for SC826 | |
| *Rail Set | MCP-290-21106-0N | 1 | 1U height sliding rail for SC211M chassis |
Note:
• Parts with * are inside the chassis
• Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
