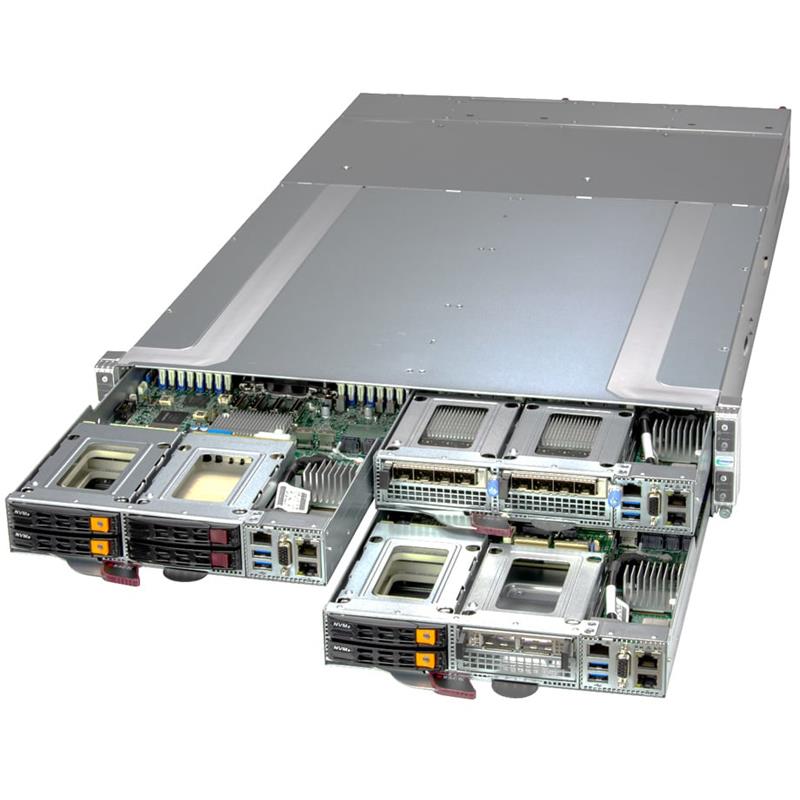

- Supermicro SYS-211GT-HNC8F GrandTwin 2U Barebone Four Hot-pluggable Nodes Dual Intel Xeon Scalable Processors 5th/4th Generation and Intel Xeon CPU Max Series
Supermicro SYS-211GT-HNC8F GrandTwin 2U Barebone Four Hot-pluggable Nodes Dual Intel Xeon Scalable Processors 5th/4th Generation and Intel Xeon CPU Max Series
• HPC
• Cloud Gaming
• Telco Edge
• MEC (Multi-Access Edge Computing)
• Multi-Purpose CDN
• High-availability Cache Cluster
• EDA (Electric Design Automation)
• Mission Critical Web Applications
Barebone 2U Rackmount SuperServer With Four Nodes, Each Node Supports: Dual Socket E (LGA-4677), Supporting Intel Xeon Scalable Processors 5th/4th Generation Supports Intel Xeon CPU Max Series with high bandwidth memory (HBM), Intel C741 Chipset, Up to 4TB in 16 DIMM slots, RDIMM, On-Board : SAS3 (12Gbps) via Broadcom 3808 (IT mode), 4x 2.5in Hot-swap NVMe/SATA/SAS Drive Bays (4x 2.5in NVMe Dedicated), Two M.2 NVMe OR 2 M.2 SATA3, Network Connectivity : Via IO Module, 1 RJ45 Dedicated BMC LAN Port, 2200W Power Supply - (SYS-211GT-HNC8F + X13SET-GC)
1. Single-Socket, 5th/4th Gen Intel® Xeon® Scalable processors up to 350W TDP
2. Intel® C741
3. 16 DIMM Slots supporting up to 4TB of memory; ECC RDIMMs up to DDR5-5600
4. Optional AIOM module or internal PCIe 5.0 x16
5. Integrated GrandTwin I/O Module with BMC, 2x USB, VGA and 2x 10GbE or 2x 25GbE
6. Two optional storage modules. Each module supports 2x NVMe or SAS/SATA drive bays
7. 2200W Redundant Power Supplies Titanium Level (96%+); Shared Power Design
8. Built-in SAS3 Support via Broadcom 3808; IT Mode
Extra Specifications for Supermicro SYS-211GT-HNC8F GrandTwin 2U Barebone Four Hot-pluggable Nodes Dual Intel Xeon Scalable Processors 5th/4th Generation and Intel Xeon CPU Max Series
| Product SKUs | ||
| Product SKUs | SYS-211GT-HNC8F | |
| Motherboard | ||
| Motherboard | Super X13SET-GC | |
| Processor (per Node) | ||
| CPU | 4th Gen Intel® Xeon® Scalable processors | |
| Single Socket E (LGA 4677) | ||
| Intel Xeon CPU Max Series with high bandwidth memory (HBM) | ||
| Note | Supports up to 350W TDP CPUs (Air Cooled) | |
| CPUs with high TDP (Air Cooled) only supported under specific conditions. Contact Technical Support for details | ||
| System Memory (per Node) | ||
| Memory | Memory Capacity: 16 DIMM slots | |
| Up to 4TB: 16x 256 GB DRAM | ||
| Memory Type: 4800MHz ECC DDR5 RDIMM | ||
| On-Board Devices (per Node) | ||
| SAS | SAS3 (12Gbps) via Broadcom® 3808 (IT mode) | |
| Chipset | Intel® C741 | |
| Network Connectivity | Via IO Module | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Input / Output (per Node) | ||
| LAN | 1 RJ45 Dedicated BMC LAN port | |
| USB | 2 USB 3.0 port(s) (2 USB) | |
| Video | 1 VGA port(s) | |
| System BIOS | ||
| BIOS Type | AMI 32MB Flash ROM | |
| Management | ||
| Software | SuperCloud Composer | |
| Supermicro Intelligent Mgmt (BMC Resources) | ||
| Supermicro IPMI Utilities | ||
| Supermicro Diagnostics Offline (SDO) | ||
| Supermicro Thin-Agent Service (TAS) | ||
| Supermicro Power Manager (SPM) | ||
| Supermicro Update Manager (SUM) | ||
| Supermicro Server Manager (SSM) | ||
| Supermicro Server Mgmt (Redfish® API) | ||
| SuperDoctor® 5 (SD5) | ||
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory. | |
| 8+4 Phase-switching voltage regulator | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Chassis | ||
| Form Factor | 2U Rackmount | |
| Model | CSE-GT214BF-R2K21BP2 | |
| Dimensions and Weight | ||
| Height | 3.46" (88mm) | |
| Width | 17.67" (449mm) | |
| Depth | 28" (711.2mm) | |
| Package | 9.76" (H) x 24.65" (W) x 45.28" (D) | |
| Weight | Net Weight: 68 lbs (30.8 kg) | |
| Gross Weight: 88 lbs (39.9 kg) | ||
| Available Color | Gray | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| UID button | ||
| LEDs | Network activity LEDs | |
| Power status LED | ||
| HDD activity LED | ||
| Universal Information (UID) LED | ||
| Expansion Slots (per Node) | ||
| PCI-Express (PCIe) | 1 PCIe 5.0 x16 slot(s) | |
| Drive Bays / Storage (per Node) | ||
| Hot-swap | 4x 2.5" hot-swap NVMe/SATA/SAS drive bays (4x 2.5" NVMe dedicated) | |
| M.2 | 2 M.2 NVMe OR 2 M.2 SATA3 | |
| System Cooling | ||
| Fans | 2x 16.5K RPM Heavy Duty 8cm Fan(s) | |
| 2x 16K RPM Heavy Duty 8cm Fan(s) | ||
| Power Supply | ||
| Dimension (W x H x L) | 106 x 84 x 245 mm | |
| AC Input | 100-127Vdc (1200W for the Rest of the World) | |
| 200-220Vdc (1800W for the Rest of the World) | ||
| 200-220Vdc (2090W for North America - UL & cUL) | ||
| 220-230Vdc (1980W for the Rest of the World) | ||
| 220-240Vdc (2200W for North America - UL & cUL) | ||
| 230-240Vdc (2090W for the Rest of the World) | ||
| Certification | Titanium Level | |
| Operating Environment | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) | ||
| Operating Relative Humidity: 8% to 80% (non-condensing) | ||
| Non-operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| AIOM Dummy Tray | MCP-120-21406-0N | $ 20.50 | 1 | GT214 FIO AIOM dummy bracket | ||
| AIOM Enablement Kit | MCP-450-21411-ASM | 0 - 1 | GT214BF PCIe Gen5 FIO KIT of Front AIOM | |||
| GrandTwin I/O Module 2x10GbE | AOC-GTG-B2T-O | 1 | Grand Twin I/O card 2-Port 10GbE RJ45, Broadcom BCM57416, w/ 1x BMC dedicated LAN/RJ45 PORT, 2x USB 3.0 & 1x VGA port.,RoHS (one GrandTwin module is required per node) | |||
| GrandTwin I/O Module 2x10GbE | AOC-GTG-I2T-O | 1 | Grand Twin I/O card 2-Port 10GbE RJ45, Intel Carlsville X710-AT2, w/ 1x BMC dedicated LAN/RJ45 PORT, 2x USB 3.0 & 1x VGA port.,RoHS (one GrandTwin module is required per node) | |||
| GrandTwin I/O Module 2x25GbE | AOC-G25G-M2S-O | 1 | Grand Twin I/O card 2-Port 25GbE SFP28, Mellanox CX-4 Lx EN, w/ 1x BMC dedicated LAN/RJ45 PORT, 2x USB 3.0 & 1x VGA port.,RoHS (one GrandTwin module is required per node) | |||
| HDD Dummy Tray | MCP-120-21401-0N | 0 - 2 | GT214 FIO HDD dummy bracket(1slot) | |||
| NVMe Enablement Kit | MCP-450-21408-ASM | 0 - 2 | GT214BF PCIe Gen5 FIO KIT of U.2 NVMe x2 | |||
| SAS/SATA Enablement Kit | MCP-450-21404-ASM | 0 - 1 | GT214 4 Port SATA/SAS U.2 Enablement kit, RoHS | |||
| SAS/SATA Enablement Kit | MCP-450-21405-ASM | 0 - 1 | GT214 2 Port SATA/SAS U.2 Enablement kit, RoHS | |||
| SPI Capable TPM 2.0 | AOM-TPM-9670V-S-P | 0 | SPI Capable TPM 2.0 Provisioned for Server, Vertical Form Factor | |||
| VROC Premium | AOC-VROCPREMOD • | 0 | Intel VROC Premium, RAID 0, 1, 5, 10 | |||
| VROC Standard | AOC-VROCSTNMOD • | 0 | Intel VROC Standard, RAID 0, 1, 10 |
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
