- Supermicro SYS-211GT-HNTF GrandTwin 2U Barebone Four Hot-pluggable Nodes Single Intel Xeon Scalable Processors 5th/4th Generation and Intel Xeon CPU Max Series

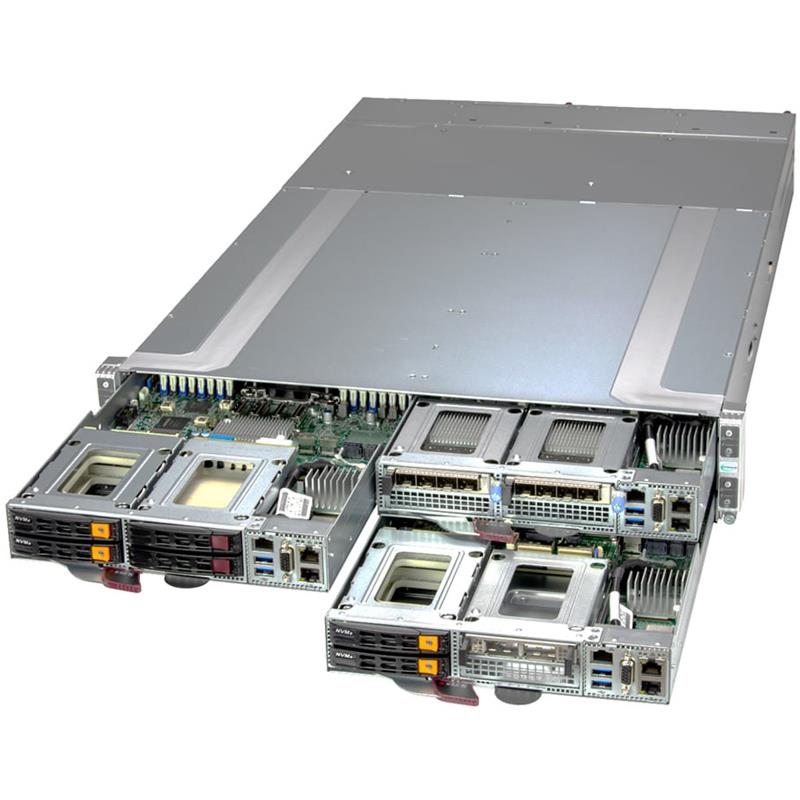

Supermicro SYS-211GT-HNTF GrandTwin 2U Barebone Four Hot-pluggable Nodes Single Intel Xeon Scalable Processors 5th/4th Generation and Intel Xeon CPU Max Series
• HPC
• Cloud Gaming
• Telco Edge
• MEC (Multi-Access Edge Computing)
• Multi-Purpose CDN
• High-availability Cache Cluster
• EDA (Electric Design Automation)
• Mission Critical Web Applications
Barebone 2U Rackmount SuperServer With Four Nodes, Each Node Supports: Single Socket E (LGA-4677), Supporting Intel Xeon Scalable Processors 5th/4th Generation Supports Intel Xeon CPU Max Series with high bandwidth memory (HBM), Intel C741 Chipset, Up to 4TB in 16 DIMM slots, RDIMM, On-Board : Intel C741 Controller for 6 SATA3 (6 Gbps) Ports, 4x 2.5in Hot-swap NVMe/SATA Drive Bays (4x 2.5in NVMe Dedicated), 2 M.2 NVMe OR 2 M.2 SATA3, Network Connectivity : Via IO Module, 1 RJ45 Dedicated BMC LAN Port, 2200W Power Supply - (SYS-211GT-HNTF + X13SET-G)
1. Single-Socket, 5th/4th Gen Intel® Xeon® Scalable processors up to 350W TDP
2. Intel® C741
3. 16 DIMM Slots supporting up to 4TB of memory; ECC RDIMMs up to DDR5-5600
4. Optional AIOM module or internal PCIe 5.0 x16
5. Integrated GrandTwin I/O Module with BMC, 2x USB, VGA and 2x 10GbE or 2x 25GbE
6. Two optional storage modules. Each module supports 2x NVMe or SATA drive bays
7. 2200W Redundant Power Supplies Titanium Level (96%+); Shared Power Design
Extra Specifications for Supermicro SYS-211GT-HNTF GrandTwin 2U Barebone Four Hot-pluggable Nodes Single Intel Xeon Scalable Processors 5th/4th Generation and Intel Xeon CPU Max Series
| Product SKUs | ||
| Product SKUs | SYS-211GT-HNTF | |
| Motherboard | ||
| Motherboard | Super X13SET-G | |
| Processor (per Node) | ||
| CPU | 4th Gen Intel® Xeon® Scalable processors | |
| Single Socket E (LGA 4677) | ||
| Intel Xeon CPU Max Series with high bandwidth memory (HBM) | ||
| Note | Supports up to 350W TDP CPUs (Air Cooled) | |
| CPUs with high TDP (Air Cooled) only supported under specific conditions. Contact Technical Support for details | ||
| System Memory (per Node) | ||
| Memory | Memory Capacity: 16 DIMM slots | |
| Up to 4TB: 16x 256 GB DRAM | ||
| Memory Type: 4800MHz ECC DDR5 RDIMM | ||
| On-Board Devices (per Node) | ||
| Chipset | Intel® C741 | |
| Network Connectivity | Via IO Module | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Input / Output (per Node) | ||
| LAN | 1 RJ45 Dedicated BMC LAN port | |
| USB | 2 USB 3.0 port(s) (2 USB) | |
| Video | 1 VGA port(s) | |
| System BIOS | ||
| BIOS Type | AMI 32MB Flash ROM | |
| Management | ||
| Software | SuperCloud Composer | |
| Supermicro Intelligent Mgmt (BMC Resources) | ||
| Supermicro IPMI Utilities | ||
| Supermicro Diagnostics Offline (SDO) | ||
| Supermicro Thin-Agent Service (TAS) | ||
| Supermicro Power Manager (SPM) | ||
| Supermicro Update Manager (SUM) | ||
| Supermicro Server Manager (SSM) | ||
| Supermicro Server Mgmt (Redfish® API) | ||
| SuperDoctor® 5 (SD5) | ||
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory. | |
| 8+4 Phase-switching voltage regulator | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Chassis | ||
| Form Factor | 2U Rackmount | |
| Model | CSE-GT214BF-R2K21BP2 | |
| Dimensions and Weight | ||
| Height | 3.46" (88mm) | |
| Width | 17.67" (449mm) | |
| Depth | 28" (711.2mm) | |
| Package | 9.76" (H) x 24.65" (W) x 45.28" (D) | |
| Weight | Net Weight: 68 lbs (30.8 kg) | |
| Gross Weight: 88 lbs (39.9 kg) | ||
| Available Color | Gray | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| UID button | ||
| LEDs | Network activity LEDs | |
| Power status LED | ||
| HDD activity LED | ||
| Universal Information (UID) LED | ||
| Expansion Slots (per Node) | ||
| PCI-Express (PCIe) | 1 PCIe 5.0 x16 slot(s) | |
| Drive Bays / Storage (per Node) | ||
| Hot-swap | 4x 2.5" hot-swap NVMe/SATA drive bays (4x 2.5" NVMe dedicated) | |
| M.2 | 2 M.2 NVMe OR 2 M.2 SATA3 | |
| System Cooling | ||
| Fans | 2x 16.5K RPM Heavy Duty 8cm Fan(s) | |
| 2x 16K RPM Heavy Duty 8cm Fan(s) | ||
| Power Supply | ||
| Dimension (W x H x L) | 106 x 84 x 245 mm | |
| AC Input | 100-127Vdc (1200W for the Rest of the World) | |
| 200-220Vdc (1800W for the Rest of the World) | ||
| 200-220Vdc (2090W for North America - UL & cUL) | ||
| 220-230Vdc (1980W for the Rest of the World) | ||
| 220-240Vdc (2200W for North America - UL & cUL) | ||
| 230-240Vdc (2090W for the Rest of the World) | ||
| Certification | Titanium Level | |
| Operating Environment | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) | ||
| Operating Relative Humidity: 8% to 80% (non-condensing) | ||
| Non-operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| AIOM Dummy Tray | MCP-120-21406-0N | 1 | GT214 FIO AIOM dummy bracket | |||
| AIOM Enablement Kit | MCP-450-21411-ASM | 0 - 1 | GT214BF PCIe Gen5 FIO KIT of Front AIOM | |||
| GrandTwin I/O Module 2x10GbE | AOC-GTG-B2T-O | 1 | Grand Twin I/O card 2-Port 10GbE RJ45, Broadcom BCM57416, w/ 1x BMC dedicated LAN/RJ45 PORT, 2x USB 3.0 & 1x VGA port.,RoHS (one GrandTwin module is required per node) | |||
| GrandTwin I/O Module 2x10GbE | AOC-GTG-I2T-O | 1 | Grand Twin I/O card 2-Port 10GbE RJ45, Intel Carlsville X710-AT2, w/ 1x BMC dedicated LAN/RJ45 PORT, 2x USB 3.0 & 1x VGA port.,RoHS (one GrandTwin module is required per node) | |||
| GrandTwin I/O Module 2x25GbE | AOC-G25G-M2S-O | 1 | Grand Twin I/O card 2-Port 25GbE SFP28, Mellanox CX-4 Lx EN, w/ 1x BMC dedicated LAN/RJ45 PORT, 2x USB 3.0 & 1x VGA port.,RoHS (one GrandTwin module is required per node) | |||
| HDD Dummy Tray | MCP-120-21401-0N | 0 - 2 | GT214 FIO HDD dummy bracket(1slot) | |||
| NVMe Enablement Kit | MCP-450-21408-ASM | 0 - 2 | GT214BF PCIe Gen5 FIO KIT of U.2 NVMe x2 | |||
| SAS/SATA Enablement Kit | MCP-450-21404-ASM | 0 - 1 | GT214 4 Port SATA/SAS U.2 Enablement kit, RoHS | |||
| SAS/SATA Enablement Kit | MCP-450-21405-ASM | 0 - 1 | GT214 2 Port SATA/SAS U.2 Enablement kit, RoHS | |||
| SPI Capable TPM 2.0 | AOM-TPM-9670V-S-P | 0 | SPI Capable TPM 2.0 Provisioned for Server, Vertical Form Factor | |||
| VROC Premium | AOC-VROCPREMOD | $ 344.50 | 0 | Intel VROC Premium, RAID 0, 1, 5, 10 | ||
| VROC Standard | AOC-VROCSTNMOD • | 0 | Intel VROC Standard, RAID 0, 1, 10 |
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
