Supermicro SYS-5038MD-H8TRF MicroCloud Barebone Single CPU, 8-Node
• Cloud Computing
• Web Cache, CDN
• Web Hosting, VM
• Social Networking

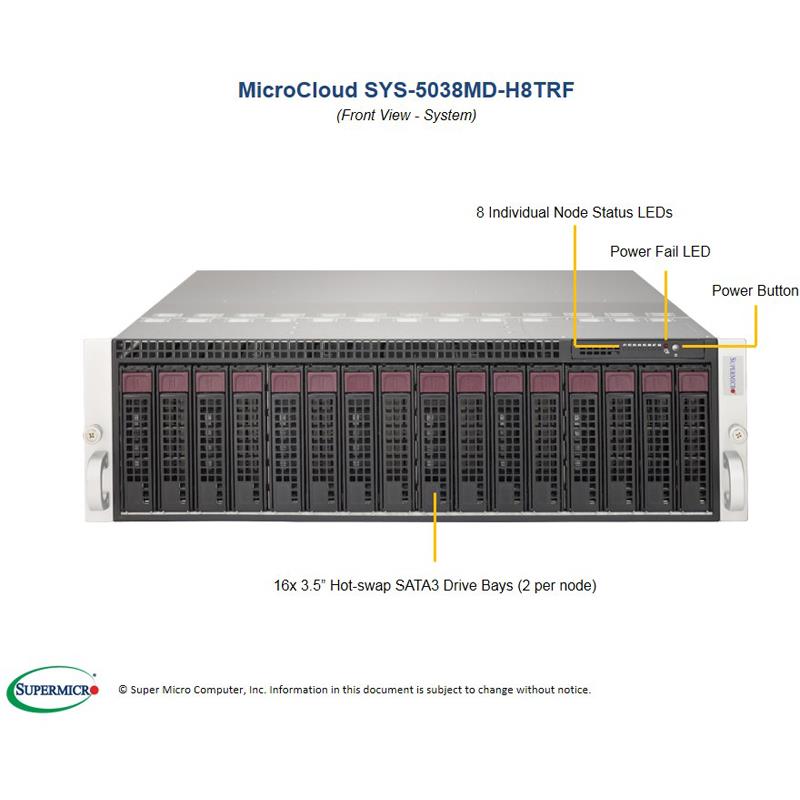

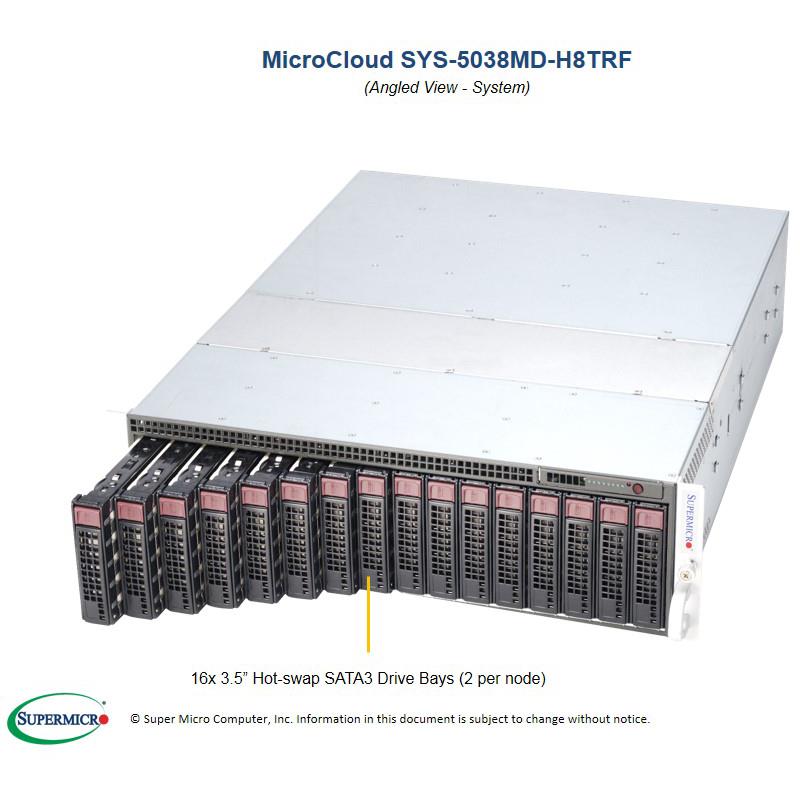

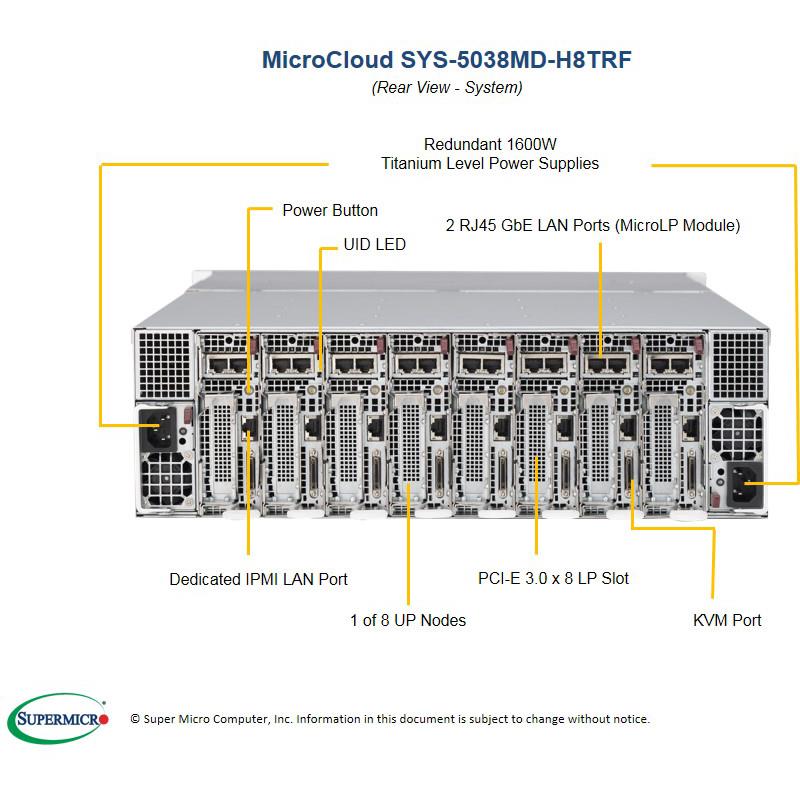

Barebone 3U MicroCloud with 8x Modular UP Nodes - Per Node : Single Socket FCBGA 1667 with Intel Xeon D-1541 processor - Supports up to 128GB DDR4 ECC RDIMM in 4x 288-pin sockets - On-Board (per node) : SATA3 (6Gbps) via SoC, 2x Gigabit Ethernet (Micro-LP NIC), IPMI 2.0, VGA - Includes (per Node) : 2x 3.5in Hot-swap SATA3 (6Gbps) HDDs (or 2x 2.5in SATA3 with optional kits); up to 16 HDDs total System includes : 1600W Redundant power supplies Titanium Level Certified, MBD-X10SDD-F Motherboard, CSE-938BH-R1K68B 3U Chassis (Black)
This product is no longer available.
1. Single socket FCBGA 1667, 8-Core, 45W, 16 Threads; support Intel® Xeon® processor D-1541
2. 2x 3.5" SATA3 by default; 2x 2.5" SATA3 HDDs w/ Optional kits
3. Up to 128GB DDR4 ECC RDIMM/64GB DDR4 ECC UDIMM, 4 sockets
4. 2x GbE LAN ports via Intel i350, 1x dedicated LAN for IPMI Remote Management

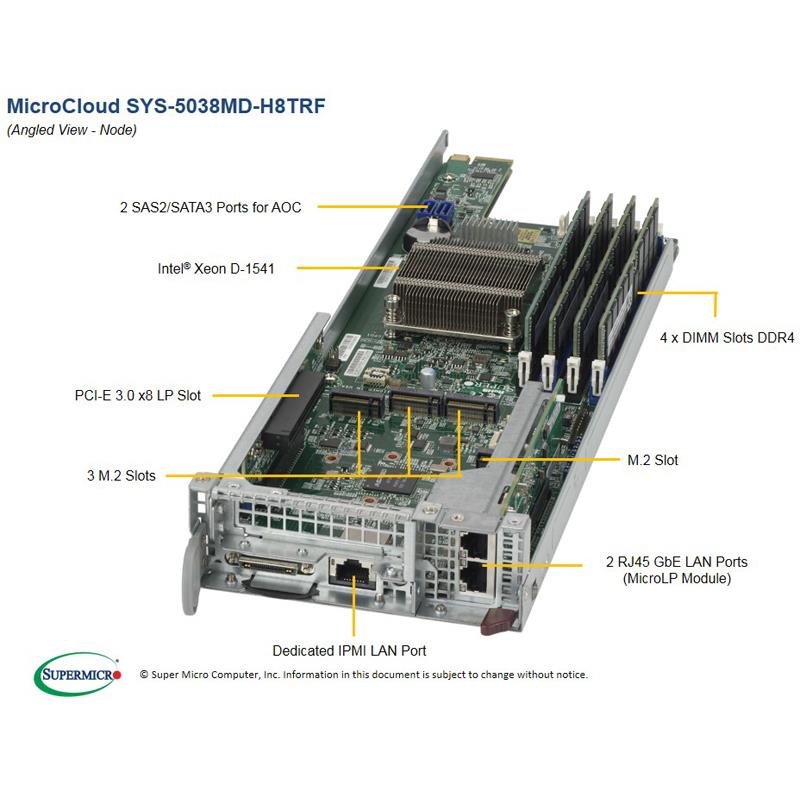

5. 1x PCI-E 3.0 x8 LP, 1x Micro-LP, 4x M.2
6. 2x USB 2.0, 1x VGA, 1x COM port (with KVM dongle)
7. 4x 8cm heavy duty hot-swap fans with optimal cooling zone (per system)
8. 1600W Redundant power supplies Titanium Level Certified (per system)
Extra Specifications for Supermicro SYS-5038MD-H8TRF MicroCloud Barebone Single CPU, 8-Node
| Processor/Cache | ||
| CPU | Intel® Xeon® processor D-1541 | |
| Socket FCBGA 1667 | ||
| CPU TDP support 45W, 12MB, 8 Cores, 16 Threads, 2.1-2.7GHz | ||
| System Memory (per node) | ||
| Memory Capacity | 4x 288-pin DDR4 DIMM slots | |
| Supports up to 128 GB DDR4 ECC RDIMM | ||
| Supports up to 64 GB DDR4 ECC UDIMM | ||
| Memory Type | 2133/1866/1600MHz ECC DDR4 RDIMM and ECC/Non-ECC UDIMM | |
| DIMM Sizes | 32GB, 16GB, 8GB, 4GB | |
| Memory Voltage | 1.2 V | |
| Error Detection | Corrects single-bit errors | |
| Detects double-bit errors (using ECC memory) | ||
| Expansion Slots (per node) | ||
| PCI-Express | 1x PCI-E 3.0 x8 Low-profile slot | |
| 1x Micro-LP for Dual GbE (pre-installed); 10GbE or IB AOC optional | ||
| 4x M.2 (2x PCI-E 3.0 x4 + 1x PCI-E 2.0 x4 + 1x PCI-E 2.0 x2) | ||
| Network Devices (per node) | ||
| Micro-LP NIC | Intel® i350 GbE controller | |
| Dual RJ-45 connectors | ||
| Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output | ||
| Intel® I/O Acceleration Technology (I/O AT) | ||
| MicroLP Adapter Matrix (Networking options) | ||
| On-Board Devices (per node) | ||
| Chipset | System on Chip (SoC) | |
| SATA | SATA3 (6Gbps) via SoC | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM over LAN support | ||
| ASPEED AST2400 BMC | ||
| Headers | 1x Type A USB 3.0 | |
| Graphics | ASPEED AST2400 Graphics (BMC with Graphic controller) | |
| Input / Output (per node) | ||
| SATA | 2x SATA3 (6Gbps) ports | |
| LAN | 2x RJ45 Gigabit Ethernet LAN ports | |
| 1x RJ45 Dedicated IPMI LAN port | ||
| KVM | 1x VGA, 1x COM and 2x USB 2.0 (with KVM dongle) | |
| System BIOS | ||
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS | |
| BIOS Features | USB Keyboard support | |
| DMI 2.3 | ||
| SMBIOS 2.3 | ||
| ACPI 1.0 / 2.0 | ||
| Rear Window (each node) | ||
| Switch | Power / UID | |
| Chassis | ||
| Form Factor | 3U | |
| Model | CSE-938BH-R1K68B | |
| Dimensions and Weight | ||
| Height | 5.21" (132 mm) | |
| Width | 17.26" (438 mm) | |
| Depth | 23.2" (589 mm) | |
| Package | 11.65" (H) x 26.26" (W) x 34" (D) | |
| Weight | Net Weight: 62.2 lbs (28.21 kg) | |
| Gross Weight: 88 lbs (39.92 kg) | ||
| Color | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| LEDs | Power LED | |
| Node status LED | ||
| Drive Bays (per node) | ||
| Internal | Enterprise SATA HDD only recommended | |
| 2x 3.5" Hot-swap SATA3 (6Gbps) HDDs per node (or 2x 2.5" SATA3 with optional kits); up to 16 HDDs total | ||
| System Cooling | ||
| Fans | 4x 8cm Heavy duty fans with optimal cooling zone | |
| Power Supply (76mm Width) | ||
| Power Supply (76mm Width) | 1600W 1U Redundant Power Supplies with PMBus | |
| Total Output Power | 800W: 100 – 140Vac | |
| 1600W: 180 – 240Vac | ||
| Dimension (W x H x L) | 76 x 40.4 x 336 mm | |
| Input | 100-140Vac / 10-7A / 50-60Hz | |
| 180-240Vac / 11-8A / 50-60Hz | ||
| +12V | Max: 67A / Min: 0A (100-140Vac) | |
| Max: 133A / Min: 0A (180-240Vac) | ||
| +5Vsb | Max: 1A / Min: 0A | |
| Output Type | 27 Pairs Gold Finger Connector | |
| Certification | Titanium Level | |
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages. | |
| 3-Phase-switching voltage regulator with auto-sense from 0.5V-2.3V | ||
| FAN | Cooling zone | |
| Temperature | Monitoring for CPU and chassis environment | |
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) | |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Product SKUs | ||
| Product SKUs | SYS-5038MD-H8TRF (Black) | |
| Motherboard | ||
| Motherboard | Super X10SDD-F | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X10SDD-F | 8 | Super X10SDD-F Motherboard | |
| Motherboard / Chassis | CSE-938BH-R1K68B | 1 | 3U Chassis | |
| Add-on Card / Module | AOC-CGP-I2-P | 8 | AOC-CGP-I2-O-P | |
| Air Shroud | MCP-310-93804-0B | 8 | 938 mylar airshroud for X10SLD-F (X9 compatible),RoHS/REACH,PBF | |
| Backplane | BPN-SAS-938H | 1 | 16-port 3U (CSE-938) MicroCloud 6Gbps backplane, support up to 16x 3.5-inch SAS/SATA HDD | |
| Cable 1 | CBL-0218L | 1 | USB/KVM/SUVI,36 PIN TO 9 PIN/15 PIN/2 USB CH,11.5CM,30/28AWG | |
| Cable 2 | CBL-PWCD-0578 | 2 | PWCD,US,IEC60320 C14 TO C13,3FT,14AWG | |
| Label | LBL-0108 | 1 | CAUTION LABEL FOR REDUNDANT PWR SYSTEMS | |
| Riser Card | RSC-RR1U-E8 | 8 | RSC-RR1U-E8 | |
| Rail set | MCP-290-00057-0N | 1 set | Rail set, quick/quick, default for 4U 17.2" W | |
| Power Supply | PWS-1K68A-1R | 2 | 1U 1600W Redundant Titanium Power Supply 76mm width 27Pair,PBF |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Cable | CBL-SAST-0616CBL-0118L-03CBL-0476L | 0 | For AOC-S3008L-L8i/AOC-SAS3-9361-4IFor AOC-S2308L-L8iFor AOC-SAS2LP-H8iR | |||
| Storage Controller Card(s) | AOC-S3008L-L8iAOC-SAS3-9361-4IAOC-S2308L-L8iAOC-SAS2LP-H8iR | 0 | Std LP, 8 ports, 12Gb/s Gen3, RAID 0/1/10Std LP, 4 ports, 12Gb/s Gen3, RAID 0/1/5/6/10/50/60Std LP, 8 ports, 6Gb/s Gen3, RAID 0/1/10Std LP, 8 ports, 6Gb/s Gen3, RAID 0/1/5/6/10/50/60NOTE: SYS-5038MD-H8TRF is designed to support max 6GB/s | |||
| Storage Controller Card(s) | - | 0 | Heatsink SNK-P0047PSM is required for AOC HBA card | |||
| Network Card(s) | AOC-CGP-i2AOC-CTGS-i2TAOC-CTG-i1SAOC-CTG-i2SAOC-C25G-m1SAOC-CIBF-m1AOC-CIBQ-m1AOC-S40G-i2QAOC-SGP-i2AOC-SGP-i4AOC-STG-i2AOC-STG-i2TAOC-STGN-i1SAOC-STGN-i2S | 0 | MicroLP, 2x 1GbE, PCI-E 2.0 x4, Intel® i350MicroLP, 2x 10GbE Base-T, PCI-E 3.0 x4, Intel® X550MicroLP, 1 x 10GbE SFP+, PCI-E 2.0 x8, Intel® 82599ENMicroLP, 2 x 10GbE SFP+, PCI-E 2.0 x8, Intel® 82599ENMicroLP, 1x 25GbE SFP28 port, Mellanox® ConnectX-4 Lx ENMicroLP, 1x QSFP PCI-E 3.0 x8, Mellanox® ConnectX-3 FDRMicroLP, 1x QSFP PCI-E 3.0 x8, Mellanox® ConnectX-3 QDRStandard LP 2-port 40GbE controller, Intel Fortville XL710Standard LP, 2x GbE RJ45, PCI-E x4, Intel i350AM2Standard LP, 4x GbE RJ45, PCI-E x4, Intel i350Standard LP, 2x 10GbE CX4, PCI-E x8, Intel 82598EBStandard LP, 2x 10GbE RJ45, PCI-E x8, Intel X540Standard LP, 1x 10GbE SFP+, PCI-E x8, Intel 82599ENStandard LP, 2x 10GbE SFP+, PCI-E x8, Intel 82599ES | |||
| Drive Tray(s) | MCP-220-93801-0B | $ 31.00 | 0 | Black gen 6 hot-swap 3.5-to-2.5 HDD tray | ||
| Drive Tray(s) | MCP-220-00158-0B | $ 33.50 | 0 | Black gen 6.5 hot-swap 3.5-to-2.5 Tool-less drive tray | ||
| M.2 Secure Screw | FST-SCRW-0083L | 0 | One M.2 secure screw per M.2 SSD | |||
| Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
| Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service | |||
| Software | SFT-OOB-LIC • | 1 | OOB Management Package (per node license) | |||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
