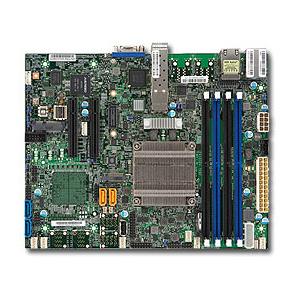

| System Memory |
| DIMM Sizes | 4GB, 8GB, 16GB, 32GB |
| Error Detection | Corrects single-bit errors |
| Detects double-bit errors (using ECC memory) |
| Memory Capacity | 128GB Registered ECC RDIMM, DDR4-2133MHz64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2133MHz, in 4 DIMM slots |
| Memory Voltage | 1.2V |
| Memory Type | 1866/1600MHz ECC DDR4 ECC RDIMM and ECC/Non-ECC UDIMM |
| On-Board Devices |
| Chipset | System on Chip |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Network Controllers | Dual LAN with 10G SFP+ from D-1500 SoC Dual LAN with 1GbE with Intel® I210 |
| Graphics | Aspeed AST2400 BMC |
| SATA | SoC controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10 |
| RSTe |
| Input / Output |
| LAN | 2 10G SFP+ LAN ports |
| 1 RJ45 Dedicated IPMI LAN port |
| 2 1GbE LAN ports |
| SATA | 4 SATA3 (6Gbps) port |
| USB | 2 USB 3.0 ports (2 rear) |
| 5 USB 2.0 ports (4 headers, 1 Type A) |
| Video Output | 1 VGA port |
| Serial Port / Header | 1 COM Port (1 header) |
| TPM | TPM Header |
| System BIOS |
| BIOS Features | UEFI 2.4 |
| ACPI 5.0 |
| USB Keyboard support |
| RTC (Real Time Clock) Wakeup |
| PCI 3.0 |
| SMBIOS 2.8 |
| BIOS Type | 128Mb SPI Flash with AMI BIOS |
| Management |
| Power Configurations | +12V DC Power Input |
| ACPI Power Management |
| Control of power-on for recovery from AC power loss |
| ATX Power connector |
| CPU thermal trip support for processor protection |
| M.2 NGFF connector, Node Manager Support, SDDC, System level control, UID, WOL |
| Software | Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SUM, SuperDoctor® 5, Watchdog |
| Product SKUs |
| Product SKUs |
| Physical Stats |
| Form Factor | Flex ATX |
| Dimensions | 9.0" x 7.25" (22.86cm x 18.42cm) |
| Processor/Cache |
| CPU | Intel® Pentium® Processor D1508. |
| Socket FCBGA1667 supported, CPU TDP support 25W |
| Cores / Cache | 2 cores, 4 threads / 3MB cache |
| Expansion Slots |
| PCI-E | 2 PCI-E 3.0 x8 |
| M.2 PCI-E 3.0x4, M Key 2242/2280/22110, Mini-PCI-E with mSATA support |
| M.2 | Key: M-Key |
| M.2 Interface: 1 SATA/PCI-E 3.0 x4 |
| Form Factor: 2242/2280/22110 |
| PC Health Monitoring |
| Voltage | +1.8V, +12V, +3.3V, +5V, 1.2V (VDIMM), Chassis intrusion header, System level control, VBAT |
| FAN | 6x 4-pin fan headers (up to 6 fans), 4 fans with tachometer monitoring, Dual Cooling Zone, Low noise fan speed control, Pulse Width Modulated (PWM) fan connectors, Status monitoring for on/off control, System level control |
| Temperature | Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI |
| LED | CPU / System Overheat LED |
| Other Features | 12V DC or ATX Power Source, Chassis intrusion detection, Chassis intrusion header, RoHS |
| Operating Environment |
| Operating Temperature Range | 0°C ~ 60°C (32°F ~ 140°F) |
| Non-Operating Temperature Range | -40°C - 85°C (-40°F - 185°F) |
| Operating Relative Humidity Range | 10% ~ 85% (non-condensing) |
| Non-Operating Relative Humidity Range | 10% ~ 95% (non-condensing) |
