- Supermicro X10SDV-2C-TP8F Motherboard FlexATX SoC with Intel Xeon processor D-1508 2.2GHz-2.6GHz 2-Core, FCBGA 1667

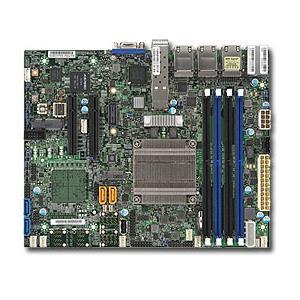

Supermicro X10SDV-2C-TP8F Motherboard FlexATX SoC with Intel Xeon processor D-1508 2.2GHz-2.6GHz 2-Core, FCBGA 1667
Offers 6x SATA3 ports, 1x PCIe 3.0 x16 slot
Includes SoC controller for 4 SATA3 ports, RAID 0,1,5,10
Embedded Intel Xeon D-1508 processor 2 cores/4 threads
Handles up to 128GB ECC RDIMM DDR4-1866 in 4 DIMM slots
Motherboard FlexATX SoC with Intel Xeon processor D-1508 2.2GHz-2.6GHz 2-Core, FCBGA 1667 - Supports up to 128GB DDR4 ECC RDIMM up to 1866MHz (4x 288-pin DIMM slots) - On-Board : SoC controller for 4 SATA3 6Gbps ports (RAID 0,1,5,10 RSTe), Dual 10G SFP+ from D-1500 SoC, Quad 1GbE with Intel I350-AM4, Dual 1GbE with Intel I210, IPMI 2.0, VGA, TPM 2.0 header, 2x SuperDOM (Disk on Module) power connectors - MBD-X10SDV-2C-TP8F-O Motherboard (Retail Box)
1. Intel® Pentium® processor D1508, Single socket FCBGA 1667; 2-Core, 4 Threads, 25W
2. Up to 128GB ECC RDIMM DDR4 1866MHz or 64GB ECC/non-ECC UDIMM in 4 sockets
3. 2 PCI-E 3.0 x8, Mini PCI-E (mSATA support), M.2 PCI-E 3.0 x4 (SATA support), M Key 2242/2280/22110
4. 2 10G SFP+ and 6 GbE LAN
5. 4 SATA3 (6Gbps) ports via SoC
6. 2 USB 3.0 ports (rear), 5 USB 2.0 ports (4 via headers, 1 Type A)
7. 2 SuperDOM, 1 COM, TPM 2.0 header, GPIO and SMbus headers
8. 12V DC Input and ATX Power Source
Extra Specifications for Supermicro X10SDV-2C-TP8F Motherboard FlexATX SoC with Intel Xeon processor D-1508 2.2GHz-2.6GHz 2-Core, FCBGA 1667
| System Memory | ||
| DIMM Sizes | 4GB, 8GB, 16GB, 32GB | |
| Error Detection | Corrects single-bit errors | |
| Detects double-bit errors (using ECC memory) | ||
| Memory Capacity | Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2133MHz, in 4 DIMM slots | |
| Up to 128GB Registered ECC RDIMM, DDR4-2133MHz | ||
| Memory Voltage | 1.2V | |
| Memory Type | 1866/1600MHz ECC DDR4 ECC RDIMM and ECC/Non-ECC UDIMM | |
| On-Board Devices | ||
| Chipset | System on Chip | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Network Controllers | Dual LAN with 10G SFP+ from D-1500 SoC Quad LAN with 1GbE with Inte® I350-AM4 Dual LAN with 1GbE with Intel® I210 Single LAN with 1 Realtek RTL8211E PHY (dedicated IPMI) | |
| Graphics | Aspeed AST2400 BMC | |
| SATA | SoC controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10 | |
| RSTe | ||
| Input / Output | ||
| LAN | 2 10G SFP+ LAN ports | |
| 1 RJ45 Dedicated IPMI LAN port | ||
| 6 1GbE LAN ports | ||
| SATA | 4 SATA3 (6Gbps) port | |
| USB | 2 USB 3.0 ports (2 rear) | |
| 5 USB 2.0 ports (4 headers, 1 Type A) | ||
| Video Output | 1 VGA port | |
| Serial Port / Header | 1 COM Port (1 header) | |
| TPM | TPM Header | |
| System BIOS | ||
| BIOS Features | UEFI 2.4 | |
| ACPI 5.0 | ||
| USB Keyboard support | ||
| RTC (Real Time Clock) Wakeup | ||
| PCI 3.0 | ||
| Hardware BIOS Virus protection | ||
| SMBIOS 2.8 | ||
| BIOS Type | 128Mb SPI Flash with AMI BIOS | |
| Management | ||
| Power Configurations | +12V DC Power Input | |
| ACPI Power Management | ||
| Control of power-on for recovery from AC power loss | ||
| ATX Power connector | ||
| CPU thermal trip support for processor protection | ||
| M.2 NGFF connector, Node Manager Support, SDDC, System level control, UID, WOL | ||
| Software | Intel® Node Manager, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, IPMI2.0, KVM with dedicated LAN, NMI, SUM, SuperDoctor® 5, Watchdog | |
| Product SKUs | ||
| Product SKUs | ||
| Physical Stats | ||
| Form Factor | Flex ATX | |
| Dimensions | 9.0" x 7.25" (22.86cm x 18.42cm) | |
| Processor/Cache | ||
| CPU | Intel® Pentium® Processor D1508. | |
| Single Socket FCBGA1667 supported, CPU TDP support 25W | ||
| Cores / Cache | 2 cores, 4 threads / 3MB cache | |
| Expansion Slots | ||
| PCI-E | 2 PCI-E 3.0 x8 | |
| Mini-PCI-E with mSATA support | ||
| M.2 | 1 M.2 M-Key SATA/PCI-E 3.0 x4, 2242/2280/22110 | |
| PC Health Monitoring | ||
| Voltage | +1.8V, +12V, +3.3V, +5V, 1.2V (VDIMM), 6 -fan status, Chassis intrusion header, HT, Memory, Memory Voltages, Supports system management utility, System level control, System temperature, VBAT | |
| FAN | 6x 4-pin fan headers (up to 6 fans), Dual Cooling Zone, Fan speed control, Low noise fan speed control, Overheat LED indication, Pulse Width Modulated (PWM) fan connectors, PWM fan speed control, Quad Cooling Zone, Status monitoring for on/off control, Status monitoring for speed control, System level control, Thermal control tachometer fan connectors | |
| Temperature | Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI | |
| LED | CPU / System Overheat LED, UID/Remote UID | |
| Other Features | 12V DC or ATX Power Source, 8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Dual Cooling Zones, M.2 NGFF connector, Node Manager Support, RoHS, SDDC, System level control, UID, WOL | |
| Operating Environment | ||
| Operating Temperature Range | 0°C ~ 60°C (32°F ~ 140°F) | |
| Non-Operating Temperature Range | -40°C - 85°C (-40°F - 185°F) | |
| Operating Relative Humidity Range | 10% ~ 85% (non-condensing) | |
| Non-Operating Relative Humidity Range | 10% ~ 95% (non-condensing) | |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| 1U I/O Shield | MCP-260-00099-0N | $ 21.00 | 1 | 1U I/O Shield for X10SDV-TP8F in SC813/SC514 chassis | ||
| 1U I/O Shield | MCP-260-00100-0B | $ 21.00 | 1 | 1U I/O Shield for X10SDV-TP8F in SC510/SC505/SC504 chassis |
