- Supermicro SYS-521E-WR UP 2U Barebone Single Intel Xeon Scalable Processors 4th Generation
Supermicro SYS-521E-WR UP 2U Barebone Single Intel Xeon Scalable Processors 4th Generation
• Data Center Optimized
• Network Appliance
• Database/Storage
• Entry GPU server
Barebone 2U Rackmount SuperServer, Intel Xeon Scalable Processors 4th Generation, Intel C741 Chipset, Up to 2TB in 8 DIMM slots, RDIMM, On-Board : SATA3 (6Gbps), RAID 0/1/5/10 Support, NVMe, 8x 3.5in NVMe/SATA/SAS Drive Bays (4x 3.5in NVMe Hybrid), M.2 M-key, 2280, 22110, 2x 2.5in Drive Bays, Network Connectivity : 1G LAN Port, 1 Dedicated IPMI LAN, 920W Power Supply - (SYS-521E-WR + X13SEW-F)
To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 1 CPU, 1 DIMM, 1 Storage Device HDD/HDS/M.2)

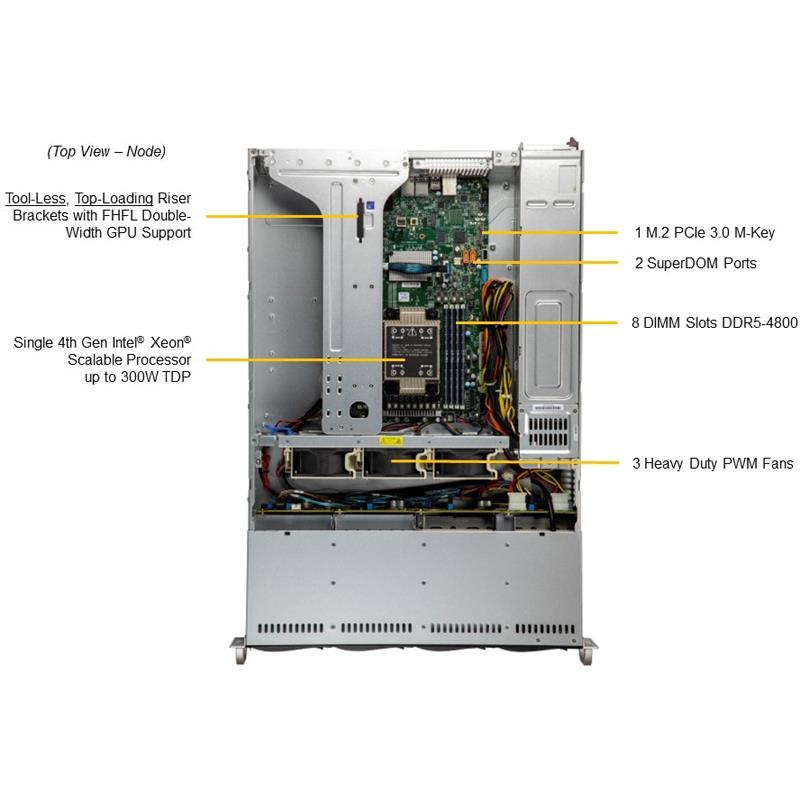

1. Single Socket E (LGA-4677) 4th Gen Intel® Xeon® Scalable processors. Up to 300W TDP
2. Intel® C741 Chipset
3. 8 DIMMs; Supports 3DS DDR5 RDIMM. Up to 4800 MHz
4. 2 PCIe 5.0 x16 FHFL; 2 PCIe 5.0 x8 LP; 1 PCIe 3.0 x2 NVMe M.2
5. Onboard 1G LAN ports (Intel® i210), 1 dedicated IPMI LAN
6. 8x front hot-swap 3.5" SATA3 drive bays (Optional 4 hybrid Gen5 NVMe), SAS3 with additional SAS controller card
7. Redundant Now Titanium 1000W Power Supplies
Extra Specifications for Supermicro SYS-521E-WR UP 2U Barebone Single Intel Xeon Scalable Processors 4th Generation
| Product SKUs | ||
| Product SKUs | SYS-521E-WR | |
| Motherboard | ||
| Motherboard | Super X13SEW-F | |
| Processor | ||
| CPU | 4th Gen Intel® Xeon® Scalable processors | |
| Single Socket E (LGA 4677) | ||
| Cores | Up to 52C/104T; Up to 97.5MB Cache | |
| Note | Supports up to 300W TDP CPUs (Air Cooled) | |
| System Memory | ||
| Memory | Memory Capacity: 8 DIMM slots | |
| Up to 2TB: 8x 256 GB DRAM | ||
| Memory Type: 4800/4400MHz ECC DDR5 RDIMM | ||
| Memory Voltage | 1.1 V | |
| Error Detection | Yes | |
| On-Board Devices | ||
| SATA | SATA3 (6Gbps); RAID 0/1/5/10 support | |
| NVMe | NVMe | |
| Chipset | Intel® C741 | |
| Network Connectivity | 2x 1GbE BaseT with Intel® i210 | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Input / Output | ||
| SATA | 10 SATA (6Gbps) port(s) | |
| LAN | 1 RJ45 Dedicated IPMI LAN port | |
| 2 RJ45 1GbE LAN ports | ||
| USB | 4 USB 3.2 Gen 1 port(s) (2 headers; 2 rear) | |
| 3 USB 2.0 port(s) (2 rear; 1 Type A) | ||
| Video | 1 VGA port(s) | |
| Serial Port | 2 COM Port(s) (1 header; 1 rear) | |
| System BIOS | ||
| BIOS Type | AMI 32MB SPI Flash EEPROM | |
| Management | ||
| Software | NMI | |
| KVM with dedicated LAN | ||
| Redfish API | ||
| Intel® Node Manager | ||
| SUM | ||
| SSM | ||
| SPM | ||
| IPMI2.0 | ||
| Supemicro Out of Band (OOB) License (Included per Node) | ||
| SuperCloud Composer | ||
| Power Configurations | ACPI/APM Power Management | |
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory | |
| 8 Phase-switching voltage regulator | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 2U Rackmount | |
| Model | CSE-825B2TS-R920WP | |
| Dimensions and Weight | ||
| Height | 3.5" (89mm) | |
| Width | 17.2" (437mm) | |
| Depth | 25.5" (647mm) | |
| Package | 11" (H) x 26.5" (W) x 34" (D) | |
| Weight | Net Weight: 34 lbs (15.42 kg) | |
| Gross Weight: 59 lbs (26.76 kg) | ||
| Available Color | Black | |
| Front Panel | ||
| Buttons | System Reset | |
| Power On/Off | ||
| LEDs | Power status | |
| System information | ||
| Device Activity | ||
| LAN 1 Activity | ||
| LAN 2 Activity | ||
| Power Failure LED | ||
| Expansion Slots | ||
| PCI-Express (PCIe) | 2 PCIe 5.0 x8 LP slot(s) | |
| 2 PCIe 5.0 x16 FHFL slot(s) | ||
| Note | Default loadout. (For more configs, please contact sales) | |
| FH slots can be reconfigured with RSC-W2-688G5. Acronyms: (FH = Full Height, LP = Low Profile, FL = Full Length, HL = Half Length) | ||
| Drive Bays / Storage | ||
| Drive Bays | 8x 3.5" NVMe/SATA/SAS drive bays (4x 3.5" NVMe hybrid) | |
| M.2 | M-key, 2280, 22110 | |
| 1x PCIe 3.0 x 2 | ||
| Peripheral Bays | 2x 2.5" drive bays | |
| System Cooling | ||
| Fans | 3 heavy duty PWM 80x80x38mm Fan(s) | |
| Power Supply | ||
| Dimension (W x H x L) | 76 x 40 x 336 mm | |
| AC Input | 920W: 100-127Vac / 8.5A-11A / 50-60Hz | |
| 920W: 200-240Vac / 4.5A-5.5A / 50-60Hz | ||
| Output Type | Backplanes (gold finger) | |
| Certification | platinum Level | |
| Operating Environment | ||
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) | ||
| Operating Relative Humidity: 8% to 80% (non-condensing) | ||
| Non-operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X13SEW-F | 1 | Super X13SEW-F Motherboard | |
| Motherboard / Chassis | CSE-825B2TS-R0WNP | 1 | 2U Chassis | |
| Backplane | BPN-SAS4-825A-N4 | 1 | 8-Port Hybrid Backplane for 4xSAS4/SATA3 and 4xHybrid Device | |
| Cable | CBL-MCIO-1218M5-1 | 1 | MCIO x8 (STR to STR),18CM,85OHM,RoHS | |
| Cable | CBL-SAST-1261-100 | 1 | Slimline x8 (STR) to 2x Slimline x4 (STR),60/60CM,100 O | |
| Cable | CBL-0071L | 1 | ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF | |
| Cable | CBL-PWCD-0160-IS | 2 | PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH | |
| Cable | CBL-PWEX-1078 | 3 | PWEX,FAN,1X4/P2.5 TO 1X4/P2.54,20CM,22AWG,5A/PIN,RoHS | |
| Manual | MNL-2492-QRG | 1 | 521E-WR Quick Reference Guide | |
| Power Supply | PWS-1K03A-1R | 2 | 1U 1000W Redundant Power Supply Titanium W/PMbus 76x40x336mm,RoHS/REACH | |
| Riser Card | RSC-W2-66G5 | 1 | 2U LHS WIO Riser card with two PCIe 5.0 X16 slots,HF,Ro | |
| Riser Card | RSC-W2R-88G5 | 1 | 2U RHS WIO Riser card with two PCIe 5.0 X8 slots,HF,Ro | |
| Software | SFT-OOB-LIC | 1 | License key for enabling OOB BIOS management | |
| Heatsink / Retention | SNK-P0088P | 1 | 2U Passive CPU HS for X13 Intel Eagle Stream Platform | |
| *Power Distributor | PDB-PT825-8824 | 1 | SC825 24PIN REDUNDANT POWER DISTRIBUTOR | |
| *Fan | FAN-0206L4 | 3 | 80x80x38 mm, 13.5K RPM, Middle Cooling Fan for 2U and above Servers | |
| *Front Panel | FPB-FP836-D | 1 | Front control board Dual color LED(FP836-D)forSC823M,825,825M,828,829,835,836 | |
| *Drive Tray(s) | MCP-220-00023-01 | 1 | Black USB dummy tray support 1x 2.5" slim HDD for SC825, 836 | |
| *Drive Tray(s) | MCP-220-00075-0B | 8 | Black gen 5.5 hot-swap 3.5" HDD tray | |
| *Drive Tray(s) | MCP-220-82502-0B | 2 | Black fixed 3.5\" HDD tray or FDD dummy tray | |
| *Drive Tray(s) | MCP-290-82607-0N | 1 | 826B/216B rear dummy cover for 2 X 2.5 | |
| *Rear Window | MCP-240-82516-0N | 1 | SC825B2 WIO rear window for top load RSC bracket | |
| *Peripheral Drive | MCP-290-00007-01 | 1 | Black DVD dummy cover for SC825, 836 | |
| *Rail Set | MCP-290-00053-0N | 1 | Rail set, quick/quick, default for 2,3U 17.2"W | |
| *Rail Set | MCP-290-00060-0N | 1 | Threaded rail adapter default for round hole rack |
Note:
• Parts with * are inside the chassis
• Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| 2x 2.5" SATA/SAS Cage (Rear) | MCP-220-82616-0N • | 1 | Rear hot-swap 2x 2.5" SATA/SAS drive kit | |||
| 3.5" to 2.5" Converter Tray(s) | MCP-220-00043-0N • | 0 | Hot-swap Gen-4 3.5" to 2.5" HDD tray, Black | |||
| 3.5'' to 2.5" NVMe Drive Tray(s) | MCP-220-00138-0B • | 0 | Tool-less Hot-swap Gen-5.5 NVMe 3.5'' to 2.5'' drive tray, Orange tab, Black | |||
| CacheVault | BTR-CVPM05 + MCP-240-00203-0N (For S3908) | 1 | SuperCap mounting bracket for PCIe location | |||
| CacheVault | BTR-CVPM05 + MCP-240-00127-0N (For S3908) | 1 | SuperCap mounting bracket for internal fixed bay | |||
| DVD-ROM / DVD-RW | DVM-TEAC-DVDRW-SBT5 | $ 79.50 | 1 | PHILPS slim DVD-RW SATA drive | ||
| DVD-ROM / DVD-RW | DVM-TEAC-DVD-SBT5 | $ 70.50 | 1 | TEAC slim DVD-ROM SATA drive | ||
| DVD-ROM Accessory | MCP-220-81502-0N • | 1 | Slim SATA DVD mounting kit | |||
| Front Bezel | MCP-210-82503-0B • | 1 | Black Front Bezel | |||
| Intel VROC RAID Key for NVMe | AOC-VROCPREMOD • | 1 | Premium Upgrade module (Intel + 3rd party Vendor SSD); RAID 0/1/10/5 | |||
| Intel VROC RAID Key for NVMe | AOC-VROCSTNMOD | 1 | Standard Upgrade module (Intel + 3rd party Vendor SSD); RAID 0/1/10 | |||
| NVMe Cable (Drive Bay 0-1) | CBL-MCIO-1227M5 • | 1 | MCIO (x8 to x8) STR,27CM,85 OHM | |||
| NVMe Cable (Drive Bay 2-3) | CBL-MCIO-1260M5 • | 1 | MCIO (x8 to x8) STR,60CM,85 OHM | |||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) | |||
| Storage Control Card and Cable(s) | AOC-S3908L-H8iR-16DD | 1 | Standard LP, 8 internal ports (12Gb/s) PCIe 4.0 x8, 16HDD; RAID 0, 1, 5, 6, 10, 50, 60 | |||
| Storage Control Card and Cable(s) (HBA) | AOC-S3808L-L8IT | $ 405.50 | 1 | Standard LP, 8 internal ports (12Gb/s) PCIe 4.0 x8, 122HDD; HBA | ||
| TPM | AOM-TPM-9670V-S-O | 1 | TPM 2.0, vertical form factor, provisioned for server | |||
| WIO Riser Card | RSC-W2-688G5 | $ 95.00 | 1 | 2U LHS WIO Riser card with 1x (PCIe 5.0 x16) and 2x (PCIe 5.0 x8) slots |
