• Flow control; Port mirroring
• 10GbE Low Latency Switch
• Access Control Lists (to 4K)
• Switch access password protection

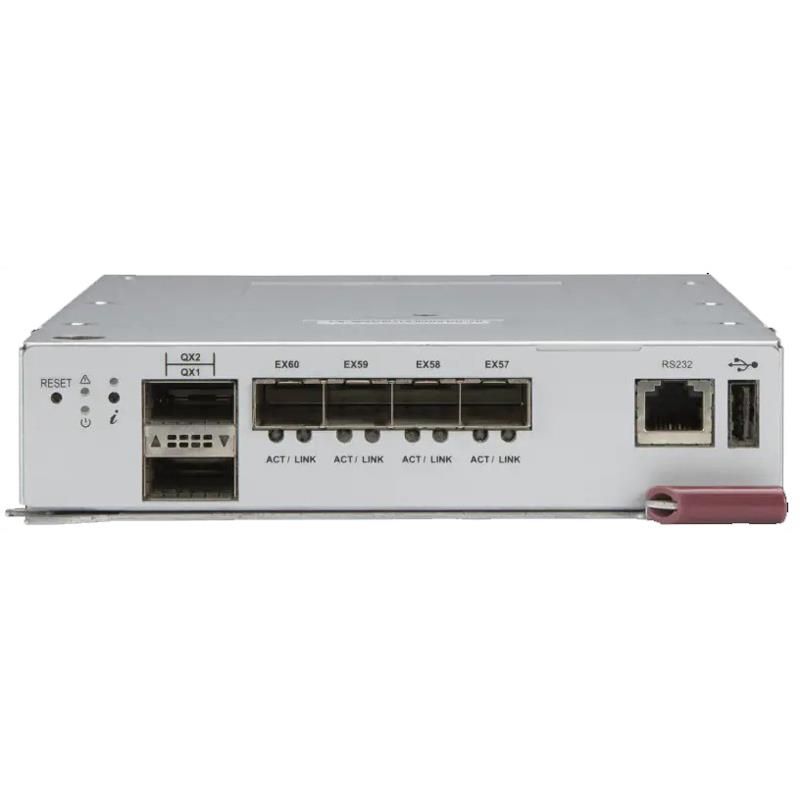

Broadcom 10GbE Switch for MicroBlade - Low Latency Switch, 2x 40G QSFP or 4x 10Gbps SFP+ uplinks, 56x 10Gbps or 1Gbps downlinks, 1 Console Port, 1 USB Port
• 1 USB port
• 1 Console port
• 56x 10Gbps or 1Gbps downlinks
• 2x 40Gbps QSFP or 4x 10Gbps SFP+ uplinks
• Broadcom BCM56846 10GbE Low Latency Switch
| Main Specifications | ||
| Device Type | MicroBlade Switch | |
| Dimensions (WxDxH) | 267mm x 159mm x 36mm (10.5" x 6.25" x 1.4") | |
| Weight | 3.2lbs/1.5kg | |
| Capacity | 1280Gbps | |
| Miscellaneous | ||
| Features | Physical Layer Features: Jumbo frames up to 9KB | |
| Physical Layer Features: 40 gigabit optical/copper | ||
| Physical Layer Features: 10 gigabit optical Ethernet SFP+/copper | ||
| Layer 2 Features: 4K VLANS | ||
| Layer 2 Features: Spanning Tree (802.1D) | ||
| Layer 2 Features: Rapid Spanning Tree (802.1w) | ||
| Layer 2 Features: Multiple Spanning Trees (802.1s) | ||
| Layer 2 Features: IEEE 802.lQ VLANs/ port-based VLANs | ||
| Layer 2 Features: IEEE 802.3ad with LACF | ||
| Layer 2 Features: IEEE 802.1AB Link Layer Discovery Protocol (LLDP) | ||
| Advanced Layer 2 Features: Storm control, Flow control, Port mirroring | ||
| Other Features: IP Source Guard, VRRP | ||
| Security Features: Switch access password protection | ||
| Security Features: RADIUS and TACACS+ Authentication | ||
| Security Features: Access Control Lists (to 4K) | ||
| Security Features: SSH, SSL Encryption | ||
| Expansion / Connectivity | ||
| Connections | 1 Console port | |
| 1 USB port | ||
| 2x 40Gbps QSFP or 4x 10Gbps SFP+ uplinks | ||
| 56x 10Gbps or 1Gbps downlinks | ||
| Management | ||
| Management | XML-RPC, Industry Standard CLI, SNMP v1/v2/v3, SSH, Syslog, DHCP (Client), Web-based management interface - (future), NTP, RMON | |
| Multicast | ||
| Multicast | IGMP Snooping | |
