- Supermicro SYS-1018D-FRN8T 1U Barebone Embedded Intel Xeon D-1587 Processor

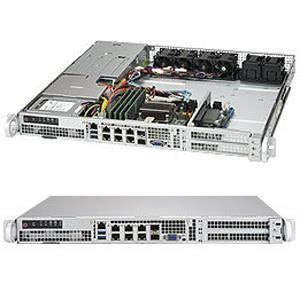

Supermicro SYS-1018D-FRN8T 1U Barebone Embedded Intel Xeon D-1587 Processor
• Network Security Appliance
• Firewall Applications
• Virtualization
• SD-WAN, vCPE
• 7 year life cycle
Barebone 1U Rackmount SuperServer, Embedded Intel Xeon D-1587 Processor, 1.70GHz 16-Core/32 Thread. Supports up to 128GB DDR4 ECC RDIMM in 4 sockets - System-On-Chip, On-Board: SoC controller for SATA3 (6Gbps) ports, 2x 10G SFP+ and 6x Gigabit Ethernet, IPMI 2.0, VGA - Includes: 1x 3.5in or 4x 2.5in fixed drive bays, 1x PCIe 3.0 x8 slot (FH, FL) M.2 PCIe 3.0 x4, Key 2242/2280/ 22110, Mini-PCIe with mSATA support, 400W Redundant 80 Plus Platinum Certified Power Supply (2x PWS-407P-1R), MBD-X10SDV-7TP8F Motherboard, SC515-R407 1U Chassis (Black)
This product is no longer available.
1. Intel® Xeon® processor D-1587, Single socket FCBGA 1667; 16-Core, 32 Threads, 65W
2. 4x 2.5" drive bays
3. 1x PCIe 3.0 x8 slot (FH, FL), M.2 PCIe 3.0 x4, M Key 2242/2280/ 22110, Mini-PCIe with mSATA support
4. Up to 128GB ECC RDIMM DDR4 2133MHz or 64GB ECC/non-ECC UDIMM in 4 sockets
5. Dual 10G SFP+ and Six 1GbE LAN
6. I/O: 2x USB 3.0, VGA
7. 4x 40x56mm cooling fans, up to 13K RPM
8. DOM power connector
9. 400W redundant power supplies Platinum Level Certified
Extra Specifications for Supermicro SYS-1018D-FRN8T 1U Barebone Embedded Intel Xeon D-1587 Processor
| Motherboard | ||
| Motherboard | Super X10SDV-7TP8F | |
| Processor/Cache | ||
| CPU | FCBGA 1667 | |
| Intel® Xeon® processor D-1587 , 1.7GHz-2.3GHz, CPU TDP support 65W | ||
| Cores / Cache | 16 Cores, 32 Threads / 24MB | |
| System Memory | ||
| Memory Capacity | 4x DDR4 DIMM sockets | |
| Supports up to 128GB DDR4 ECC RDIMM | ||
| Supports up to 64GB DDR4 ECC/non-ECC UDIMM | ||
| Memory Type | 2133/1866/1600MHz ECC DDR4 ECC RDIMM and ECC/Non-ECC UDIMM | |
| DIMM Sizes | 32GB, 16GB, 8GB, 4GB | |
| Memory Voltage | 1.2 V | |
| Error Detection | Corrects single-bit errors | |
| Detects double-bit errors (using ECC memory) | ||
| On-Board Devices | ||
| SATA | SoC controller for SATA3 (6Gbps) ports | |
| Network Controllers | Quad 1GbE with Intel I350-AM4 | |
| Dual 10G SFP+ from D-1500 SoC | ||
| Dual 1GbE with Intel I210 | ||
| IPMI | IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | |
| Dedicated RJ45 IPMI LAN port | ||
| Graphics | BMC integrated ASPEED AST2400 | |
| Input / Output | ||
| SATA | 4x SATA3 (6Gbps) ports | |
| LAN | 1x RJ45 Dedicated IPMI LAN port | |
| 2x 10G SFP+ ports | ||
| 6x RJ45 Gigabit Ethernet LAN ports | ||
| USB | 2x USB 3.0 ports (rear) | |
| DOM | 1x SATA DOM (Disk on Module) power connector | |
| VGA | 1x VGA Port | |
| Others | TPM 1.2 header | |
| Chassis | ||
| Form Factor | 1U Rackmount | |
| Model | CSE-515-R407 | |
| Dimensions and Weight | ||
| Height | 1.7" (43mm) | |
| Width | 17.2" (437mm) | |
| Depth | 16.9" (429mm) | |
| Weight | Gross Weight: 12 lbs (5.44 kg) | |
| Net Weight: 8 lbs (3.63 kg) | ||
| Available Colors | Silver | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset button | ||
| LEDs | Power LED | |
| System Information LED | ||
| Information LED (temp., status) | ||
| Hard drive activity LED | ||
| 2x Network activity LEDs | ||
| Expansion Slots | ||
| PCI-E | 1x PCIe 3.0 x8 slots | |
| M.2 PCIe 3.0 x4, M Key 2242/2280/22110 | ||
| Mini-PCIe with mSATA support | ||
| Drive Bays | ||
| HDD | 4x 2.5" fixed drive bays | |
| System Cooling | ||
| Fans | Passive Heatsink, 40mm chassis fan | |
| AC/DC240V Input Redundant Power Supplies | ||
| AC/DC240V Input Redundant Power Supplies | 400W 1U Redundant Power Supplies with PMbus | |
| Total Output Power | 400W | |
| Dimension (W x H x L) | 54.5 x 40 x 220 mm | |
| Input | 100 - 240Vac / 6.0 - 3.0A / 50-60Hz | |
| 200 - 240Vdc / 3.4 - 3.2A (CCC Only) | ||
| +12V | Max: 33A / Min: 0.5A | |
| +5V sb | Max: 3A / Min: 0A | |
| Output Type | Gold Finger Connector Mating with Molex 45984-4343 | |
| Certification | Platinum Level Certified | |
| System BIOS | ||
| BIOS Type | 128Mb SPI Flash with AMI BIOS | |
| BIOS Features | UEFI 2.4 | |
| ACPI 5.0 | ||
| USB Keyboard support | ||
| RTC (Real Time Clock) Wakeup | ||
| PCI 3.0 | ||
| Hardware BIOS Virus protection | ||
| SMBIOS 2.8 | ||
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Operating Temperature: 0°C to 40°C (32°F to 104°F) | ||
| Product SKUs | ||
| Product SKUs | SuperServer 1018D-FRN8T (Silver) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X10SDV-7TP8F | 1 | Super X10SDV-7TP8F Motherboard | |
| Motherboard / Chassis | CSE-515-R407 | 1 | 1U Chassis | |
| Air Shroud | MCP-310-51502-0B | 1 | Mylar airshroud for SC515 with X10SDV | |
| Cable 1 | CBL-0082L | 2 | Y split , big 4 pin to two RA SATA power extension 15cm, 18AWG | |
| Cable 2 | CBL-0228L | 2 | SATA,INT,ROUND,ST-RA,55CM,26AWG | |
| Cable 3 | CBL-0296L | 4 | 4 pin to 4 pin fan extension cord, for PWM fan. 23cm. 24AWG | |
| Cable 4 | CBL-0234L | 1 | 4-PIN POWER SUPPLY Y-CABLE FOR HDD, 15CM, 20AWG | |
| Parts | MCP-260-00099-0N | 1 | 1U I/O Shield for A2SDi-TP8F with EMI Gasket | |
| Riser Card | RSC-RR1U-E8 | 1 | RSC-RR1U-E8 | |
| Power Supply | PWS-407P-1R | 2 | AC and DC 240V Input, 400W, Platinum Level, Redundancy power supply meet PMBus Revision 1.2 requirement,RoHS/REACH |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Fan(s) | FAN-0157L4 | $ 31.00 | 0 | 40x40x56 mm 13K-11K RPM Counter-rotating Fan w/ a 160-mm Wire Coming out from the Fan Inlet Side,RoHS/REACH | ||
| HDD Bracket | MCP-220-00044-0N | $ 18.00 | 0 | Retention Bracket for up to 2x 2.5" HDD | ||
| HDD Bracket | MCP-220-00051-0N | $ 19.50 | 0 | Retention Bracket for 1 x 2.5" HDD | ||
| SuperDOM | - | 0 | Supermicro SATA DOM Solutions [Details] |
