  3. Supermicro PWS-407P-1R 1U 400W Redundant 80 Plus Platinum AC-DC Power Supply

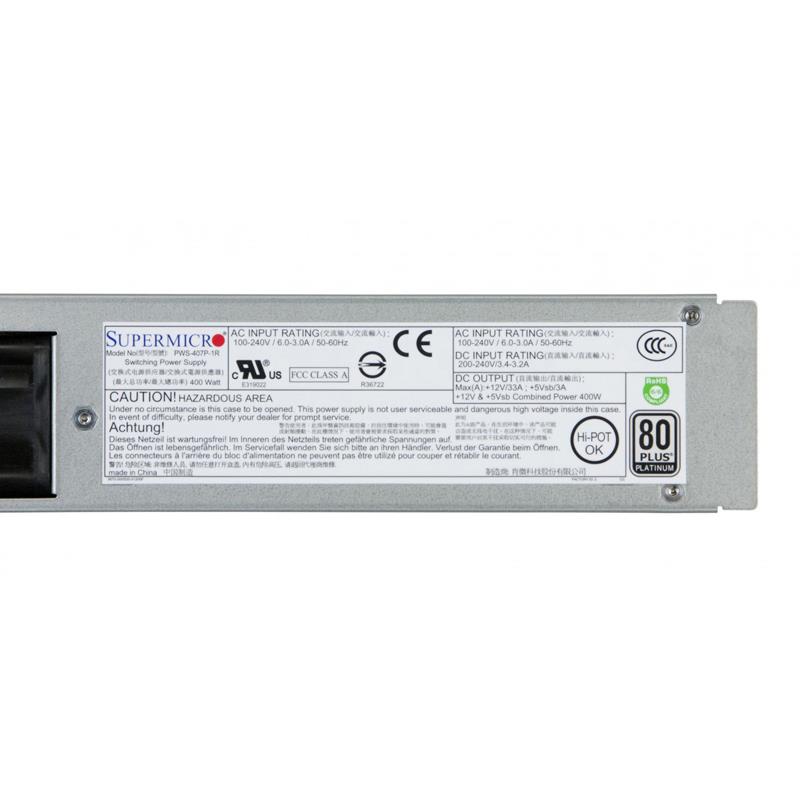

Supermicro PWS-407P-1R 1U 400W Redundant 80 Plus Platinum AC-DC Power Supply
Power Supply 400W Redundant 80 Plus Platinum Level - AC and DC 240V Input
Power Supply 400W Redundant 80 Plus Platinum Level - AC and DC 240V Input

Supermicro PWS-407P-1R 1U 400W Redundant 80 Plus Platinum AC-DC Power Supply

• Comply with RoHS requirements
• Designed for Supermicro 1U Server
• 80 Plus Platinum level redundant power supply
• Capable of 400W output power at 94% efficiency

Power Supply 400W Redundant 80 Plus Platinum Level - AC and DC 240V Input - PMBus Revision 1.2 requirement, RoHS/REACH

$ 275.50$ 275.50275.5USD

$ 275.50

Option not available

InStock
2 lb

    This combination does not exist.

    Add to Cart

    • The Supermicro PWS-407P-1R is an 80 Plus Platinum level redundant power supply capable of supplying 400W output power at 94% efficiency.

    • Enjoy the simplicity of active power factor correction (PFC) and automatically correct AC input for a full range of voltages.

    • Features a card edge connector for connection with the backplane of compatible Supermicro 1U systems.

    • This power supply is designed to not only provide you reliable power to your Supermicro server but also protect it from over-voltage, over-current, nd short-circuiting via protective circuitry embedded into the unit.

    • Rest easy knowing your hardware will be up and running with a mean-time between failure (MTBF) of greater than 100,000 hours and an LED indicator to keep you informed on normal/abnormal conditions for your PSU.

    • This power supply is redundant to safeguard your system from power failure and allows for hot-swap replacement to eliminate system downtime.

    • All materials contained comply with RoHS requirements and are certified by Supermicro.

    Extra Specifications for Supermicro PWS-407P-1R 1U 400W Redundant 80 Plus Platinum AC-DC Power Supply

    Main Specifications
    Device TypePower Supply with PMBus and I2C
    Form Factor1U - Internal
    Dimensions (WxDxH)54.5(W)*220(L)X40(H) mm
    Power Supply
    +12V33 Amp
    +5V3 Amp
    Power Supply400W
    Certification80 Plus Platinum
    Miscellaneous
    FeaturesRedundant
    Compatible ServersAS-1013S-MTR, SSG-5019D8-TR12P, SYS-1018D-FRN8T, SYS-1018R-WR, SYS-1019D-12C-FRN5TP, SYS-1019D-14C-FRN5TP, SYS-1019D-16C-FRN5TP, SYS-1019D-FRN5TP, SYS-1019D-FRN8TP, SYS-1019S-M2, SYS-1019S-WR, SYS-5018D-MHR7N4P, SYS-5018R-MR, SYS-5019C-MR, SYS-5019P-MR, SYS-5019P-MTR, SYS-5019S-MR, SYS-5019S-MR-G1585L
    Power Efficiency
    Energy Efficient94% Peak

    Warranty:3 years labor, 1 year parts, 120 days advance replacement (doa)
    Coverage:Replacement or repair
    Average Service Time:Overnight replacement for 120 days, 2 weeks afterward
    E-mail:returnservices@wiredzone.com

    If you need Technical Support for this item please contact:

    Provider:Supermicro
    Type of Support:FULL
    Phone No.:408-503-8000
    URL:Click here for Manufacturer Website
