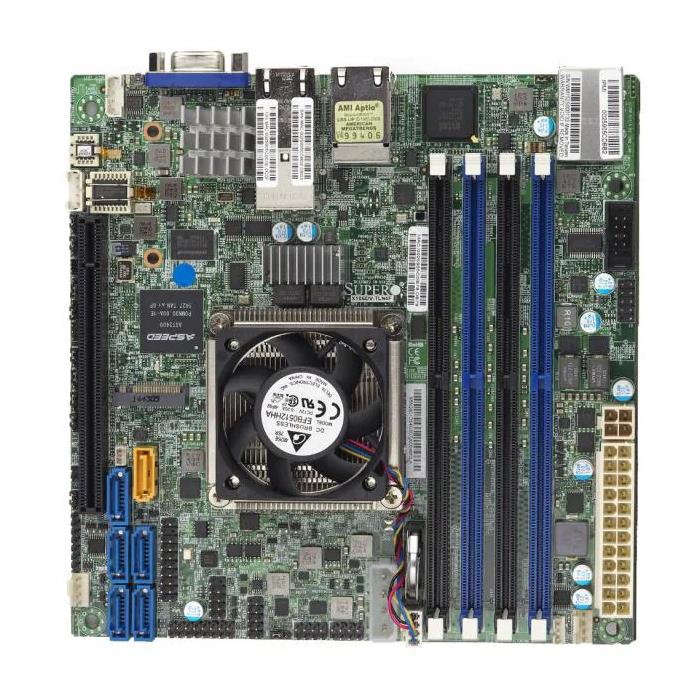

Supermicro X10SDV-4C+-TLN4F Motherboard Mini-ITX SoC w/ Intel Xeon D-1518 4-Core, Single Socket FCBGA 1667

• Intel Xeon processor D-1518; 4-Core
• 12V DC input and ATX Power Source
• Dual 10GbE LAN and dual 1GbE LAN
• SuperDOM; GPIO and SMbus headers

Motherboard Mini-ITX SoC w/ Intel Xeon D-1518 4-Core, Single Socket FCBGA 1667 - Supports up to 128GB DDR4 ECC RDIMM, up to 2133MHz (4x DDR4 DIMM sockets) - On-board : SATA3 (6Gbps) ports via SoC (RAID 0,1,5,10 RSTe), 2x 10GBase-T LAN via SoC, 2x Gigabit Ethernet via Intel i350-AM2, IPMI 2.0, VGA, TPM Header, 1x SuperDOM (Disk on Module) power connector - MBD-X10SDV-4C+-TLN4F-O - optimized for SC505-203B / SC504-203B 1U Chassis - (Retail Box)


    511.50511.50511.5USD

    511.50

    Option not available

    FREE SHIPPING

    This combination does not exist.

    Add to Cart


    • 6x SATA3 (6Gbps) ports via SoC
    • Dual 10GbE LAN and dual 1GbE LAN
    • 12V DC input and ATX Power Source
    • 2x USB 3.0 ports (rear); 4x USB 2.0 ports (via headers)
    • 1x SuperDOM, 1x COM, TPM header, GPIO and SMbus headers
    • Expansion slot: 1x PCIe 3.0 x16 M.2 PCIe 3.0 x4, M Key 2242/2280
    • Intel Xeon processor D-1518, Single socket FCBGA 1667; 4-Core, 8 Threads, 35W
    • Up to 128GB ECC RDIMM DDR4 2133MHz or 64GB ECC/non-ECC UDIMM in 4 sockets

    Extra Specifications for Supermicro X10SDV-4C+-TLN4F Motherboard Mini-ITX SoC w/ Intel Xeon D-1518 4-Core, Single Socket FCBGA 1667

    Main Specifications
    Device Type Xeon Board
    Dimensions (WxDxH) 6.7" x 6.7", (17cm x 17cm)
    Form Factor Mini-ITX
    Processor
    Installed Brand Intel® Xeon® processor D-1518, 2.2GHz, CPU TDP support 35W, 4 Cores, 8 Threads / 6MB
    Processor Sockets FCBGA 1667
    System Memory
    DIMM Sizes 32GB, 16GB, 8GB, 4GB
    Error Detection Corrects single-bit errors, Detects double-bit errors (using ECC memory)
    Memory Capacity 4x DDR4 DIMM sockets
      Supports up to 128GB DDR4 ECC RDIMM
      Supports up to 64GB DDR4 ECC/non-ECC UDIMM
    Memory Type 2133/1866/1600MHz ECC DDR4 ECC RDIMM and ECC/Non-ECC UDIMM
    Memory Voltage 1.2 V
    On-Board Devices
    Chipset System on Chip
    IPMI Support for Intelligent Platform Management Interface v.2.0
      IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    Network Controllers Dual LAN via SoC 10GBase-T
      Virtual Machine Device Queues reduce I/O overhead
      Supports 10GBASE-T and 1000BASE-T, RJ45 output
      1x Realtek RTL8201N PHY (dedicated IPMI)
      Dual LAN via Intel® i350-AM2 Gigabit Ethernet
    SATA SoC controller for 6 SATA3 (6Gbps) ports, RAID 0,1,5,10 RSTe
    TPM TPM header
    Video Aspeed AST2400
    Input / Output
    DOM 1x SuperDOM (Disk on Module) power connector
    LAN 2x RJ45 10GBase-T ports
      2x RJ45 Gigabit Ethernet LAN ports
      1x RJ45 Dedicated IPMI LAN port
    SATA 6x SATA3 (6Gbps) ports
    Serial Port / Headers 1x COM port (header)
    USB 2x USB 3.0 ports (rear), 4x USB 2.0 ports (via headers)
    VGA 1x VGA port
    Environmental Standards
    Operating Temperature 0°C - 60°C (32°F - 140°F)
    Expansion / Connectivity
    Expansion Slots Total (Free) 1x PCIe 3.0 x16 slot
      M.2 PCIe 3.0 x4, M Key 2242/2280
    System BIOS
    BIOS Features PCI 3.0, ACPI 5.0, USB Keyboard support, Hardware BIOS Virus protection, SMBIOS 2.8, UEFI 2.4, RTC (Real Time Clock) Wakeup
    BIOS Type 128Mb SPI Flash with AMI BIOS
    Management
    Power Configurations ACPI / APM Power Management
      CPU Fan auto-off in sleep mode
      Power-on mode for AC power recovery
    Software IPMI 2.0, KVM with dedicated LAN, NMI, SUM, SuperDoctor® 5, Watch Dog
    Parts List
    I/O Cables 2x CBL-0044L
    I/O Shield 1x MCP-260-00084-0N
    Motherboard 1x MBD-X10SDV-4C+-TLN4F
